DTC P0335-62: Crankshaft Position Sensor "A" Signal Compare Failure [11/2016 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine / Trouble Codes.

   Powertrain > Engine > Trouble Codes

5. Read the DTCs.

   Result

   Result	Proceed to
   SFI system DTCs are not output	A
   SFI system crankshaft position sensor circuit DTC is output	B

Result:  2

B

GO TO SFI SYSTEM. Refer to  DIAGNOSTIC TROUBLE CODE CHART [11/2016 - 10/2017]  Refer to  DIAGNOSTIC TROUBLE CODE CHART [10/2017 - ]

Result:  1

A

See step  2

1. Connect the Techstream to the DLC3
2. Start the engine.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Stop and Start / Data List / Engine Speed.

   Powertrain > Stop and Start > Data List

   Tester Display
   Engine Speed

5. According to the display on the Techstream, read the Data List.

   OK

   Engine speed signal is input (the speeds displayed on the tachometer and the Techstream are almost the same).

   Result

   Proceed to
   OK
   NG

Result:  1

OK

USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2016 - ]

Result:  2

NG

See step  3

1. Disconnect the engine stop and start ECU connector.
2. Disconnect the ECM connector.
3. Disconnect the certification ECU (smart key ECU assembly) connector. (w/ Smart Key System)
4. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A92-10 (NE) - A43-30 (NEO)	Always	Below 1 Ω
   A92-10 (NE) or A43-30 (NEO) - Body ground and other terminals	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  1

OK

See step  4

1. Disconnect the engine stop and start ECU connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A92-6 (DGND) - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  1

OK

See step  5

1. Start the engine and warm it up.
2. Connect an oscilloscope to the NE and DGND terminals of the engine stop and start ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

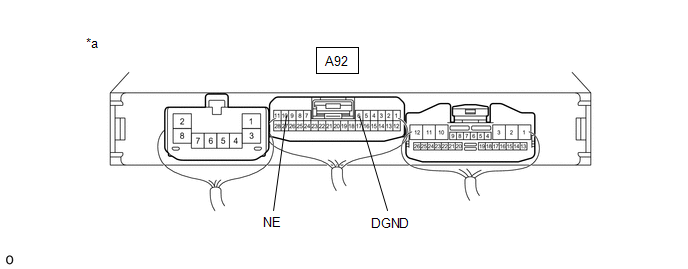

   Component with harness connected (Engine Stop and Start ECU)

   -

   -

3. Check the signal waveform according to the condition(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Item	Condition
   Tester Connection	A92-10 (NE) - A92-6 (DGND)
   Tool Setting	5 V/DIV., 2 ms./DIV.
   Condition	Idling after engine warmed up

   Result

   Result	Proceed to
   Pulse generation (See waveform)	A
   Stuck at 0 to 1.5 V	B
   Stuck at 8 to 14 V	C

Result:  1

A

REPLACE ENGINE STOP AND START ECU. Refer to  REMOVAL [11/2016 - ]

Result:  4

C

GO TO SFI SYSTEM. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2016 - ]

Result:  6

B

See step  6

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the ECM connector.
2. Turn the ignition switch to ON.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   A92-10 (NE) - A92-6 (DGND)	Ignition switch ON	8 to 14 V

   HINT:

   DTCs may be stored during this inspection. Check for DTCs and clear them using the Techstream.

   Result

   Proceed to
   OK
   NG

Result:  1

OK

GO TO SFI SYSTEM. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2016 - ]

Result:  2

NG

REPLACE ENGINE STOP AND START ECU. Refer to  REMOVAL [11/2016 - ]
