Removal [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notices before proceeding with work.

    Refer to PRECAUTION [11/2016 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [11/2016 - ]

  3. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [11/2016 - ]

  4. REMOVE FRONT BUMPER ENERGY ABSORBER

    Refer to PROCEDURE - Step 20

  5. REMOVE FRONT BUMPER REINFORCEMENT

    Refer to PROCEDURE - Step 21

  6. REMOVE ECO RUN VEHICLE CONVERTER ASSEMBLY
    1. Move the lock lever as shown in the illustration and disconnect the eco run vehicle converter assembly connector.
      GTY739100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock Lever

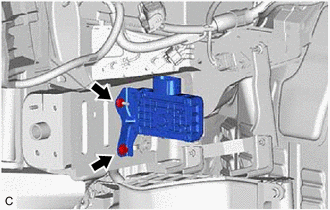

    2. Remove the bolt, nut and eco run vehicle converter assembly.
      GTY727923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 1 CONVERTER CONTROL BRACKET
    1. Remove the 2 bolts and No. 1 converter control bracket from the eco run vehicle converter assembly.
      GTY711927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
