Installation [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 1 CONVERTER CONTROL BRACKET
    1. Install the No. 1 converter control bracket to the eco run vehicle converter assembly with the 2 bolts.
  2. INSTALL ECO RUN VEHICLE CONVERTER ASSEMBLY
    1. Install the eco run vehicle converter assembly with the bolt and nut.

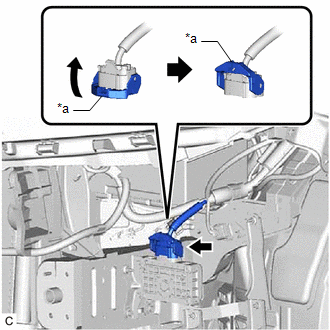

    2. Connect the eco run vehicle converter assembly connector and move the lock lever as shown in the illustration to lock the connector.
      GTY696101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock Lever
  3. INSTALL FRONT BUMPER REINFORCEMENT

    Refer to PROCEDURE - Step 3

  4. INSTALL FRONT BUMPER ENERGY ABSORBER

    Refer to PROCEDURE - Step 4

  5. INSTALL FRONT BUMPER ASSEMBLY

    Refer to INSTALLATION [11/2016 - ]

  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [11/2016 - ]
