Replacement [12/2013 - ]: Procedure

Refer to REMOVAL [12/2013 - ]

1. Using a 10 mm hexagon wrench, remove the differential inspection plug and gasket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Using a 10 mm hexagon wrench, remove the rear differential drain plug and gasket to drain the differential oil.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Using a 10 mm hexagon wrench, install a new gasket and the rear differential drain plug.

   Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf)

4. Using a 10 mm hexagon wrench, temporarily install the differential inspection plug.

   HINT:

   Add differential oil before installing a new gasket and fully installing the differential inspection plug.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 4

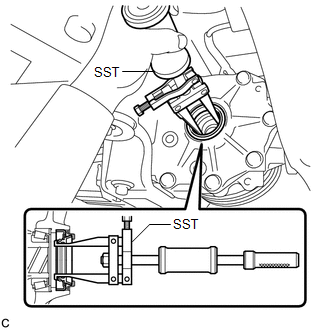

1. Using SST, remove the rear drive shaft oil seal from the rear differential carrier assembly.
   • SST: 09308-00010

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

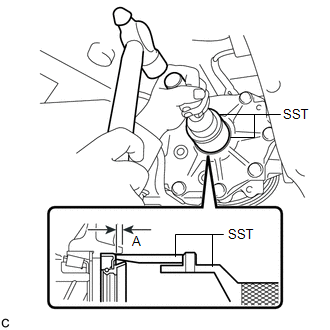

1. Using SST and a hammer, install a new rear drive shaft oil seal into the rear differential carrier assembly.
   • SST: 09223-4601109631-32020

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Distance (A)

   8.2 to 8.8 mm (0.323 to 0.346 in.)

   NOTE:

   • Install the rear drive shaft oil seal uniformly so that it is driven in straight.
   • Do not excessively tap in the rear drive shaft oil seal.
2. Apply a light coat of MP grease to the lip of the new rear drive shaft oil seal.

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 2

1. Using a 10 mm hexagon wrench, remove the differential inspection plug.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Add differential oil.

   See step  3

See step  4

See step  5

See step  2
