Removal [12/2012 - ]: Procedure

  1. DRAIN TRANSFER OIL

    See step  1

  2. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY

    Refer to REMOVAL [12/2012 - 08/2017] Refer to REMOVAL [08/2017 - ]

  3. REMOVE REAR ENGINE MOUNTING BRACKET

    Refer to PROCEDURE - Step 34 Refer to PROCEDURE - Step 34

  4. REMOVE TRANSFER ASSEMBLY

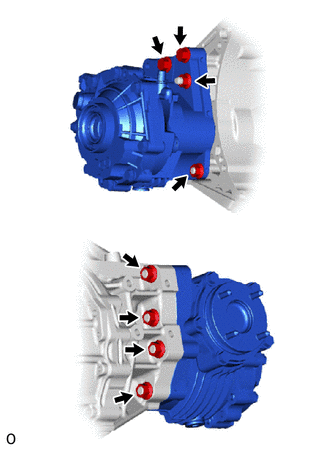

    1. GTY381761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 6 nuts, 2 bolts and transfer from the transaxle.

  5. REMOVE TRANSFER AND TRANSAXLE SETTING STUD BOLT

    Refer to PROCEDURE - Step 37 Refer to PROCEDURE - Step 37
