Home >> Toyota >> 2013 >> RAV4 LE, AWD >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Mechanical (2AR-FE) (Service Information) (1 Of 2) (Except Hybrid) >> Camshaft >> Installation [12/2012 - ] >> Procedure

Installation [12/2012 - ]: Procedure

  1. INSTALL NO. 2 CAMSHAFT BEARING

    Refer to PROCEDURE - Step 18 [12/2012 - 08/2017] , or refer to PROCEDURE - Step 18 [08/2017 - ]

  2. INSTALL NO. 1 CAMSHAFT BEARING

    Refer to PROCEDURE - Step 17 [12/2012 - 08/2017] , or refer to PROCEDURE - Step 17 [08/2017 - ]

  3. INSTALL OIL CONTROL VALVE FILTER

    Refer to PROCEDURE - Step 19 [12/2012 - 08/2017] , or refer to PROCEDURE - Step 19 [08/2017 - ]

  4. INSTALL CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY

    HINT:

    Perform "Inspection After Repairs" after replacing the camshaft timing exhaust gear assembly.

    Refer to INITIALIZATION [12/2012 - ]

    1. Align and attach the knock pin of the No. 2 camshaft with the knock pin hole of the camshaft timing exhaust gear assembly.
      GTY368255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Knock Pin Hole
      *2 Knock Pin
    2. Check that there is no clearance between the camshaft timing exhaust gear assembly and camshaft flange.
      GTY363937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Camshaft Timing Exhaust Gear
      *2 Clearance
      *3 Camshaft Flange
      *a INCORRECT
      *b CORRECT
      *c No Clearance
    3. Fix the camshaft timing exhaust gear assembly with the bolt.
      GTY366606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 85 N*m (867 kgf*cm, 63 ft.*lbf)

      NOTE:

      Do not disassemble the camshaft timing exhaust gear.

  5. SET NO. 1 CYLINDER TO TDC/COMPRESSION

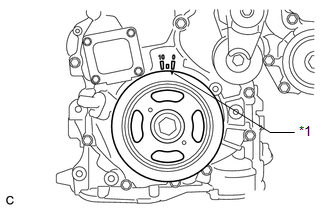

    1. Turn the crankshaft pulley until its timing notch (groove) and the timing mark "0" of the timing chain cover are aligned.
      GTY378700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Timing Notch (Groove)
  6. INSTALL NO. 2 CAMSHAFT

    HINT:

    Perform "Inspection After Repairs" after replacing the No. 2 camshaft.

    Refer to INITIALIZATION [12/2012 - ]

    1. Make sure that the valve rocker arms are installed as shown in the illustration.
      GTY365027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Valve Rocker Arm
      *2 Valve Lash Adjuster
      *3 Valve Stem Cap
    2. Clean the camshaft journals.
    3. Apply a light coat of engine oil to the camshaft journals, camshaft housings and camshaft bearing caps.

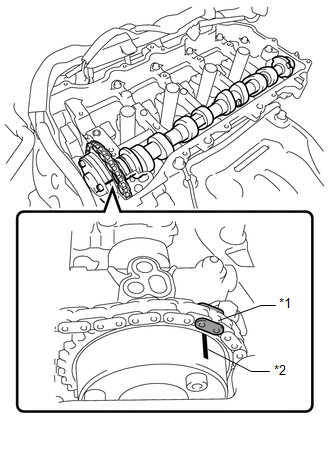

    4. Hold up the chain and align the matchmark and the paint mark and install the No. 2 camshaft.
      GTY367750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Paint Mark
      *2 Matchmark
  7. INSTALL CAMSHAFT

    HINT:

    Perform "Inspection After Repairs" after replacing the camshaft.

    Refer to INITIALIZATION [12/2012 - ]

    1. Make sure that the valve rocker arms are installed as shown in the illustration.
      GTY365027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Valve Rocker Arm
      *2 Valve Lash Adjuster
      *3 Valve Stem Cap
    2. Clean the camshaft journals.
    3. Apply a light coat of engine oil to the camshaft journals, camshaft housings and camshaft bearing caps.

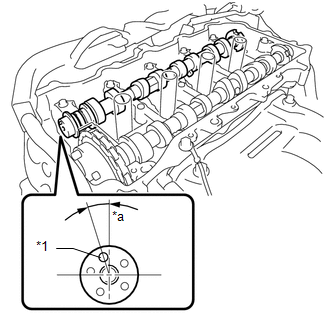

    4. Install the camshaft to the camshaft housing as shown in the illustration.
      GTY383642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Knock Pin
      *a Approximately 17°
  8. INSTALL CAMSHAFT BEARING CAP
    1. Confirm the marks and numbers on the camshaft bearing caps and place them in their proper positions and directions.
      GTY292210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

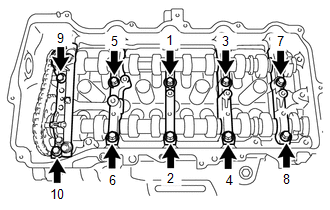

    2. Using several steps, uniformly tighten the 10 bearing cap bolts in the sequence shown in the illustration.

      Torque: 27 N*m (275 kgf*cm, 20 ft.*lbf)

      Fig 1: Camshaft Bearing Caps Bolt Tightening Sequence (1 Of 2)
      GTY364573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

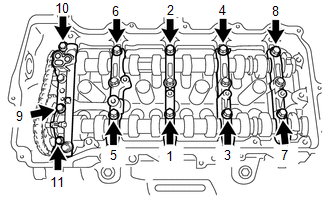

    3. Using several steps, uniformly tighten the 11 bearing cap bolts in the sequence shown in the illustration.

      Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

      Fig 2: Camshaft Bearing Caps Bolt Tightening Sequence (2 Of 2)
      GTY372929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Check the torque of each bearing cap bolt again.
  9. INSTALL CAMSHAFT TIMING GEAR ASSEMBLY

    HINT:

    Perform "Inspection After Repairs" after replacing the camshaft timing gear assembly.

    Refer to INITIALIZATION [12/2012 - ]

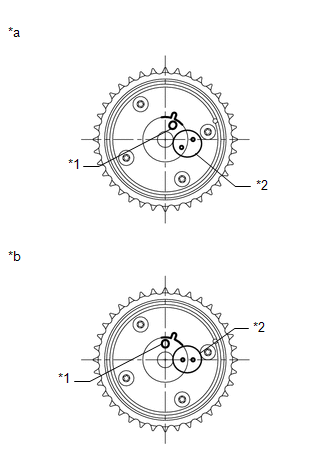

    1. Check the camshaft timing gear position.
      GTY367543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Knock Pin Hole
      *2 Alignment Mark
      *a Advanced Position
      *b Retarded Position
      NOTE:
      • If the camshaft timing gear is set to the advanced position, do not let the camshaft timing gear rotate clockwise during installation.
      • If the camshaft timing gear has rotated to the most retarded position, make sure to release the lock pin and set the camshaft timing gear to the most advanced position before tightening the camshaft timing gear.

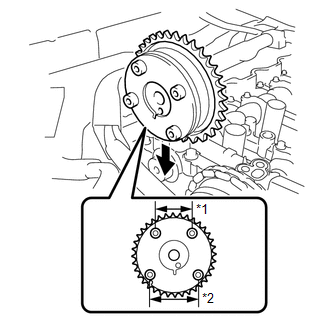

    2. Install the camshaft timing gear as shown in the illustration.
      GTY367390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Narrow
      *2 Wide

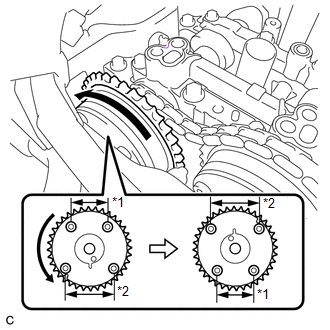

    3. Turn the camshaft timing gear approximately 180° counterclockwise.
      GTY376021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Narrow
      *2 Wide

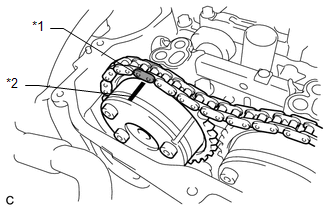

    4. Align the paint mark with the matchmark to install the chain.
      GTY367387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Paint Mark
      *2 Matchmark
    5. Align and attach the knock pin of the camshaft with the knock pin hole of the camshaft timing gear.
      GTY378805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Knock Pin Hole
      *2 Knock Pin
    6. Check that there is no clearance between the camshaft timing gear and camshaft flange.
      GTY363934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Camshaft Timing Gear
      *2 Clearance
      *3 Camshaft Flange
      *a INCORRECT
      *b CORRECT
      *c No Clearance
    7. Secure the camshaft in place by hand, and then install the installation bolt of the camshaft timing gear by hand.
      NOTE:

      Do not use any tools to install the bolt. If the bolt is installed using a tool, the lock pin will be damaged.

    8. If the lock pin has not been released, release it.

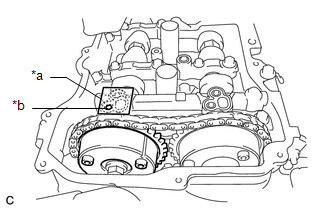

      1. After cleaning and degreasing the intake side VVT oil hole on the camshaft bearing cap, completely seal the oil hole with adhesive tape or equivalent as shown in the illustration to prevent air from leaking.
        GTY372713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Adhesive Tape Sealing Area
        *b Make a Hole
        NOTE:

        Be sure to seal the oil hole completely because air leaks due to insufficient sealing will prevent the lock pin from being released.

      2. Make a hole in the adhesive tape covering the oil hole as shown in the illustration. (Procedure A)
      3. Apply approximately 200 kPa (2.0 kgf/ cm2 , 29 psi) of air pressure to the hole made in procedure A to release the lock pin.
        GTY290869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:
        • If air leaks out, reattach the adhesive tape.
        • Cover the oil hole with a piece of cloth when applying air pressure to prevent oil from spraying.
      4. Forcibly turn the camshaft timing gear in the advance direction (counterclockwise).

        HINT:

        Depending on the air pressure applied, the camshaft timing gear may turn in the advance direction without assistance by hand.

      5. Remove the adhesive tape from the camshaft bearing cap.

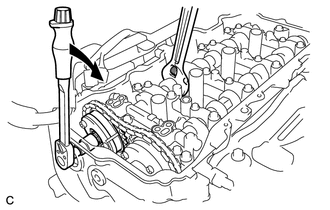

    9. Using a wrench to hold the hexagonal portion of the camshaft, install the bolt.
      GTY291365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 85 N*m (867 kgf*cm, 63 ft.*lbf)

      NOTE:

      Be careful not to damage the cylinder head or spark plug tube with the wrench.

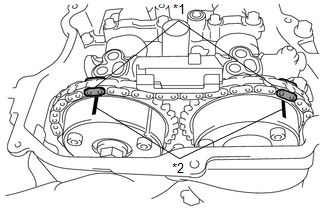

    10. Check that each matchmark of the camshaft timing gear and camshaft timing exhaust gear are aligned with each matchmark located as shown in the illustration.
      GTY373042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Paint Mark
      *2 Matchmark
  10. ADD ENGINE OIL

    See step  15[12/2012 - 11/2013], or see step  15[11/2013 - 10/2015], or see step  15[10/2015 - ]

  11. INSTALL TIMING CHAIN GUIDE

    See step  21[12/2012 - 11/2013], or see step  21[11/2013 - 10/2015], or see step  21[10/2015 - ]

  12. INSTALL NO. 1 CHAIN TENSIONER ASSEMBLY

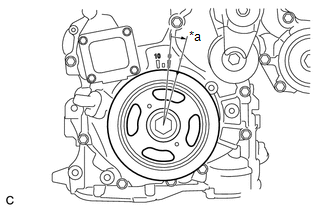

    1. Turn the crankshaft approximately 10° clockwise.
      GTY371647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Approximately 10°
    2. Install a new gasket and the No. 1 chain tensioner with the 2 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      NOTE:

      Make sure not to drop the gasket inside the timing chain cover.

    3. Remove the pin from the stopper plate.
  13. CHECK NO. 1 CYLINDER TO TDC/COMPRESSION

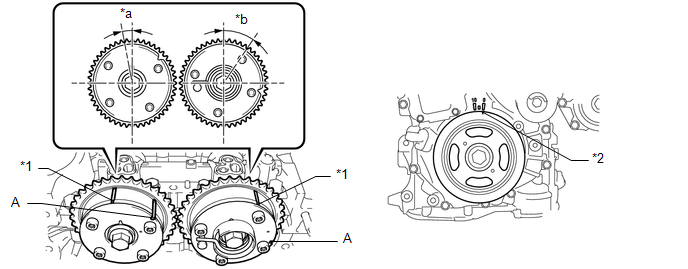

    1. Turn the crankshaft pulley until its timing notch (groove) and the timing mark "0" of the timing chain cover are aligned.
      GTY367137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Timing Mark *2 Timing Notch (Groove)
      *a Approximately 7° *b Approximately 32°
    2. Check that the timing marks of the camshaft timing gears are as shown in the illustration. If not, turn the crankshaft 1 revolution (360°) to align the timing marks as shown in the illustration.

      HINT:

      "A" is not a timing mark.

  14. INSTALL TIMING CHAIN COVER PLATE
    1. Install a new gasket and the timing chain cover plate with the 4 bolts.
      GTY312164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      NOTE:

      Using a 10 mm union nut wrench, tighten the A bolts. Use the torque value compensation formula to calculate the torque value for use when a torque wrench is combined with a tool such as a union nut wrench.

      Refer to PRECAUTION [12/2012 - ]

  15. INSTALL TIMING CHAIN COVER TIGHT PLUG

    Refer to PROCEDURE - Step 38 [12/2012 - 08/2017] , or refer to PROCEDURE - Step 38 [08/2017 - ]

  16. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  17. INSTALL CRANKSHAFT POSITION SENSOR

    Refer to PROCEDURE - Step 1 [12/2012 - 10/2015] , or refer to PROCEDURE - Step 1 [10/2015 - ]

  18. INSTALL IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  19. CONNECT ENGINE WIRE

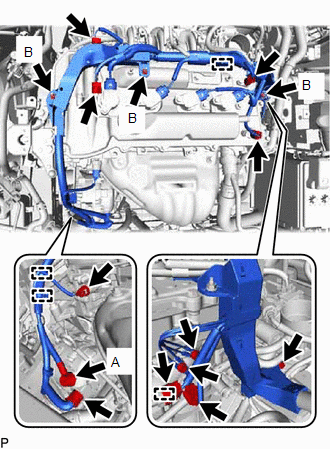

    1. Connect the connectors and clamps, and install the engine wire to the engine with the bolts and nuts.
      GTY368025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Nut A

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

      Nut B

      Torque: 7.7 N*m (79 kgf*cm, 68 in.*lbf)

      Bolt

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  20. CONNECT RADIATOR RESERVOIR ASSEMBLY

    See step  3

  21. INSTALL AIR CLEANER CASE

    Refer to PROCEDURE - Step 4

  22. INSTALL AIR CLEANER CAP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  23. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [12/2012 - 10/2015] , or refer to INITIALIZATION [10/2015 - 08/2016] , or refer to INITIALIZATION [08/2016 - ]

  24. INSPECT FOR OIL LEAK

    Refer to PROCEDURE - Step 5

  25. INSTALL REAR ENGINE UNDER COVER RH

    See step  2

  26. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5
