On-Vehicle Inspection [12/2012 - ]: Procedure

See step  3[12/2012 - 08/2016], or see step  3[08/2016 - ]

Refer to PROCEDURE - Step 14

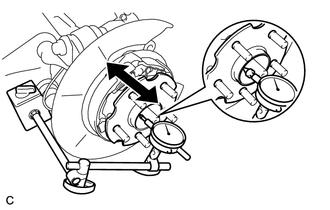

1. Using a dial indicator, check for looseness near the center of the axle hub.

   Maximum

   0.05 mm (0.00197 in.)

   NOTE:

   Make sure that the dial indicator is set perpendicular to the measurement surface.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If the looseness is more than the maximum, replace the axle hub assembly.

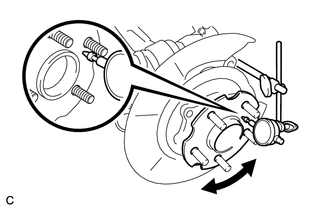

1. Using a dial indicator, check for runout on the surface of the axle hub inside the rear axle hub bolt.

   Maximum

   for 2WD: 0.08 mm (0.00315 in.)

   for AWD: 0.06 mm (0.00236 in.)

   NOTE:

   Make sure that the dial indicator is set perpendicular to the measurement surface.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If the looseness is more than the maximum, replace the axle hub assembly.

Refer to PROCEDURE - Step 1

See step  9

Refer to ADJUSTMENT [12/2012 - ]

Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
