Steering Wheel: Installation: Installation

POSITION FRONT WHEELS STRAIGHT AHEAD
ADJUST SPIRAL CABLE . Refer to INSTALLATION - Step 4
INSTALL STEERING WHEEL ASSEMBLY
1. Align the matchmarks on the steering wheel assembly and steering main shaft.

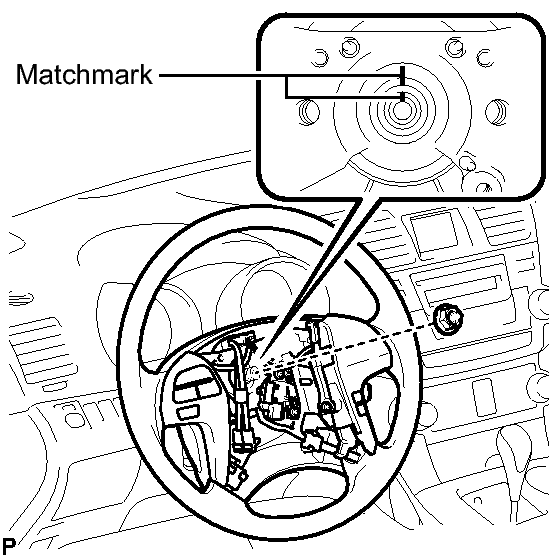

  Fig 1: Identifying Matchmarks On Steering Wheel Assembly And Steering Main Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the steering wheel assembly set nut.
  Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)
3. Connect the connectors to the spiral cable sub-assembly.
INSTALL STEERING PAD . Refer to INSTALLATION - Step 1
INSTALL LOWER NO. 3 STEERING WHEEL COVER . Refer to INSTALLATION - Step 2
INSTALL LOWER NO. 2 STEERING WHEEL COVER . Refer to INSTALLATION - Step 3
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
- Make sure that the cable has been disconnected from the battery terminal for at least 2 seconds before reconnecting the cable.
- Connect the cable to the negative (-) battery terminal with the front wheels facing straight ahead.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSPECT STEERING WHEEL CENTER POINT
INSTALL BATTERY SERVICE HOLE COVER ASSEMBLY . Refer to INSTALLATION - Step 119
INSTALL DECK BOARD ASSEMBLY . Refer to INSTALLATION - Step 120
INSPECT STEERING PAD
INSPECT SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM
