Spiral Cable: Installation: Installation

INSTALL SPIRAL CABLE
1. Engage the 6 claws and 2 pins, and install the spiral cable to the steering angle sensor.

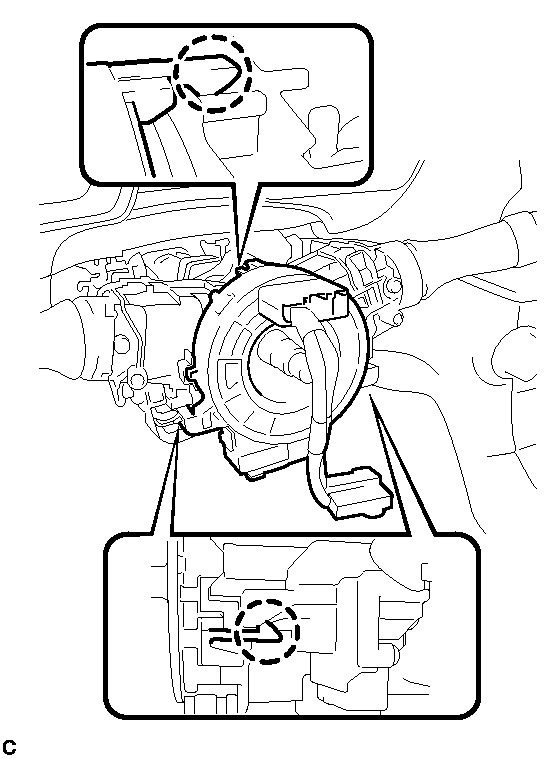

  Fig 1: Identifying Spiral Cable Claws And Pins
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SPIRAL CABLE WITH STEERING ANGLE SENSOR
1. Check that the front wheels are facing straight ahead.
2. Set the turn signal switch to the neutral position.
  NOTE:
  If it is not in the neutral position, the turn signal switch pin may be snapped.
3. Install the spiral cable with steering angle sensor with the 3 claws.

  Fig 2: Identifying Spiral Cable Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  When replacing the spiral cable with a new one, remove the lock pin before installing the steering wheel assembly.
4. Connect the connectors to the spiral cable with steering angle sensor.
  NOTE:
  When handling the airbag connector, take care not to damage the airbag wire harness.
INSTALL STEERING COLUMN COVER . Refer to INSTALLATION - Step 8
ADJUST SPIRAL CABLE
1. Check that the ignition switch is off.
2. Check that the battery negative (-) cable is disconnected.
  WARNING:
  Wait for at least 90 seconds after disconnecting the cable to prevent airbag deployment.
3. Rotate the spiral cable counterclockwise slowly by hand until it stops.

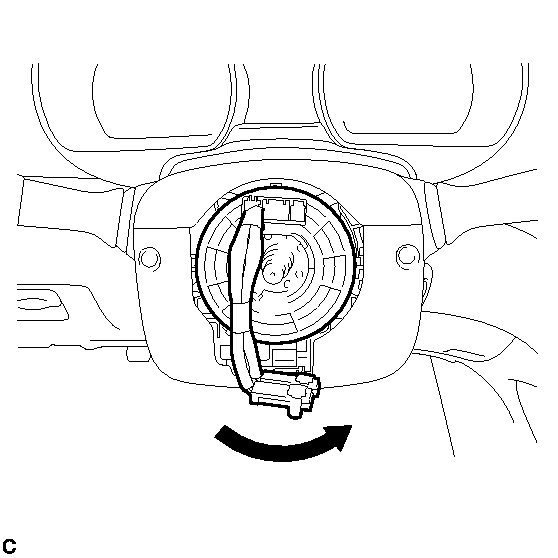

  Fig 3: Rotating Spiral Cable Counterclockwise
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not turn the spiral cable using the airbag wire harness.
4. Rotate the spiral cable clockwise approximately 2.5 turns to align the marks.

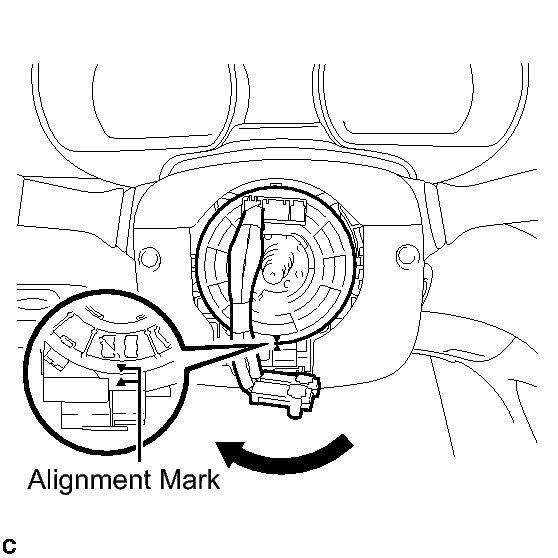

  Fig 4: Rotating Spiral Cable Clockwise
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not turn the spiral cable using the airbag wire harness.

  HINT:

  The spiral cable will rotate approximately 2.5 turns to both the left and right from the center.
INSTALL STEERING WHEEL ASSEMBLY . Refer to INSTALLATION - Step 3
INSTALL STEERING PAD See step 1
INSTALL LOWER NO. 3 STEERING WHEEL COVER See step 2
INSTALL LOWER NO. 2 STEERING WHEEL COVER See step 3
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSPECT STEERING WHEEL CENTER POINT
INSTALL BATTERY SERVICE HOLE COVER ASSEMBLY . Refer to INSTALLATION - Step 119
INSTALL DECK BOARD ASSEMBLY . Refer to INSTALLATION - Step 120
INSPECT STEERING PAD See step 7
CHECK SRS WARNING LIGHT
1. Check the SRS warning light. Refer to DIAGNOSIS SYSTEM .
