Removal

WIPER / WASHER: WASHER MOTOR (for Rear Side): REMOVAL

1. REMOVE FRONT WHEEL RH

2. REMOVE FRONT FENDER LINER RH Removal

3. DRAIN WASHER FLUID

(a) Disconnect the washer hose from the rear washer motor and pump assembly, and drain the washer fluid.

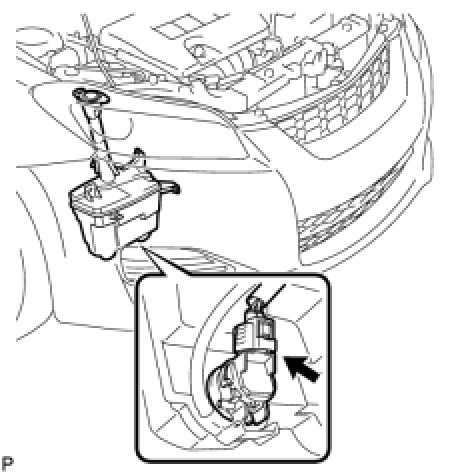

4. REMOVE REAR WASHER MOTOR AND PUMP ASSEMBLY

(a) Disconnect the connector.





(b) Remove the rear washer motor and pump assembly.
