Removal

WIPER / WASHER: WASHER LEVEL WARNING SWITCH: REMOVAL

1. REMOVE FRONT WHEEL RH

2. REMOVE FRONT FENDER LINER RH Removal

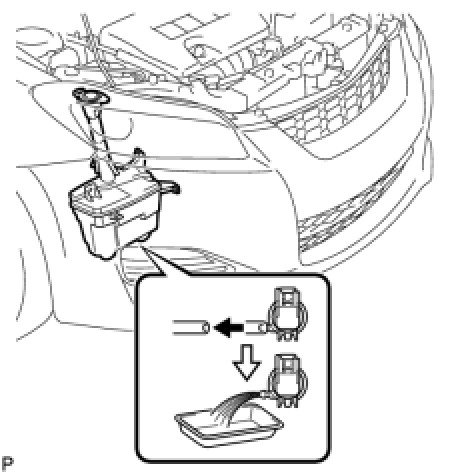

3. DRAIN WASHER FLUID

(a) Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the washer fluid.





4. REMOVE LEVEL WARNING SWITCH ASSEMBLY

(a) Disconnect the connector.





(b) Remove the level warning switch assembly.
