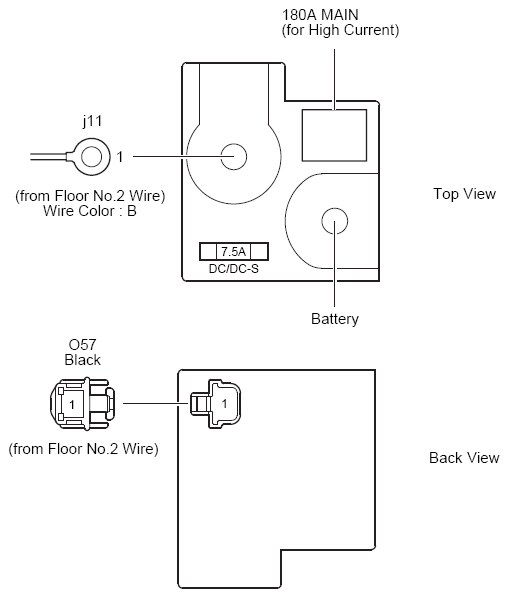

Fusible Link Block Assembly
Luggage Room (See BODY )
FUSIBLE LINK BLOCK ASSEMBLY FUSE IDENTIFICATION
| Fuse | System | |
|---|---|---|
| 7.5A | DCDC-S | Hybrid System |
| 180A | MAIN | Automatic Light Control and Light Auto Turn Off System |
| Headlight | ||
| Smart Key System | ||
| Theft Deterrent | ||
Luggage Room (See BODY )
| Fuse | System | |
|---|---|---|
| 7.5A | DCDC-S | Hybrid System |
| 180A | MAIN | Automatic Light Control and Light Auto Turn Off System |
| Headlight | ||
| Smart Key System | ||
| Theft Deterrent | ||
