Relay Block, Junction Block & Ecu Locations: Body

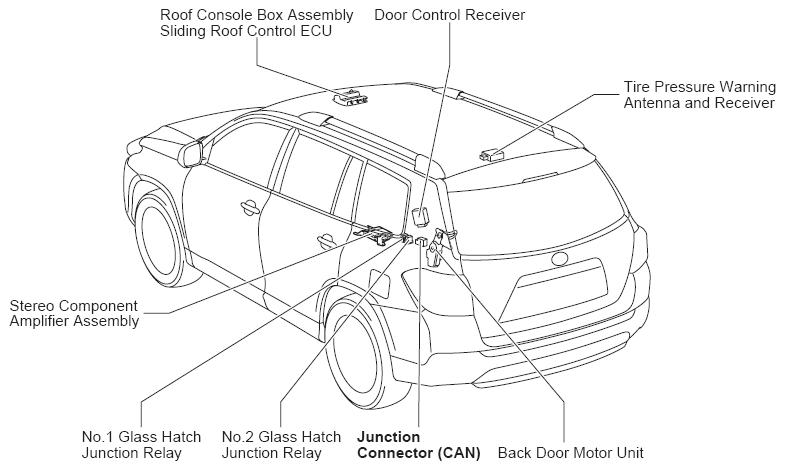

Fig 1: Body ECU & Relay Locations (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

BODY RELAY IDENTIFICATION

RELAY DESCRIPTION
No.2 Glass Hatch Junction Relay
No.1 Glass Hatch Junction Relay

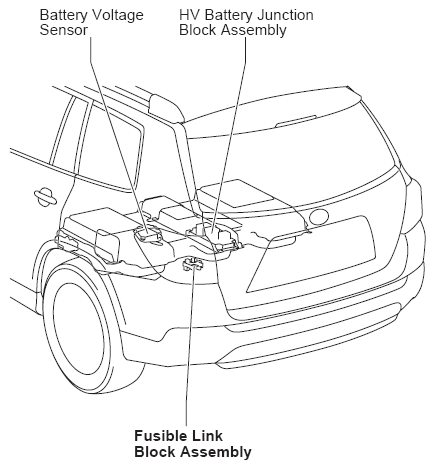

Fig 2: Body ECU & Fusiable Link Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
