Rear Suspension Member: Installation: Installation

  1. INSTALL STUD BOLT (for LH Side)
    1. Using SST and a socket wrench (21 mm), install the stud bolt.
      Fig 1: Identifying Stud Bolt
      GTY169329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09817-33190

      Torque: 180 N*m (1840 kgf*cm, 133 ft.*lbf)

  2. INSTALL STUD BOLT (for RH Side)

    HINT:

    Perform the same procedure as the LH side.

  3. TEMPORARILY INSTALL REAR NO. 2 BODY MOUNTING BRACKET SUB-ASSEMBLY LH
    1. Temporarily install the rear No. 2 body mounting bracket sub-assembly LH with the 2 bolts (A) and bolt (B).
      Fig 2: Locating Rear No. 2 Body Mounting Bracket Sub-Assembly LH Bolts
      GTY204065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Two types of bolts are used. Install each bolt to the correct position.

  4. TEMPORARILY INSTALL REAR NO. 2 BODY MOUNTING BRACKET SUB-ASSEMBLY RH
    1. Temporarily install the rear No. 2 body mounting bracket sub-assembly RH with the 2 bolts (A) and bolt (B).

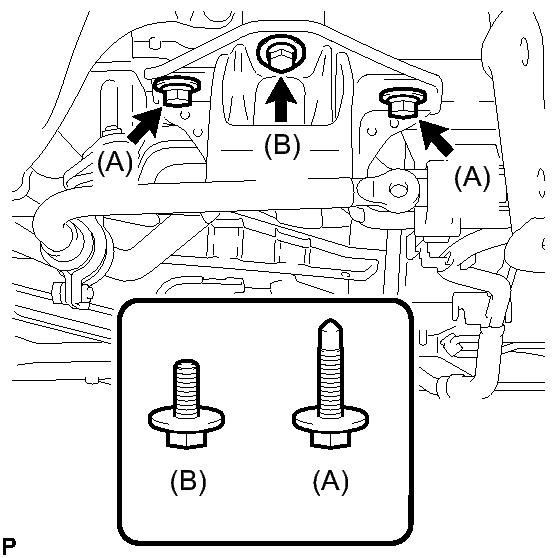

      Fig 3: Locating Rear No. 2 Body Mounting Bracket Sub-Assembly RH Bolts
      GTY189855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Two types of bolts are used. Install each bolt to the correct position.

  5. INSTALL HOLE PLUG
    1. Install the 2 hole plugs.
  6. INSTALL DIFFERENTIAL MOUNT CUSHION
    1. Temporarily install a new differential mount cushion front cushion while confirming the installation direction.
      Fig 4: Identifying Differential Mount Cushion Front Cushion Installation Direction
      GTY204656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      (A)

      0° +/- 3°

      NOTE:

      Make sure that the differential mount cushion is installed in the correct direction.

    2. Install SST to rear suspension member as shown in the illustration.

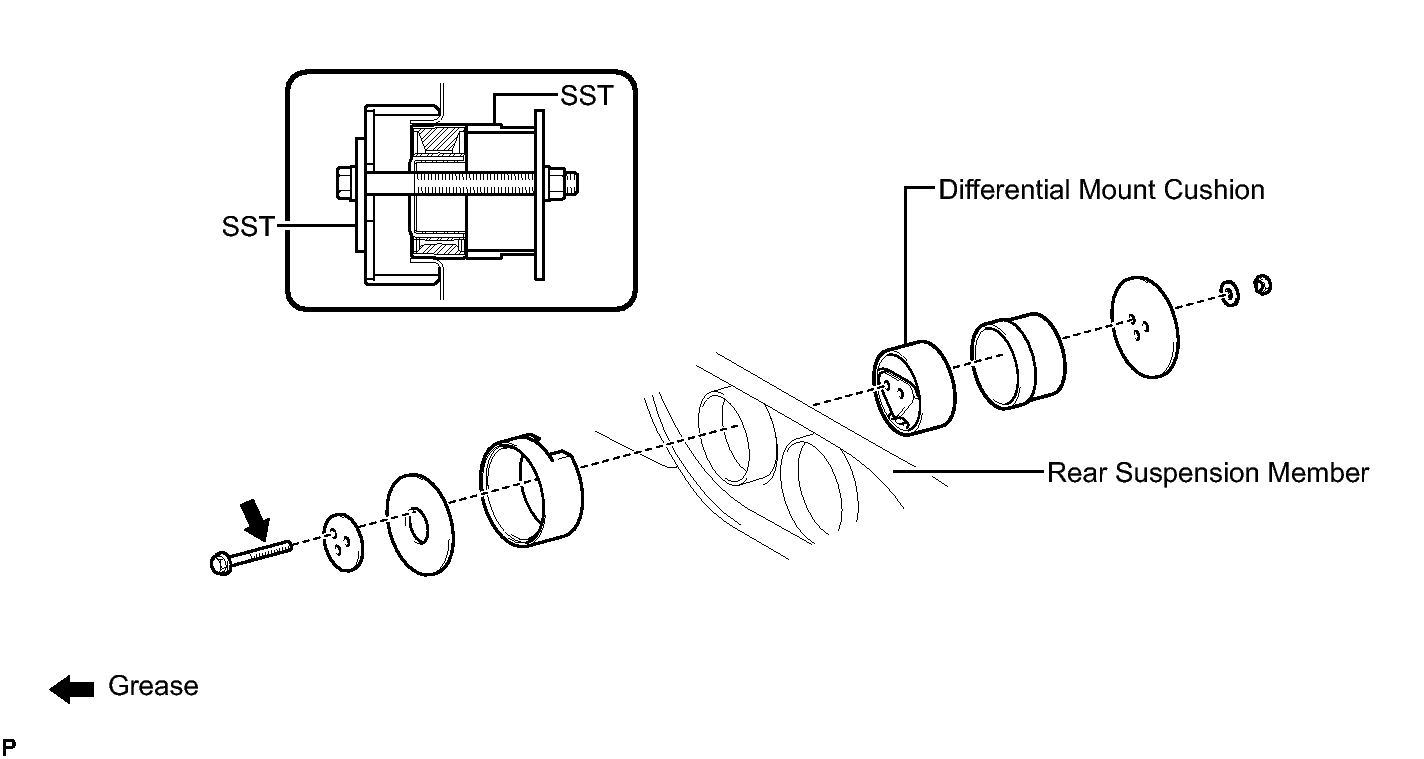

      Fig 5: Identifying SST To Rear Suspension Member
      GTY204658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09570-24011
      NOTE:

      Apply a small amount of grease to the threads of SST (bolt) before use.

    3. While tapping the area around the tip of arrow (A) in the illustration using a hammer, use SST to install the differential mount cushion.

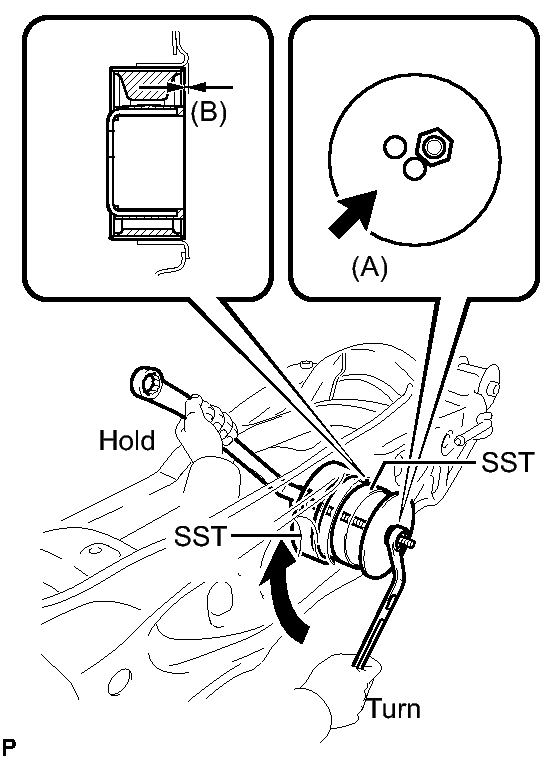

      Fig 6: Installing Differential Mount Cushion
      GTY204657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09570-24011

      (B)

      2.3 +/- 0.5 mm (0.090 +/- 0.019 in.)

      HINT:

      Tapping the area around the tip of arrow (A) in the illustration makes it easier to install the differential mount cushion.

  7. INSTALL REAR SUSPENSION MEMBER BODY MOUNTING FRONT CUSHION (for LH Side)
    1. Temporarily install a new rear suspension member body mounting front cushion while confirming the installation direction.
      Fig 7: Identifying Rear Suspension Member Body Mounting Front Cushion Installation Direction
      GTY204653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, install the rear suspension member body mounting front cushion until there is no clearance between the suspension member sub- assembly and the rear suspension member body mounting front cushion.

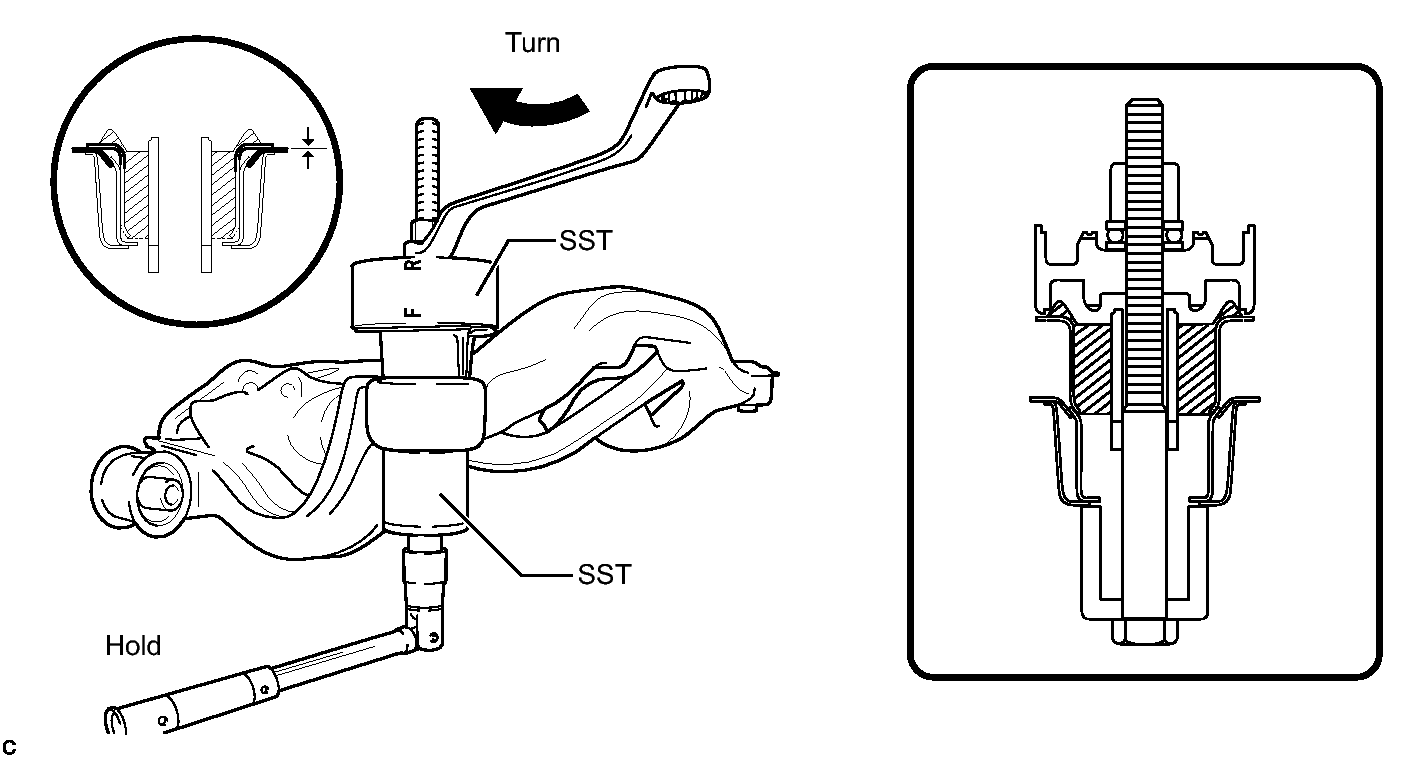

      Fig 8: Installing Rear Suspension Member Body Mounting Front
      GTY170370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09830-10010
        • 09830-01010
        • 09830-01020
        • 09830-01030
        • 09830-01060
      NOTE:
      • Tighten SST slowly and evenly.
      • Apply a small amount of grease to the threads of SST (center bolt) before use.
      • Use SST with the "F" mark facing the body mounting cushion.
  8. INSTALL REAR SUSPENSION MEMBER BODY MOUNTING FRONT CUSHION (for RH Side)

    HINT:

    Perform the same procedure as the LH side.

  9. INSTALL REAR SUSPENSION MEMBER BODY MOUNTING REAR CUSHION (for LH Side)
    1. Temporarily install a new rear suspension member body mounting rear cushion while confirming the installation direction.
      Fig 9: Identifying Rear Suspension Member Body Mounting Rear Cushion Installation Direction
      GTY204344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, install the rear suspension member rear body mounting cushion until there is no clearance between the suspension member sub-assembly and the rear suspension member body mounting rear cushion.
      Fig 10: Identifying Rear Suspension Member & Body Mounting Cushion
      GTY179914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09830-36010
      • SST: 09515-21010
      NOTE:
      • Tighten SST slowly and evenly.
      • Apply a small amount of grease to the threads of SST (center bolt) before use.
  10. INSTALL REAR SUSPENSION MEMBER BODY MOUNTING REAR CUSHION (for RH Side)

    HINT:

    Perform the same procedure as the LH side.

  11. INSTALL REAR TRACTION WITH TRANSAXLE MOTOR ASSEMBLY

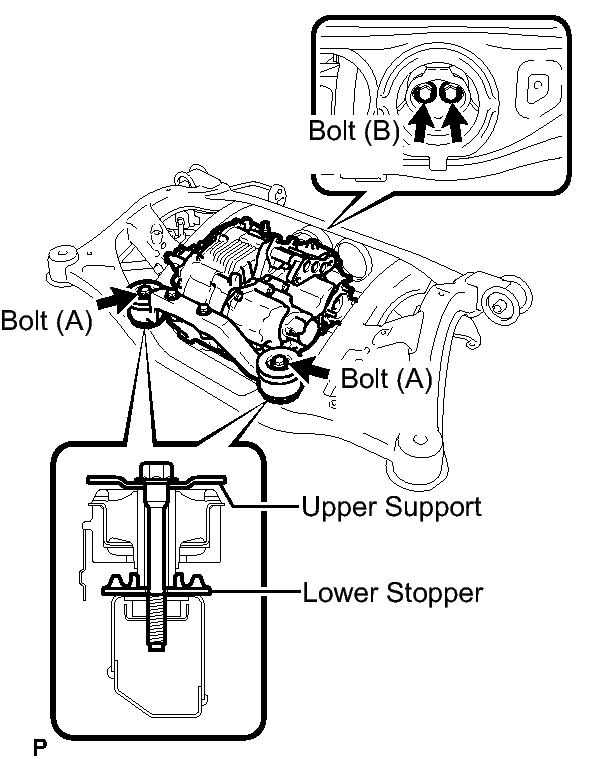

    Fig 11: Locating Lower Stoppers, Upper Supports, And Bolts
    GTY204655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Temporarily install the rear traction with transaxle motor assembly (front side) with the 2 lower stoppers, 2 upper supports, and 2 new bolts (A) as shown in the illustration.
    2. Temporarily install the rear traction with transaxle motor assembly (rear side) with the 2 new bolts (B).
    3. Fully tighten the 2 bolts (A).

      Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

    4. Fully tighten the 2 bolts (B).

      Torque: 95 N*m (970 kgf*cm, 70 ft.*lbf)

  12. TEMPORARILY INSTALL REAR SUSPENSION MEMBER
    1. Raise the rear suspension member with a jack.
      Fig 12: Identifying Rear Suspension Member With Jack
      GTY204652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Support the rear suspension member until retightening of the suspension member is complete.

    2. Temporarily install the rear suspension member, the 2 rear upper suspension member stoppers and rear lower suspension member stopper retainers with the 4 nuts and the 2 bolts.

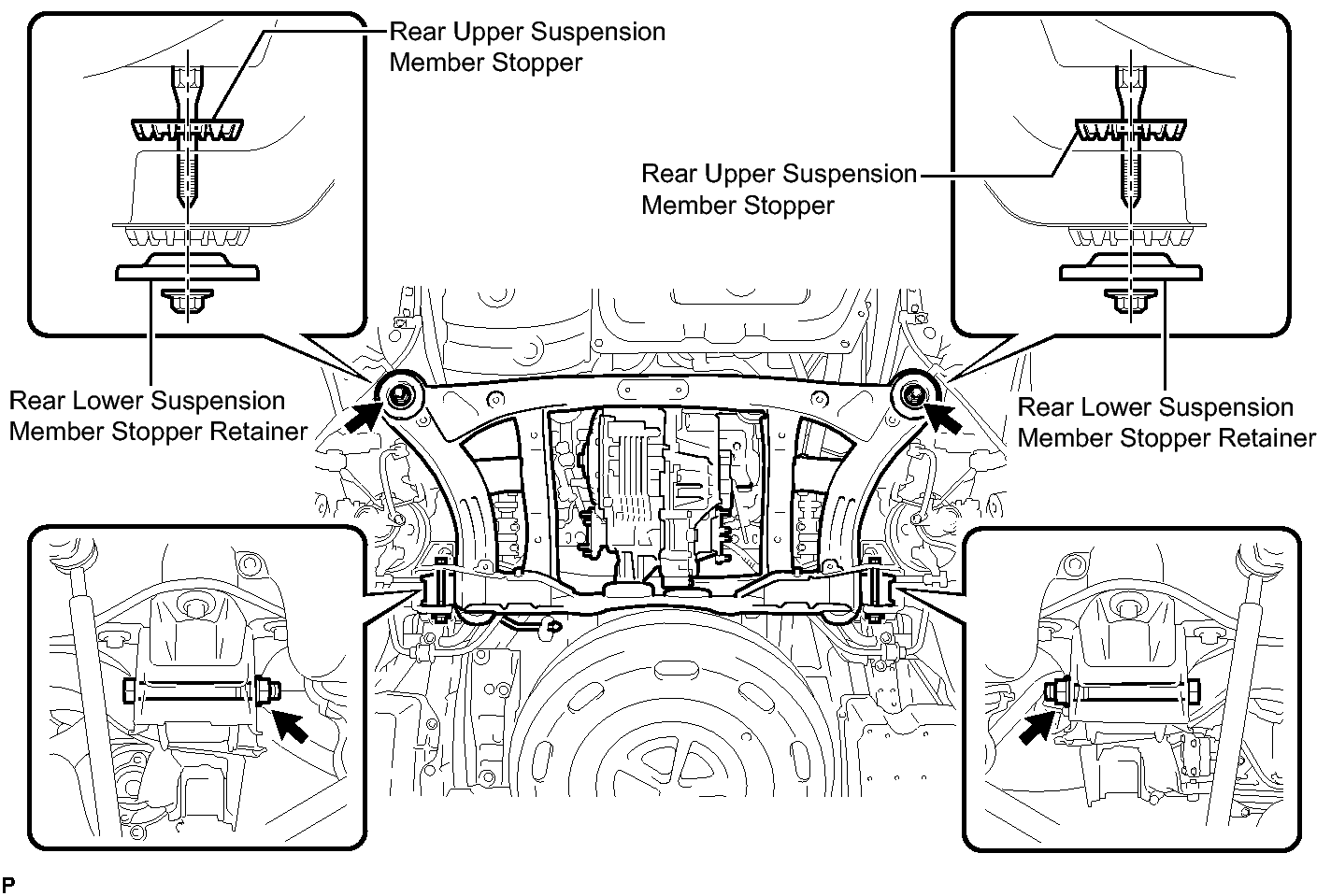

      Fig 13: Identifying Rear Upper And Lower Suspension Member Stopper Nuts And Bolts
      GTY189679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Fully tighten the 2 nuts.

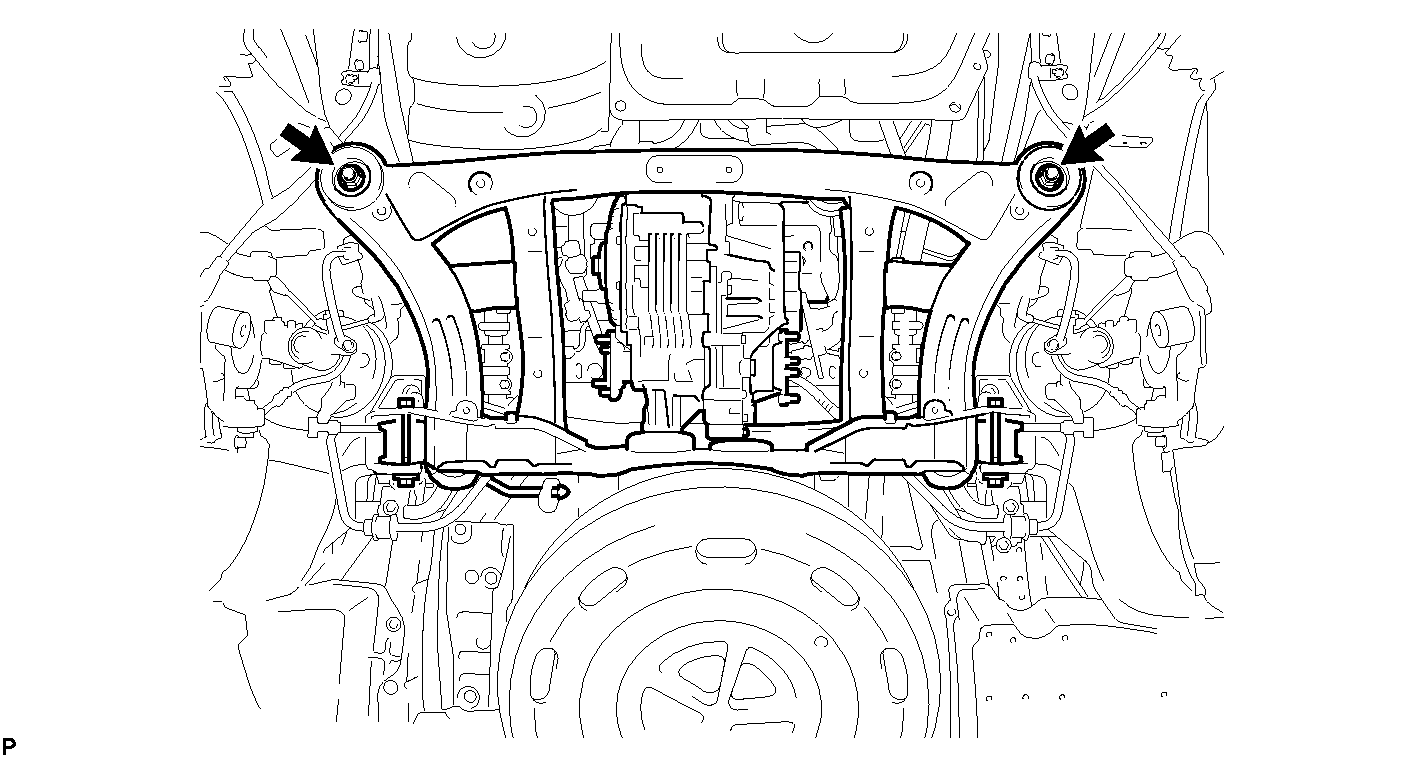

      Fig 14: Locating Nuts
      GTY184213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 115 N*m (1170 kgf*cm, 85 ft.*lbf)

  13. FULLY TIGHTEN REAR NO. 2 BODY MOUNTING BRACKET SUB-ASSEMBLY LH
    1. Lightly shake the rear suspension member to settle the body mounting cushion in the rear No. 2 body mounting bracket sub-assembly.
    2. Fully tighten the 3 bolts.
      Fig 15: Locating Rear No. 2 Body Mounting Bracket Sub-Assembly LH Bolts
      GTY204064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 90 N*m (920 kgf*cm, 66 ft.*lbf)

  14. FULLY TIGHTEN REAR NO. 2 BODY MOUNTING BRACKET SUB-ASSEMBLY RH
    1. Lightly shake the rear suspension member to settle the body mounting cushion in the rear No. 2 body mounting bracket sub-assembly.
    2. Fully tighten the 3 bolts.
      Fig 16: Locating Rear No. 2 Body Mounting Bracket Sub-Assembly Bolts RH
      GTY188826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 90 N*m (920 kgf*cm, 66 ft.*lbf)

  15. FULLY TIGHTEN REAR SUSPENSION MEMBER
    1. Using SST and a socket wrench (19 mm), fully tighten the nut (LH side).

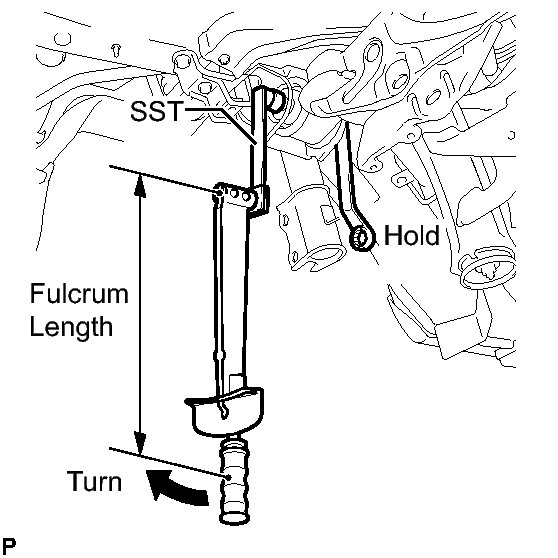

      Fig 17: Tightening Nut (LH Side)
      GTY178744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      without SST

      Torque: 181 N*m (1850 kgf*cm, 133 ft.*lbf)

      with SST

      Torque: 134 N*m (1366 kgf*cm, 98 ft.*lbf)

      • SST: 09961-00950
      NOTE:
      • Use a torque wrench with a fulcrum length of 425 mm (16.73 in.).
      • This torque value is effective when SST is parallel to the torque wrench.
    2. Using SST and a socket wrench (19 mm), fully tighten the nut (RH side).

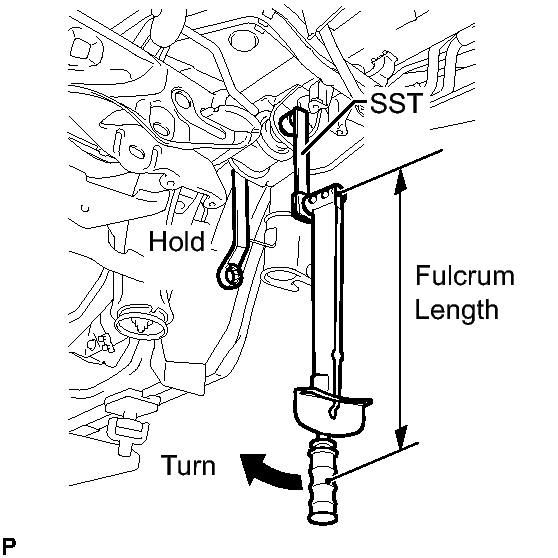

      Fig 18: Tightening Nut (RH Side)
      GTY180391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      without SST

      Torque: 181 N*m (1850 kgf*cm, 133 ft.*lbf)

      with SST

      Torque: 134 N*m (1366 kgf*cm, 98 ft.*lbf)

      • SST: 09961-00950
      NOTE:
      • Use a torque wrench with a fulcrum length of 425 mm (16.73 in.).
      • This torque value is effective when SST is parallel to the torque wrench.
  16. INSTALL NO. 3 WIRE FRAME  . Refer to INSTALLATION - Step 7
  17. INSTALL REAR DRIVE SHAFT ASSEMBLY LH
    1. Align the matchmarks on the rear drive shaft assembly LH and rear axle hub LH.
      Fig 19: Identifying Matchmarks On Rear Drive Shaft And Rear Axle Hub
      GTY204093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Insert the rear drive shaft assembly to the rear axle hub LH.
    3. Align the matchmarks on the rear drive shaft assembly LH and the differential side gear shaft LH.
      Fig 20: Locating Rear Drive Shaft Assembly Nuts
      GTY200886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the rear drive shaft assembly with the 4 nuts and washers.

      Torque: 56 N*m (571 kgf*cm, 41 ft.*lbf)

  18. INSTALL REAR DRIVE SHAFT ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  19. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY LH  See step  1
  20. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  21. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH  See step  2
  22. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  23. TEMPORARILY INSTALL REAR STRUT ROD ASSEMBLY LH  See step  1
  24. TEMPORARILY INSTALL REAR STRUT ROD ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  25. INSTALL REAR AXLE SHAFT NUT LH  . Refer to INSTALLATION - Step 13
  26. INSTALL REAR AXLE SHAFT NUT RH

    HINT:

    Perform the same procedure as the LH side.

  27. STABILIZE SUSPENSION  See step  4
  28. FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY LH  See step  5
  29. FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  30. FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY LH  See step  6
  31. FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  32. FULLY TIGHTEN REAR STRUT ROD ASSEMBLY LH  See step  3
  33. FULLY TIGHTEN REAR STRUT ROD ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  34. INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY  See step  4
  35. INSTALL NO. 2 PARKING BRAKE CABLE ASSEMBLY

    HINT:

    Perform the same procedure as the No. 3 parking brake cable assembly.

  36. INSTALL CENTER EXHAUST PIPE ASSEMBLY  . Refer to INSTALLATION - Step 5
  37. INSTALL HEATER COVER  . Refer to INSTALLATION - Step 5
  38. INSTALL TAIL EXHAUST PIPE ASSEMBLY  . Refer to INSTALLATION - Step 8
  39. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected, refer to INITIALIZATION .

  40. CHECK HIGH VOLTAGE CABLE CONNECTION  . Refer to INSTALLATION - Step 14
  41. INSTALL SERVICE PLUG GRIP  . Refer to INSTALLATION - Step 1
  42. INSTALL RECLINING HINGE COVER LH  . Refer to INSTALLATION - Step 2
  43. INSTALL REAR DOOR SCUFF PLATE LH  . Refer to INSTALLATION - Step 3
  44. INSTALL BATTERY SERVICE HOLE COVER ASSEMBLY  . Refer to INSTALLATION - Step 119
  45. INSTALL DECK BOARD ASSEMBLY  . Refer to INSTALLATION - Step 120
  46. ADD ENGINE COOLANT  . Refer to REPLACEMENT - Step 4
  47. INSPECT FOR ENGINE COOLANT LEAK  . Refer to ON-VEHICLE INSPECTION - Step 1
  48. INSPECT FOR EXHAUST GAS LEAK  . Refer to INSTALLATION - Step 17
  49. CHECK FOR SPEED SENSOR SIGNAL

    Refer to INSTALLATION - Step 4

  50. INSTALL REAR WHEELS

    Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

  51. INSPECT REAR WHEEL ALIGNMENT

    Refer to ADJUSTMENT
