VC Output Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

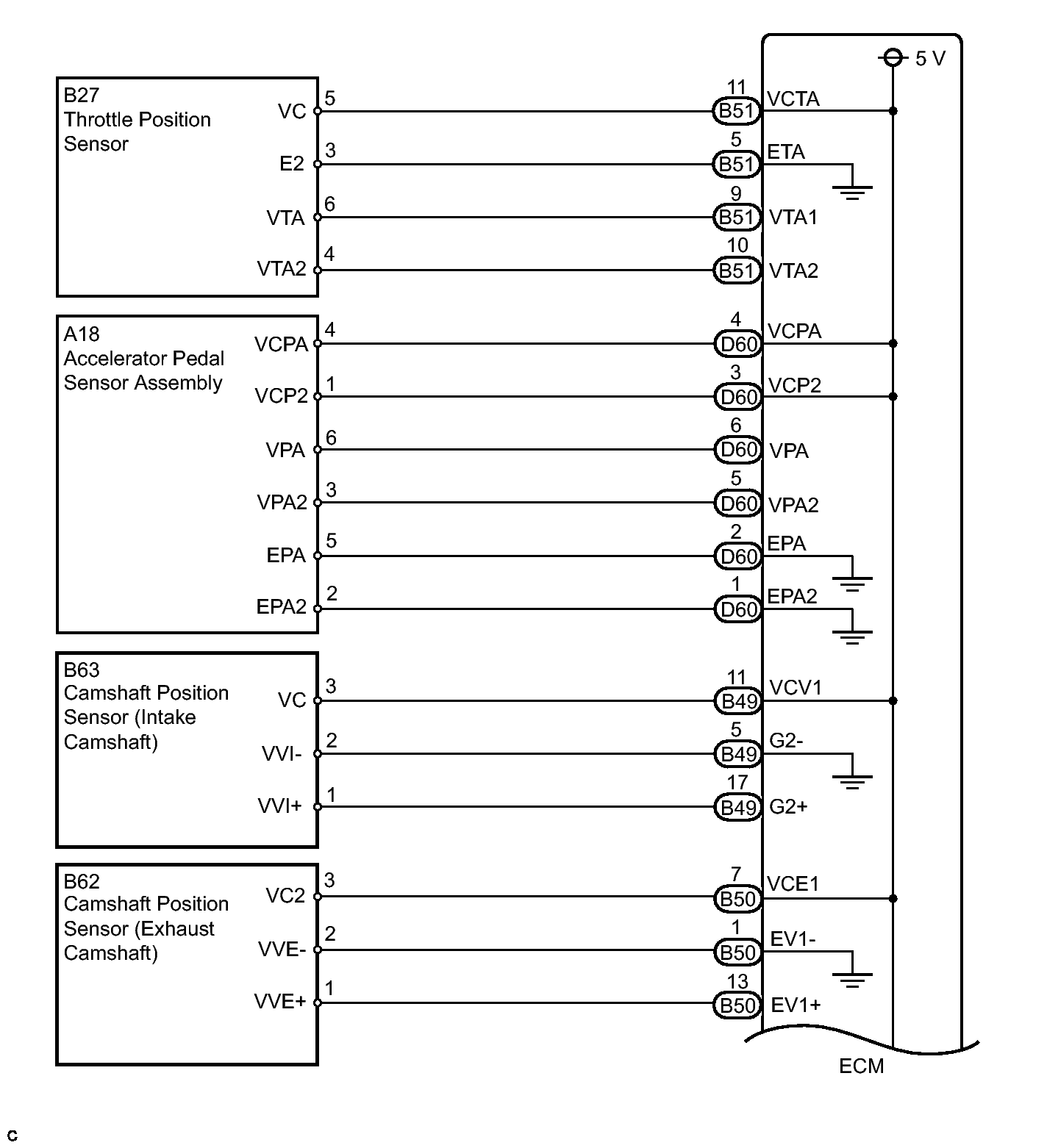

Fig 1: Identifying VC Output Circuit Diagram (1 Of 2)
GTY298562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

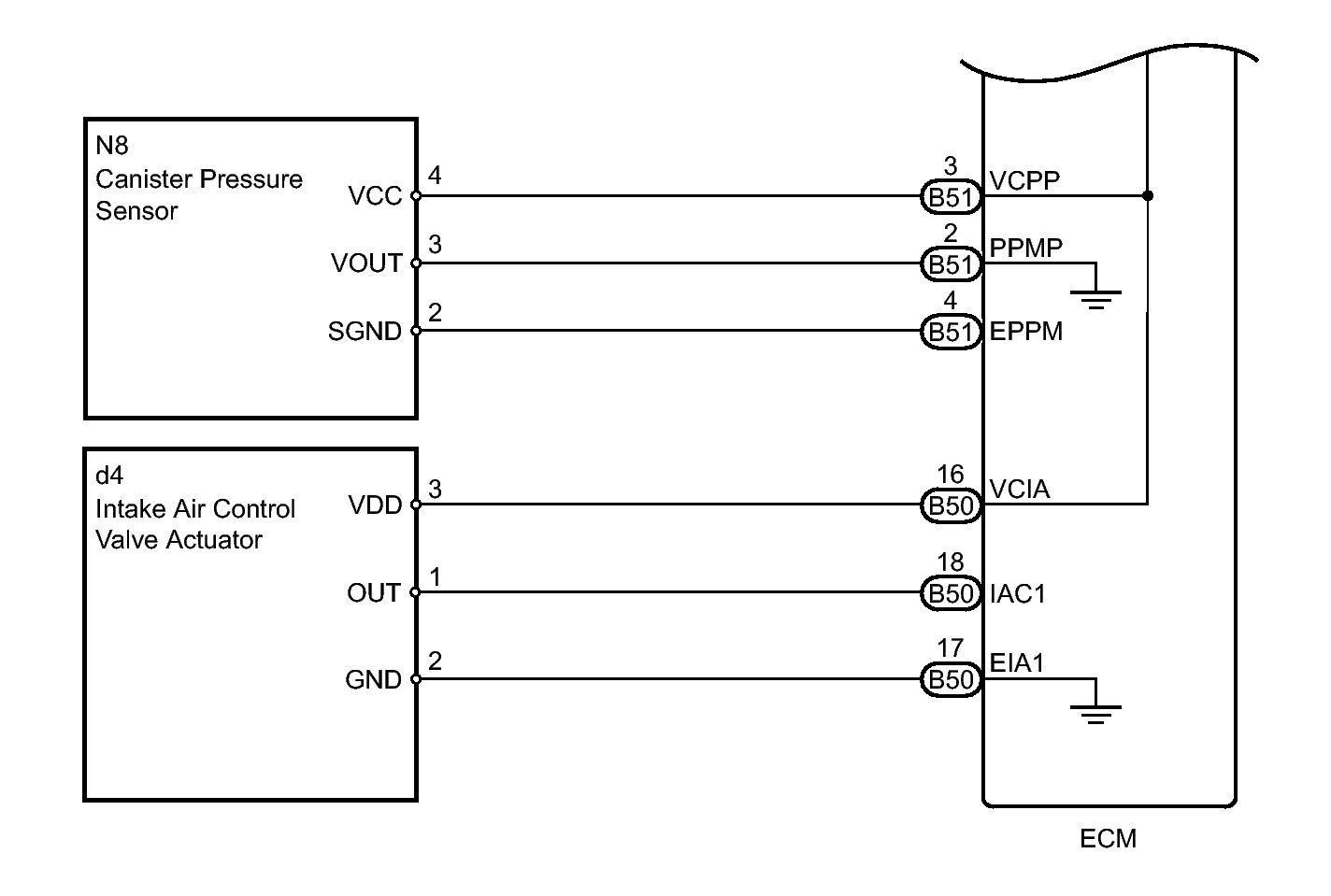

Fig 2: Identifying VC Output Circuit Diagram (2 Of 2)
GTY178986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
