Fuel Injector Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

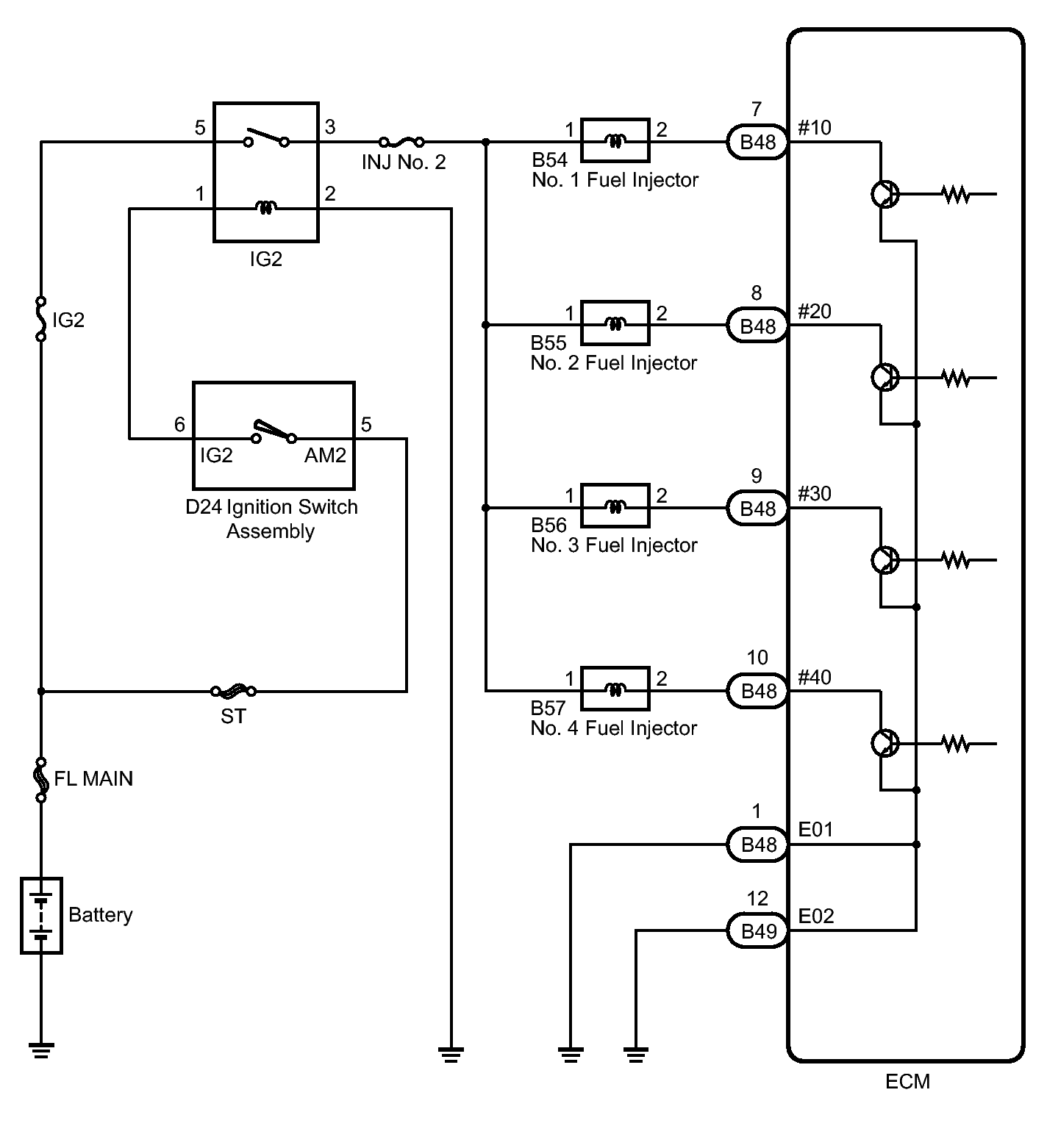

Fig 1: Fuel Injector Circuit - Wiring Diagram
GTY295756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
