DTC P2102: Throttle Actuator Control Motor Circuit Low; DTC P2103: Throttle Actuator Control Motor Circuit High: Procedure
WARNING: This page is about a different variant/trim than selected.

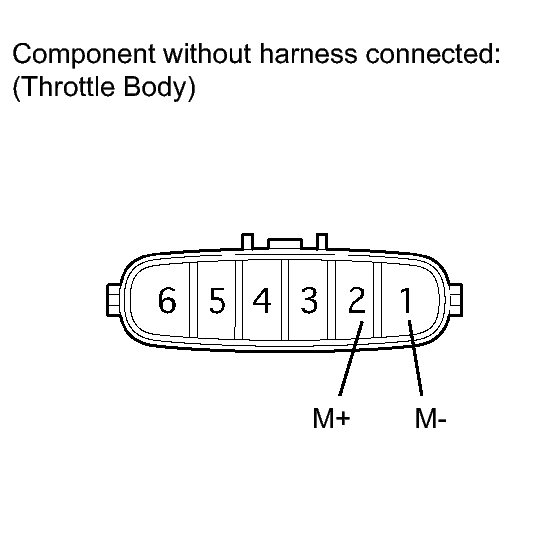

- INSPECT THROTTLE BODY (RESISTANCE OF THROTTLE ACTUATOR)
- Disconnect the throttle body connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 2 (M+) - 1 (M-) 20°C (68°F) 0.3 to 100 Ω - Reconnect the throttle body connector.
NG → See step 5
OK: Go to next step
- CHECK HARNESS AND CONNECTOR (THROTTLE BODY - ECM)
- Disconnect the throttle body connector.
- Disconnect the ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance (Check for Open)
Tester Connection Condition Specified Condition B27-2 (M+) - B48-18 (M+) Always Below 1 Ω B27-1 (M-) - B48-19 (M-) Always Below 1 Ω Standard Resistance (Check for Short)
Tester Connection Condition Specified Condition B27-2 (M+) or B48-18 (M+) - Body ground Always 10 kΩ or higher B27-1 (M-) or B48-19 (M-) - Body ground Always 10 kΩ or higher - Reconnect the ECM connector.
- Reconnect the throttle body connector.
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- INSPECT THROTTLE BODY (VISUALLY CHECK THROTTLE VALVE)
- Check for foreign objects between the throttle valve and the housing.
OK
No foreign objects between the throttle valve and housing.
NG → REMOVE FOREIGN OBJECT AND CLEAN THROTTLE BODY
OK: Go to next step
- Check for foreign objects between the throttle valve and the housing.
- INSPECT THROTTLE BODY (THROTTLE VALVE)
- Check if the throttle valve opens and closes smoothly.
OK
Throttle valve opens and closes smoothly.
NG → See step 6
OK → See step 7
- Check if the throttle valve opens and closes smoothly.
- REPLACE THROTTLE BODY. Refer to REMOVAL
- REPLACE THROTTLE BODY. Refer to REMOVAL
- REPLACE ECM. Refer to REMOVAL
