Ignition Coil And Spark Plug: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE ENGINE UNDER COVER ASSEMBLY . Refer to REMOVAL - Step 7
REMOVE NO. 1 ENGINE UNDER COVER . Refer to REMOVAL - Step 8
DRAIN ENGINE COOLANT . Refer to REPLACEMENT - Step 4
REMOVE V-BANK COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 25
REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH . Refer to REMOVAL - Step 1
REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH . Refer to REMOVAL - Step 2
REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY . Refer to REMOVAL - Step 4
REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY . Refer to REMOVAL - Step 5
REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY . Refer to REMOVAL - Step 8
DISCONNECT ENGINE ROOM MAIN WIRE . Refer to REMOVAL - Step 12
REMOVE THROTTLE BODY BRACKET . Refer to REMOVAL - Step 13
REMOVE NO. 1 SURGE TANK STAY . Refer to REMOVAL - Step 14
REMOVE AIR CLEANER CAP SUB-ASSEMBLY . Refer to REMOVAL - Step 5
REMOVE INTAKE AIR SURGE TANK ASSEMBLY . Refer to REMOVAL - Step 15
REMOVE IGNITION COIL ASSEMBLY
1. Remove the 4 bolts [A].

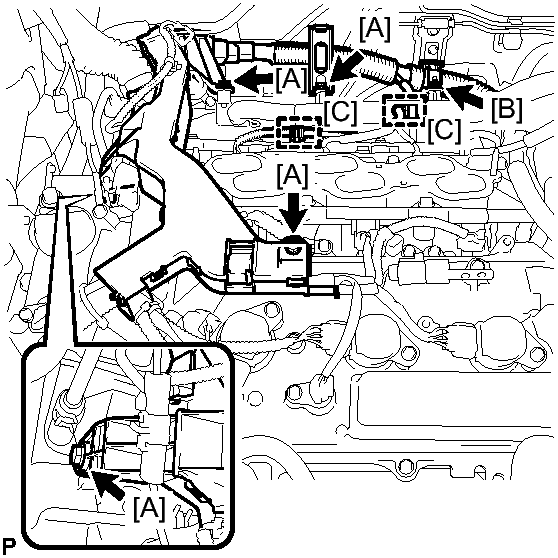

  Fig 1: Identifying Ignition Coil Assembly And Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the nut [B].
3. Disconnect the 2 harness clamps [C].
4. Disconnect the 6 ignition coil connectors.

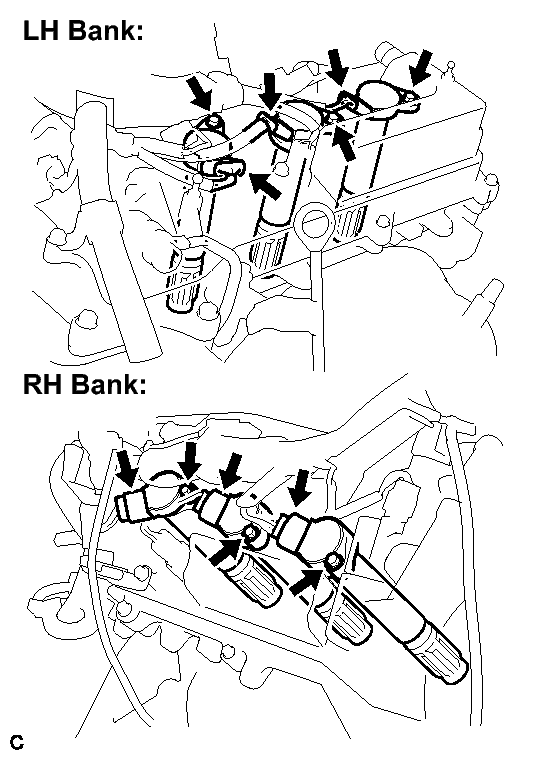

  Fig 2: Identifying Ignition Coil Connectors And Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 6 bolts and 6 ignition coils.
REMOVE SPARK PLUG
1. Remove the 6 spark plugs.

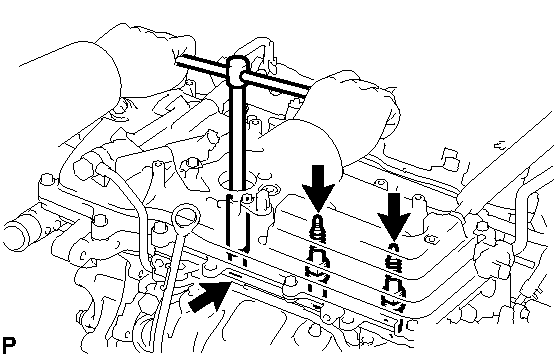

  Fig 3: Removing Spark Plugs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
