Front Wiper Motor: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH
    1. Remove the nut, and the front wiper arm and blade assembly LH.
      Fig 1: Identifying Front Wiper Arm And Blade Assembly Nut
      GTY207910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH
    1. Remove the nut, and the front wiper arm and blade assembly RH.
      Fig 2: Identifying Front Wiper Arm And Blade Assembly Nut
      GTY169391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE HOOD TO COWL TOP SEAL
    1. Disengage the 8 clips and remove the hood to cowl top seal.
      Fig 3: Identifying Hood To Cowl Top Seal Clips
      GTY186785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
    1. Disengage the 2 claws and disconnect the front fender to cowl side seal LH.
      Fig 4: Identifying Front Fender To Cowl Side Seal Claws
      GTY207911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and disconnect the front fender to cowl side seal RH.
      Fig 5: Identifying Front Fender RH Claws
      GTY168956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 clips.

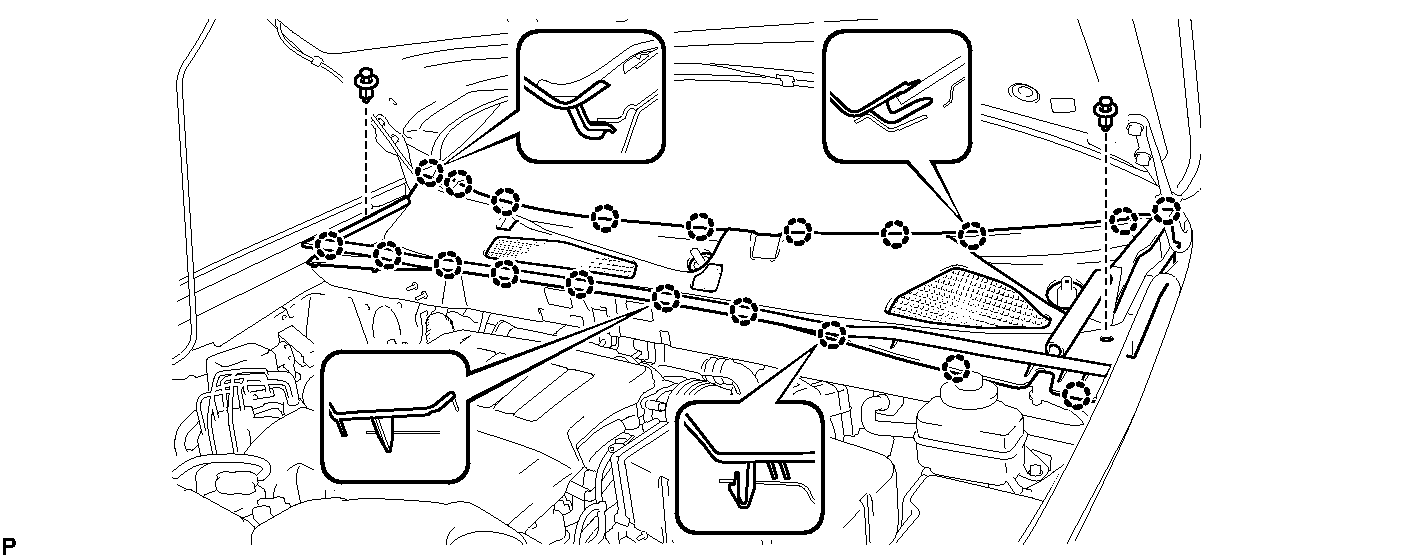

      Fig 6: Identifying Cowl Top Ventilator Louver Sub-Assembly Claws
      GTY207912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 20 claws and remove the cowl top ventilator louver sub-assembly.
  5. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
    1. Disconnect the connector.

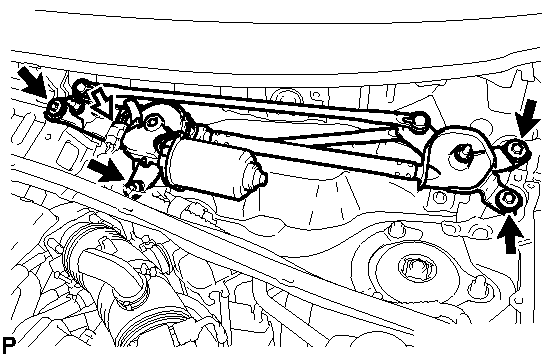

      Fig 7: Identifying Windshield Wiper Motor And Link Assembly Fastners
      GTY174972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts, and the windshield wiper motor and link assembly.
  6. REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY
    1. Using a screwdriver with the tip wrapped with protective tape, disconnect the rod of the windshield wiper link assembly from the crank arm pivot of the windshield wiper motor assembly as shown in the illustration.
      Fig 8: Identifying Rod Of Windshield Wiper Link Assembly & Crank Arm Pivot
      GTY207913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Place matchmarks on the windshield wiper link assembly and crank arm assembly.
      Fig 9: Identifying Matchmarks On Windshield Wiper Link Assembly & Crank Arm Assembly
      GTY207914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the nut and the crank arm assembly.
    4. Disengage the clamp.
      Fig 10: Identifying Windshield Wiper Motor Assembly Bolts
      GTY173376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 3 bolts and the windshield wiper motor assembly.
