Section 27 (Automatic Transmission (U760E) (Service Information)): TCM: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

When the TCM is replaced, the existing transaxle compensation codes must be input into the new TCM, refer to PRECAUTION .

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected, refer to INITIALIZATION .
REMOVE COOL AIR INTAKE DUCT SEAL . Refer to REMOVAL - Step 6
REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH . Refer to REMOVAL - Step 1
REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH . Refer to REMOVAL - Step 2
REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY . Refer to REMOVAL - Step 4
REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY . Refer to REMOVAL - Step 5
SEPARATE EJECTOR TUBE . Refer to REMOVAL - Step 1
REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY . Refer to REMOVAL - Step 8
REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 25
REMOVE BATTERY . Refer to REMOVAL - Step 26
REMOVE NO. 2 INLET AIR CLEANER . Refer to REMOVAL - Step 27
REMOVE AIR CLEANER CAP SUB-ASSEMBLY . Refer to REMOVAL - Step 9
REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY . Refer to REMOVAL - Step 29
REMOVE AIR CLEANER CASE SUB-ASSEMBLY . Refer to REMOVAL - Step 30
REMOVE AIR CLEANER BRACKET . Refer to REMOVAL - Step 31
REMOVE NO. 1 INLET AIR CLEANER . Refer to REMOVAL - Step 32
REMOVE TCM

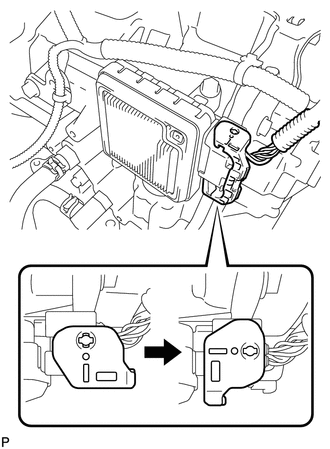

1. Turn the lock lever and disconnect the connector from the TCM.

  Fig 1: Identifying TCM
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

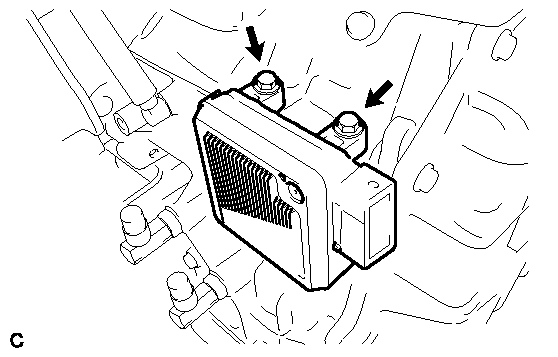

2. Remove the 2 bolts and TCM from the transaxle.

  Fig 2: Locating TCM Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
