REAR NO. 1 SEAT ASSEMBLY (for RH Side): Disassembly: Disassembly

  1. REMOVE REAR NO. 1 SEAT INNER BELT ASSEMBLY  . Refer to REMOVAL - Step 8
  2. REMOVE REAR SEAT RECLINING UPPER COVER
    1. Using a screwdriver wrapped with protective tape, disengage the 3 claws and remove the rear seat reclining upper cover.

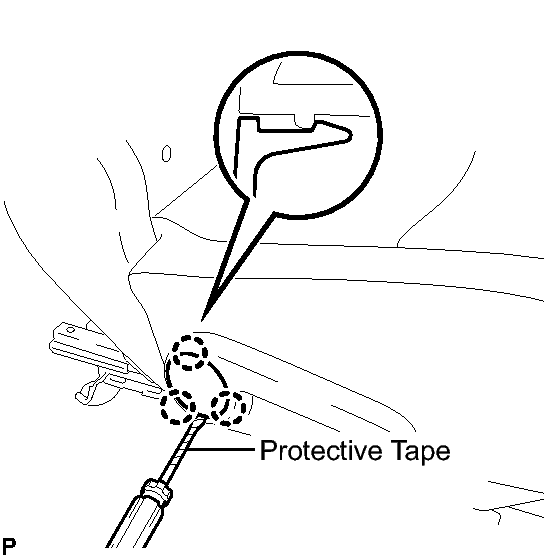

      Fig 1: Identifying Rear Seat Reclining Upper Cover
      GTY184231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 RECLINING ADJUSTER RELEASE HANDLE
    1. Remove the 3 screws and remove the No. 1 reclining adjuster release handle.
      Fig 2: Identifying No. 1 Reclining Adjuster Release Handle And Screws
      GTY199433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SEAT ADJUSTER COVER CAP

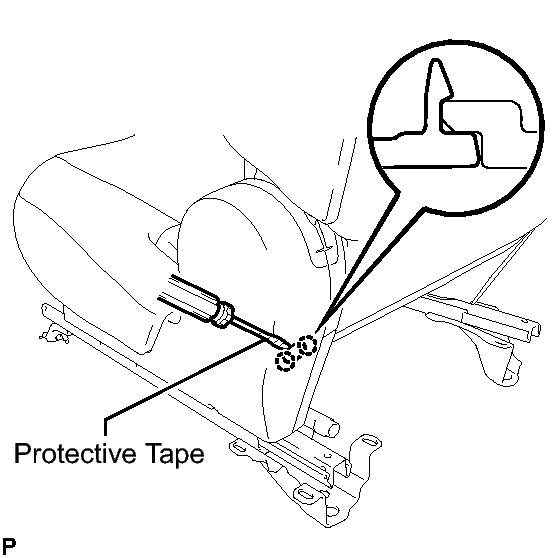

    1. Using a screwdriver wrapped with protective tape, disengage the 2 claws and remove the seat adjuster cover cap.
      Fig 3: Identifying Seat Adjuster Cover Cap
      GTY199434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SEAT CUSHION MOULDING LH
    1. Remove the 2 screws.
      Fig 4: Identifying Rear Seat Cushion Moulding LH Screws, Claws And Guide
      GTY199435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws.
    3. Disengage the guide and remove the rear seat cushion moulding LH.
  6. REMOVE REAR SEAT CUSHION MOULDING RH
    1. Remove the screw.
      Fig 5: Identifying Rear Seat Cushion Moulding RH And Screws
      GTY169375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 5 claws.
    3. Disengage the guide and remove the rear seat cushion moulding RH.
  7. REMOVE REAR NO. 1 SEAT CUSHION COVER WITH PAD
    1. Disengage the 2 hooks.
      Fig 6: Locating Rear No. 1 Seat Cushion Cover With Pad And Hooks
      GTY170357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 hooks.

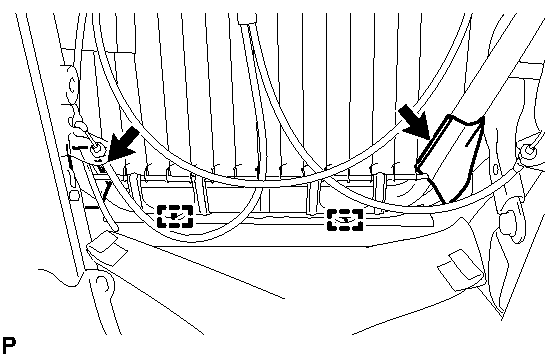

      Fig 7: Locating Hog Rings
      GTY200404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 hog rings.
    4. Separate the 3 buttons.
      Fig 8: Locating Rear NO. 1 Seat Cushion Cover Buttons
      GTY170200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 12 hooks.
      Fig 9: Locating Rear No. 1 Seat Cushion Cover Hooks
      GTY168694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 4 hog rings and the rear No. 1 seat cushion cover with pad.

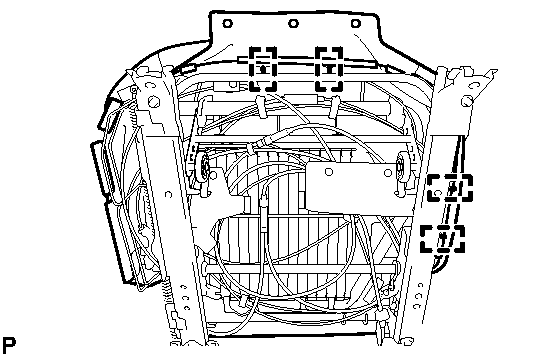

      Fig 10: Identifying Hog Rings And Rear No. 1 Seat Cushion Cover
      GTY200405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 1 REAR SEAT COVER LH
    1. Disengage the 2 hooks and remove the No. 1 rear seat cover LH.
      Fig 11: Identifying No. 1 Rear Seat Cover LH And Hooks
      GTY184325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 REAR SEAT COVER RH
    1. Disengage the 4 hooks and remove the No. 1 rear seat cover RH.
      Fig 12: Identifying No. 1 Rear Seat Cover RH And Hooks
      GTY200406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 2 REAR SEAT COVER
    1. Disengage the 2 hooks and remove the No. 2 rear seat cover.
      Fig 13: Identifying No. 2 Rear Seat Cover And Hooks
      GTY200407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE SEPARATE TYPE REAR NO. 1 SEAT CUSHION COVER
    1. Remove the 11 hog rings and the separate type rear No. 1 seat cushion cover.

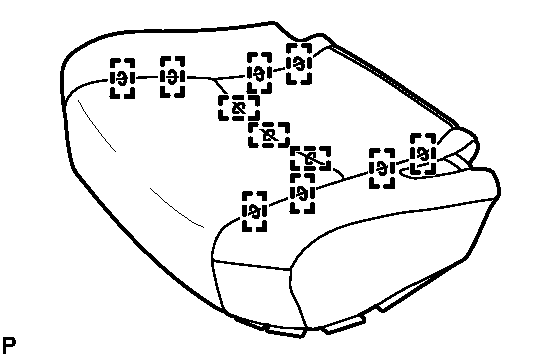

      Fig 14: Identifying Separate Type Rear No. 1 Seat Cushion Cover Hog Rings
      GTY199436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 1 REAR SEAT ARMREST CAP

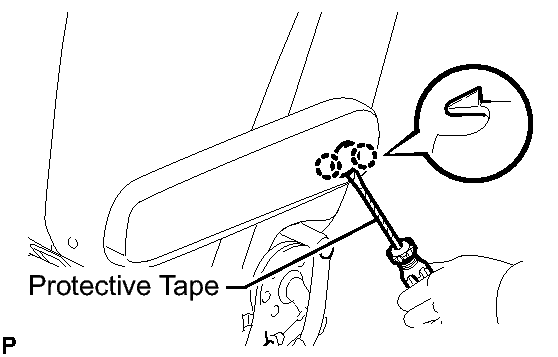

    1. Using a screwdriver wrapped with protective tape, disengage the 2 claws and remove the No. 1 rear seat armrest cap.
      Fig 15: Removing No. 1 Rear Seat Armrest Cap
      GTY199437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR SEAT ARMREST ASSEMBLY
    1. Remove the bolt, washer, wave washer and the rear seat armrest assembly.
      Fig 16: Identifying Rear Seat Armrest Assembly Bolt
      GTY199439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE TONNEAU COVER HOOK HOLDER
    1. Remove the 2 screws and the 2 tonneau cover hook holders.
      Fig 17: Identifying Tonneau Cover Hook Holders And Screw
      GTY185873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REAR SEATBACK COVER
    1. Disengage the 4 claws and remove the rear seatback cover.
      Fig 18: Identifying Rear Seatback Cover And Claws
      GTY186261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE RECLINING REMOTE CONTROL LEVER KNOB
    1. Remove the screw and the reclining remote control lever knob as shown in the illustration.

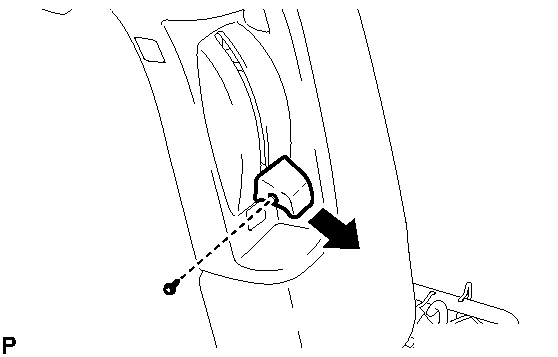

      Fig 19: Removing Screw And Remote Control Knob
      GTY188244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR SEAT LOCK STRIKER COVER CAP

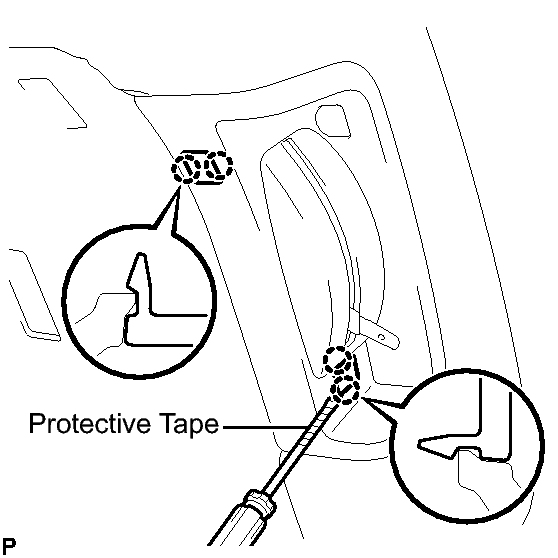

    1. Using a screwdriver wrapped with protective tape, disengage the 4 claws and remove the 2 rear seat lock striker cover caps.
      Fig 20: Identifying Caps And Claws
      GTY174968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE NO. 1 REAR SEATBACK LOCK STRIKER COVER
    1. Using a screwdriver wrapped with protective tape, disengage the 2 claws and remove the No. 1 rear seatback lock striker cover.

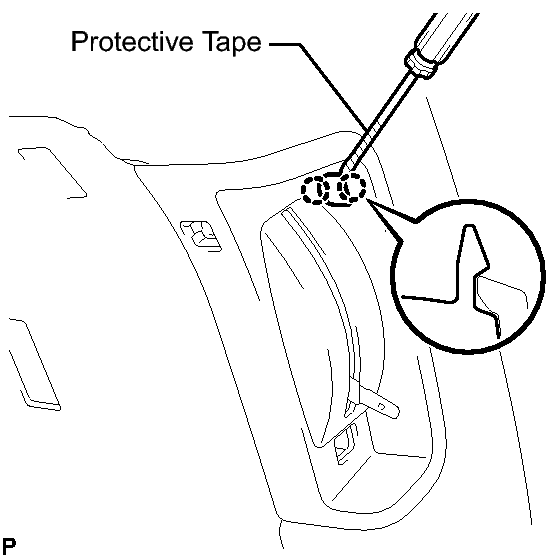

      Fig 21: Disengaging Claws
      GTY178471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE NO. 1 REAR SEAT BEZEL COVER
    1. Remove the 3 screws and the No. 1 rear seat bezel cover.
      Fig 22: Identifying No. 1 Rear Seat Bezel Cover Screws
      GTY199441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE REAR SEAT LOCK STRIKER COVER

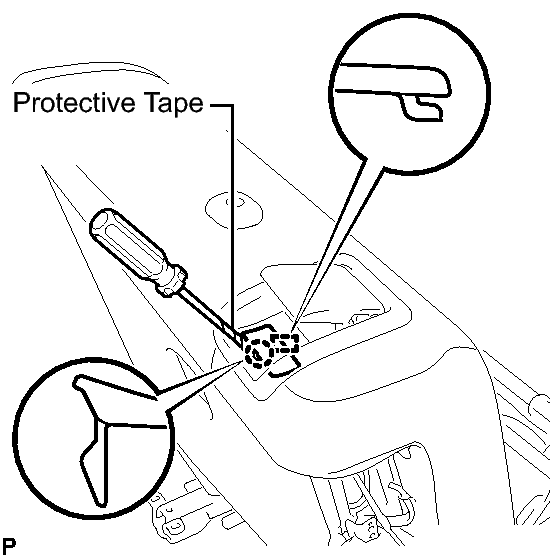

    1. Using a screwdriver wrapped with protective tape, disengage the claw.
      Fig 23: Disengaging Claw
      GTY199442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide and remove the rear seat lock striker cover.
  21. REMOVE REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Remove the 2 screws.
      Fig 24: Identifying Rear Seat Lock Control Lever Sub-Assembly Screws And Guide
      GTY199444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide.
    3. Disconnect the rear seat lock control cable and remove the rear seat lock control lever sub-assembly as shown in the illustration.

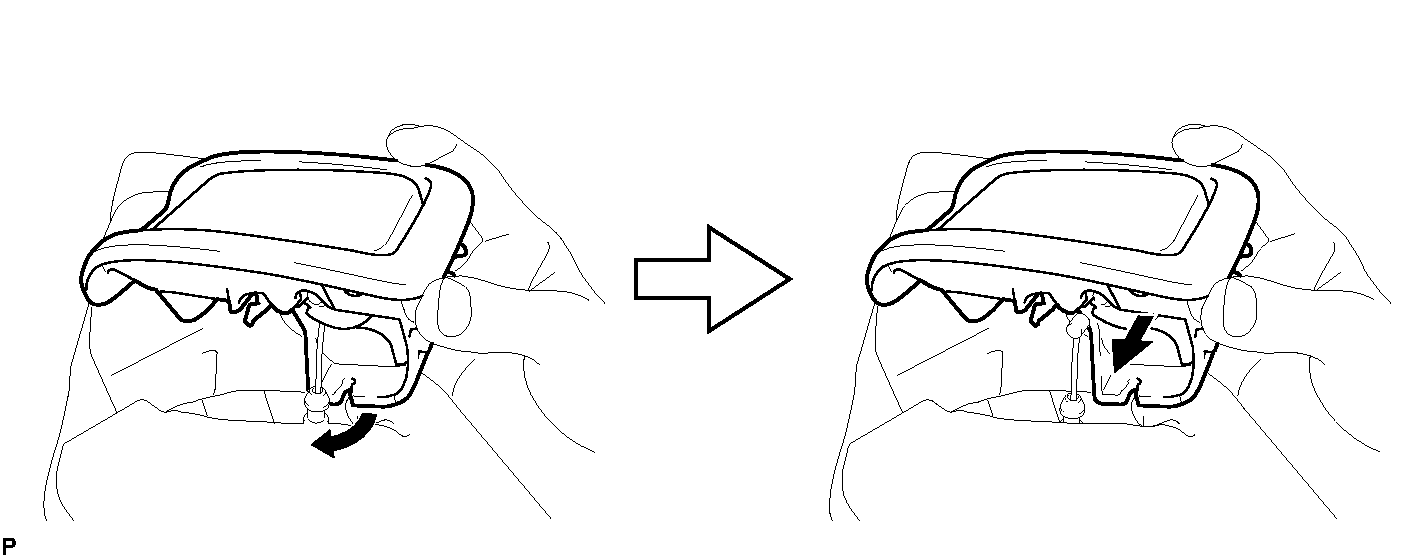

      Fig 25: Removing Rear Seat Lock Control Lever Sub-Assembly
      GTY174314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE REAR SEATBACK BOARD CARPET ASSEMBLY
    1. Disengage the 18 claws as shown in the illustration.
      Fig 26: Identifying Rear Seatback Board Carpet Assembly Claws, Clips & Guides With Rear No. 2 Seat
      GTY199446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clips.
    3. Disengage the 2 guides and remove the rear seatback board carpet assembly.
  23. REMOVE REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY LH
    1. Disengage the 2 claws and remove the rear No. 1 seat headrest support assembly LH.
      Fig 27: Identifying Rear No. 1 Seat Headrest Support Assembly LH Claws
      GTY199480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY RH
    1. Disengage the 2 claws and remove the rear No. 1 seat headrest support assembly RH.
      Fig 28: Identifying Rear No. 1 Seat Headrest Support Assembly RH Claws
      GTY182390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE REAR NO. 1 SEATBACK COVER WITH PAD
    1. Disengage the hook.

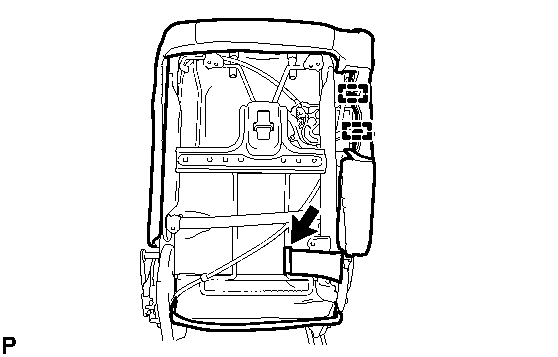

      Fig 29: Locating Rear No. 1 Seatback Cover Hooks
      GTY199447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 hog rings and the rear No. 1 seatback cover with pad.
  26. REMOVE SEPARATE TYPE REAR NO. 1 SEATBACK COVER

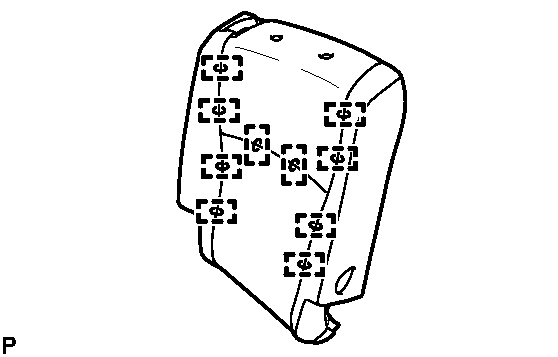

    1. Remove the 10 hog rings and the separate type rear No. 1 seatback cover.
      Fig 30: Identifying Separate Type Rear No. 1 Seatback Cover Hog Rings
      GTY199448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE REAR SEAT RECLINING INNER PROTECTOR
    1. Disengage the claw and remove the rear seat reclining inner protector.
      Fig 31: Identifying Rear Seat Reclining Inner Protector And Claw
      GTY200408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE REAR SEAT RECLINING INNER REAR COVER
    1. Remove the screw.
      Fig 32: Identifying Rear Seat Reclining Inner Rear Cover And Claws
      GTY200409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and remove the rear seat reclining inner rear cover.
  29. REMOVE REAR SEAT RECLINING INNER FRONT COVER
    1. Remove the screw and the rear seat reclining inner front cover.
      Fig 33: Identifying Rear Seat Reclining Inner Front Cover And Screw
      GTY200410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE REAR SEATBACK INNER COVER
    1. Remove the 2 screws.
      Fig 34: Identifying Rear Seatback Inner Cover And Screw
      GTY200411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and remove the rear seatback inner cover.
  31. REMOVE RECLINING ADJUSTER INSIDE COVER RH
    1. Disengage the claw.
      Fig 35: Identifying Reclining Adjuster Inside Cover RH And Claws
      GTY200412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide and remove the reclining adjuster inside cover RH.
  32. REMOVE NO. 1 REAR SEAT RECLINING COVER
    1. Remove the screw.
      Fig 36: Identifying No. 1 Rear Seat Reclining Cover And Screw
      GTY200413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides and remove the No. 1 rear seat reclining cover.
  33. REMOVE NO. 1 REAR SEAT COVER

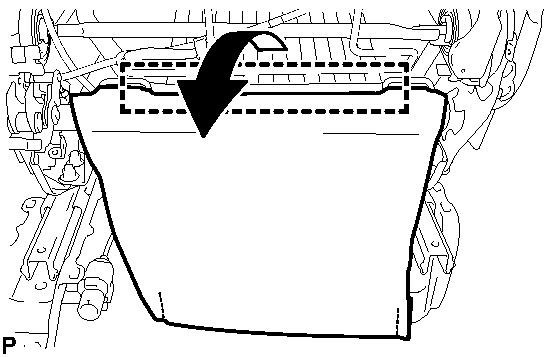

    1. Disengage the hook and remove the No. 1 rear seat cover.
      Fig 37: Removing No. 1 Rear Seat Cover
      GTY179669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE SEAT ADJUSTER CONTROL CABLE ASSEMBLY
    1. Disengage the hook and separate the seat adjuster control cable assembly with the rear seat hook.
      Fig 38: Identifying Seat Adjuster Control Cable Assembly With Rear Seat Hook
      GTY200414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 cable clamps.
    3. Disengage the claw and remove the seat adjuster control cable assembly.
  35. REMOVE REAR SEAT HOOK
    1. Disengage the claw and remove the rear seat hook.
      Fig 39: Identifying Rear Seat Hook And Claw
      GTY200415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE SEAT TRACK CONTROL CABLE ASSEMBLY
    1. Remove the 2 clamps.
      Fig 40: Identifying Seat Track Control Cable Assembly And Claws
      GTY189746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 cable clamps and remove the seat track control cable assembly.
  37. REMOVE REAR SEAT RECLINING CONTROL CABLE SUB-ASSEMBLY
    1. Remove the clamp.
      Fig 41: Identifying Rear Seat Reclining Control Cable Sub-Assembly (w/ Rear No. 2 Seat)
      GTY200416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 6 cable clamps and remove the rear seat reclining control cable sub-assembly.
  38. REMOVE REAR SEAT CUSHION SPRING ASSEMBLY
    1. Using a T45 "TORX" socket, remove the 4 "TORX" bolts, bushes, and the rear seat cushion spring assembly.
      Fig 42: Identifying Rear Seat Cushion Spring Assembly, Bolts And Bushes
      GTY200417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE REAR SEATBACK LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Remove the 2 nuts.
      Fig 43: Identifying Rear Seatback Lock Control Lever Sub-Assembly And Nuts
      GTY178041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide and remove the rear seatback lock control lever sub-assembly.
  40. REMOVE REAR SEATBACK STOPPER SUB-ASSEMBLY
    1. Disconnect the 4 cable clamps.
      Fig 44: Locating Cable Clamps
      GTY181267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and the rear seatback stopper sub-assembly.
      Fig 45: Identifying Rear Seatback Stopper Sub-Assembly
      GTY174445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
