REAR NO. 1 SEAT INNER BELT ASSEMBLY (for RH Side): Removal: Removal

  1. REMOVE REAR SEAT HEADREST ASSEMBLY  . Refer to REMOVAL - Step 1
  2. REMOVE REAR SEAT TRACK BRACKET COVER  . Refer to REMOVAL - Step 2
  3. REMOVE REAR OUTER TRACK BRACKET COVER  . Refer to REMOVAL - Step 3
  4. REMOVE REAR INNER TRACK BRACKET COVER  . Refer to REMOVAL - Step 4
  5. REMOVE REAR SEAT LEG SIDE COVER  . Refer to REMOVAL - Step 5
  6. DISCONNECT REAR NO. 1 SEAT LOCK CABLE ASSEMBLY  . Refer to REMOVAL - Step 6
  7. REMOVE REAR NO. 1 SEAT ASSEMBLY  . Refer to REMOVAL - Step 7
  8. REMOVE REAR NO. 1 SEAT INNER BELT ASSEMBLY
    1. Remove the bolt and the rear No. 1 seat inner belt assembly.

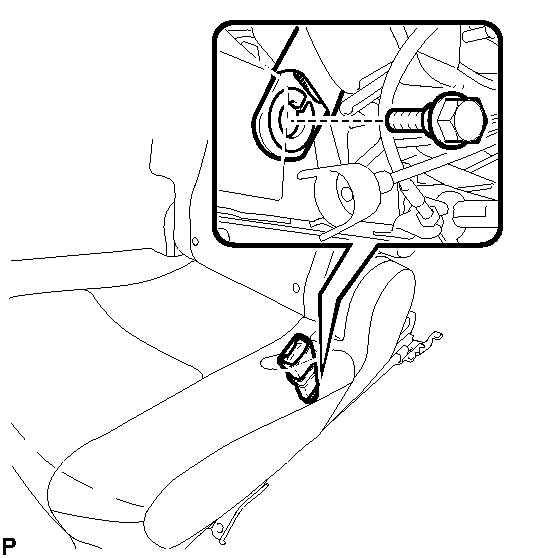

      Fig 1: Identifying Rear No. 1 Seat Inner Belt Assembly Bolt
      GTY198923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
