INSTALL REAR EXHAUST PIPE NO. 1 SUPPORT BRACKET
1. Install the rear support bracket with the 2 bolts.

  Fig 1: Locating Rear Support Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 33 N*m ( 337 kgf*cm, 24 ft.*lbf)

  NOTE:
  Be sure to install the bracket in the correct direction.
INSTALL HEATED OXYGEN SENSOR . Refer to INSTALLATION - Step 1
INSTALL EXHAUST FRONT PIPE ASSEMBLY
1. Install 2 new gaskets to the exhaust front pipe.
2. Install the exhaust front pipe to the exhaust manifolds with the 4 nuts.

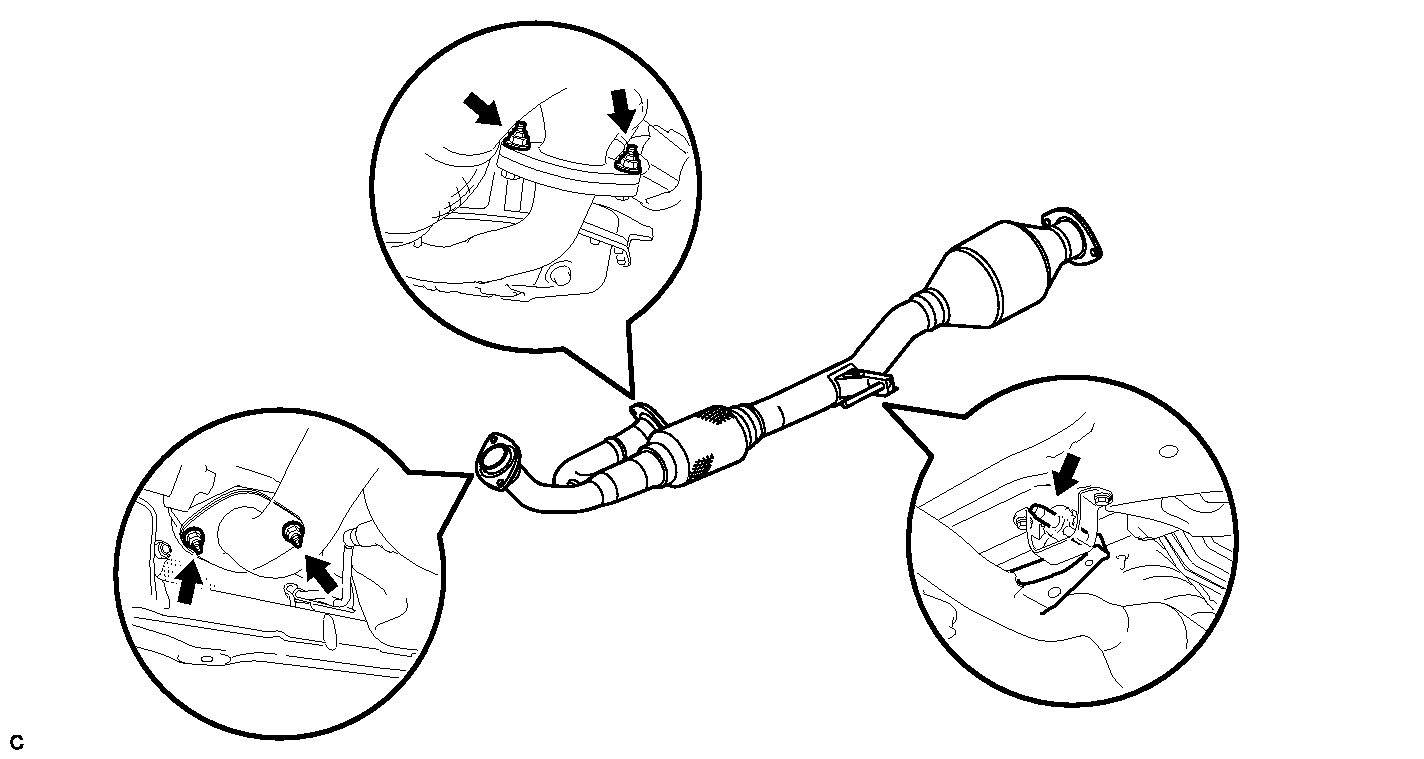

  Fig 2: Locating Exhaust Front Pipe Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 62 N*m ( 632 kgf*cm, 46 ft.*lbf)
INSTALL FRONT EXHAUST PIPE NO. 1 SUPPORT BRACKET
1. Install the front support brackets with the 2 nuts.

  Fig 3: Locating Front Support Brackets Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 33 N*m ( 337 kgf*cm, 24 ft.*lbf)

  NOTE:
  Be sure to install the support brackets in the correct direction.
INSTALL EXHAUST CENTER PIPE ASSEMBLY
1. Install a new gasket to the exhaust center pipe assembly.
2. Install the exhaust center pipe to the exhaust front pipe with the 2 nuts and 2 bolts.

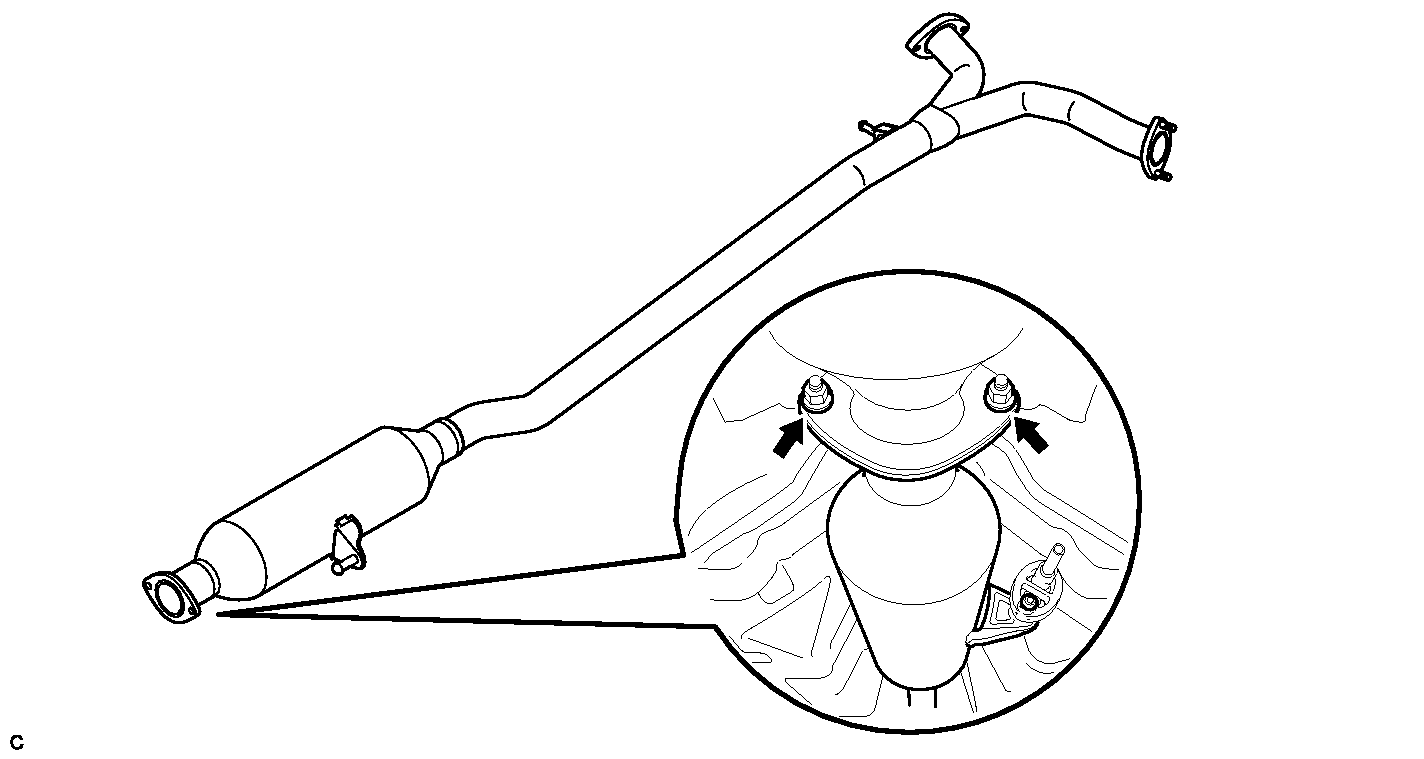

  Fig 4: Locating Exhaust Center Pipe Assembly Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 56 N*m ( 571 kgf*cm, 41 ft.*lbf)
INSTALL EXHAUST TAIL PIPE ASSEMBLY
1. Install 2 new gaskets to the exhaust tail pipes.
2. Install the 2 exhaust tail pipes with the 4 nuts.

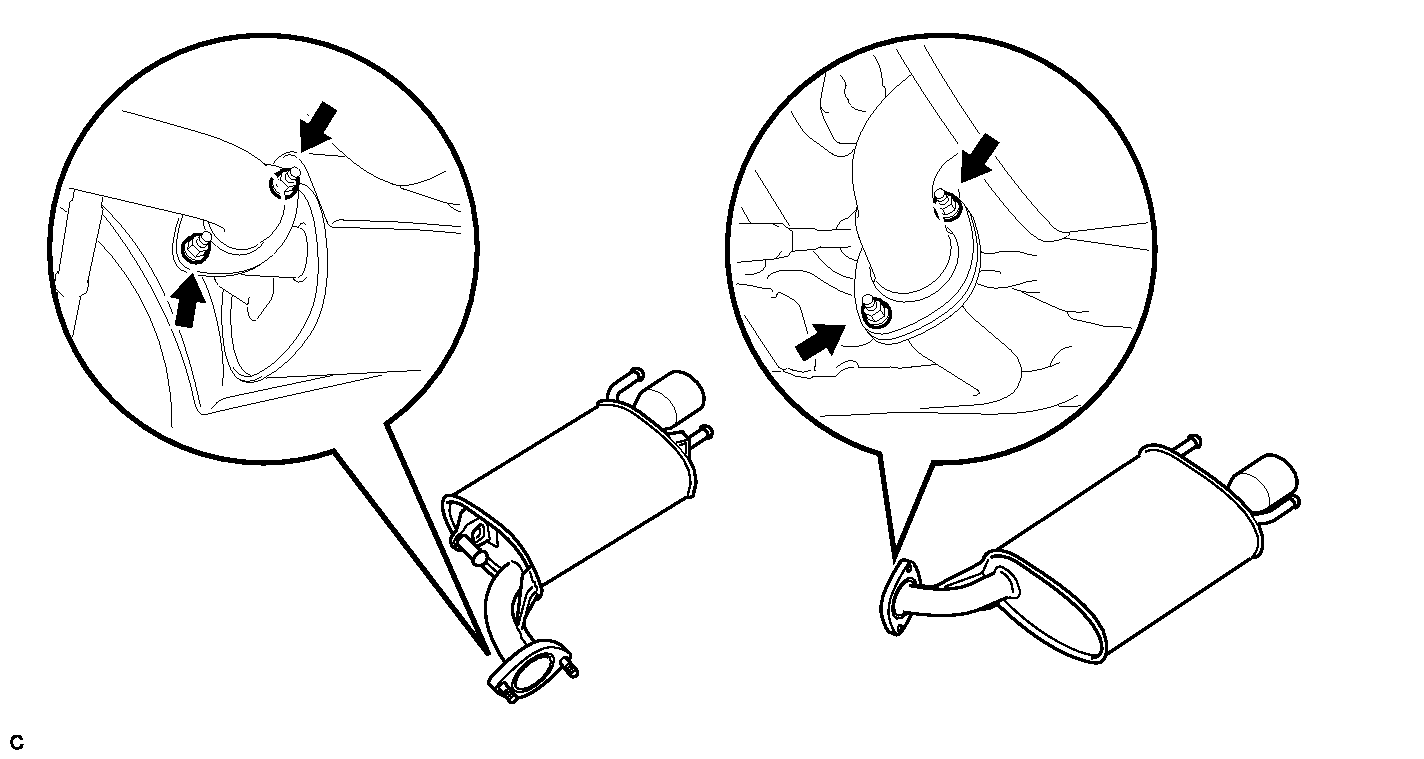

  Fig 5: Locating Exhaust Tail Pipes Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 43 N*m ( 438 kgf*cm, 32 ft.*lbf)
CHECK FOR EXHAUST GAS LEAKS
If gas is leaking, tighten the areas necessary to stop the leak. Replace the damaged parts as necessary.
