Instrument Panel Safety Pad: Removal: Removal

  1. PRECAUTION

    Refer to PRECAUTION

  2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

  4. REMOVE LOWER NO. 3 STEERING WHEEL COVER  . Refer to REMOVAL - Step 4
  5. REMOVE LOWER NO. 2 STEERING WHEEL COVER  . Refer to REMOVAL - Step 4
  6. REMOVE STEERING PAD  . Refer to REMOVAL - Step 5
  7. REMOVE STEERING WHEEL ASSEMBLY  . Refer to REMOVAL - Step 13
  8. REMOVE FRONT DOOR SCUFF PLATE LH  . Refer to REMOVAL - Step 30
  9. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH  . Refer to REMOVAL - Step 41
  10. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made)
    1. Remove the bolt <A> and the screw <B>.
      Fig 1: Identifying Lower Instrument Panel Finish Panel Claw And Clips (For TMC Made)
      GTY196693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the hood lock control cable assembly.
    3. Disengage the claw and the 9 clips.
    4. Remove the air hose, disconnect the connector, and then remove the lower instrument panel finish panel LH.
  11. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made)
    1. Remove the bolt <N> and the screw <O>.
      Fig 2: Identifying Bolt <N>, Screw <O>, Hood Lock Control Cable Assembly, Claw And The 9 Clips
      GTY180070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the hood lock control cable assembly.
    3. Disengage the claw and the 9 clips.
    4. Remove the air hose, disconnect the connector, and then remove the lower instrument panel finish panel LH.
  12. REMOVE STEERING COLUMN COVER (for TMC Made)
    1. Remove the 2 screws <D>.
      Fig 3: Identifying Steering Column Cover Claws (For TMC Made)
      GTY169535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and remove the lower steering column cover.
    3. Disengage the claw and remove the upper steering column cover.
  13. REMOVE STEERING COLUMN COVER (for TMMK Made)
    1. Remove the 2 screws <Q>.
      Fig 4: Identifying Steering Column Cover Claws (For TMMK Made)
      GTY197214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and remove the lower steering column cover.
    3. Disengage the claw and remove the upper steering column cover.
  14. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  . Refer to REMOVAL - Step 15
  15. REMOVE NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY
    1. Disengage the 3 claws and the 2 clips.
      Fig 5: Identifying Instrument Panel Sub-Assembly Claws And Clips
      GTY169567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the instrument panel sub-assembly.
  16. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL (w/o Smart Key System)
    1. Disengage the 2 claws and 2 clips, and then remove the lower instrument panel finish panel.
      Fig 6: Identifying Lower Instrument Panel Finish Panel Claws And Clips (W/O Smart Key System)
      GTY196694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL (w/ Smart Key System)
    1. Disengage the 2 claws and 2 clips.
      Fig 7: Identifying Lower Instrument Panel Finish Panel Claws And Clips (W/ Smart Key System)
      GTY196695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the lower instrument panel finish panel.
  18. REMOVE INSTRUMENT CLUSTER FINISH PANEL NO. 1
    1. Remove the 2 clips.
      Fig 8: Identifying Instrument Cluster Finish Panel Guide And Claws
      GTY196696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide and 4 claws, and then remove the instrument cluster finish panel.
  19. REMOVE COMBINATION METER ASSEMBLY (for TMC Made)
    1. Remove the 4 screws <E>.
      Fig 9: Locating Combination Meter Assembly Screws (For TMC Made)
      GTY196697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect each connector and remove the combination meter assembly.
  20. REMOVE COMBINATION METER ASSEMBLY (for TMMK Made)
    1. Remove the 4 screws <R>.
      Fig 10: Locating Combination Meter Assembly Screws (For TMMK Made)
      GTY196698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect each connector and remove the combination meter assembly.
  21. REMOVE FRONT DOOR SCUFF PLATE RH  . Refer to REMOVAL - Step 47
  22. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH  . Refer to REMOVAL - Step 48
  23. REMOVE INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY
    1. Disengage the 4 claws.

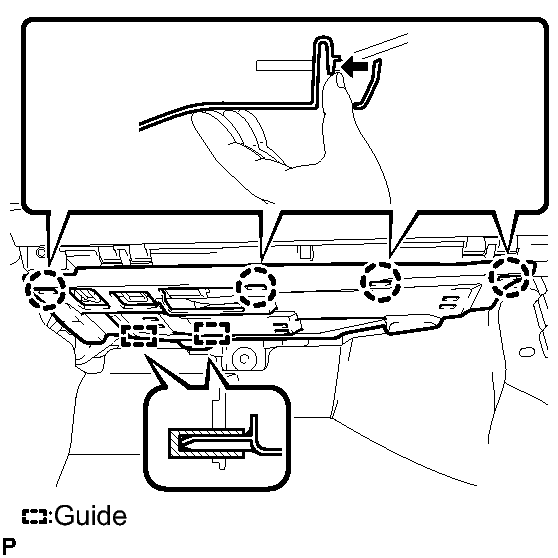

      Fig 11: Identifying No. 2 Under Cover Sub-Assembly Claws
      GTY196700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides and remove the No. 2 under cover sub-assembly.
  24. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMC Made)
    1. Remove the bolt <A>.
      Fig 12: Identifying Lower Instrument Panel Sub-Assembly Claws And Clips
      GTY190831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 screws <B>.
    3. Disengage the 3 claws and the 3 clips.
    4. Disconnect the connector and remove the lower instrument panel sub-assembly.
  25. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMMK Made)
    1. Remove the bolt <N>.
      Fig 13: Identifying Lower Instrument Panel Sub-Assembly Claws And Clips (For TMMK Made)
      GTY196702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the screw <O> or <P> and the 3 screws <O>.
    3. Disengage the 3 claws and the 3 clips.
    4. Disconnect the connector and remove the lower instrument panel sub-assembly.
  26. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)
    1. Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.

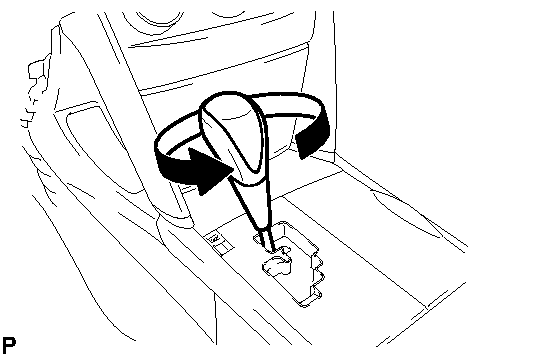

      Fig 14: Turning Shift Lever Knob Counterclockwise
      GTY184240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
    1. Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.

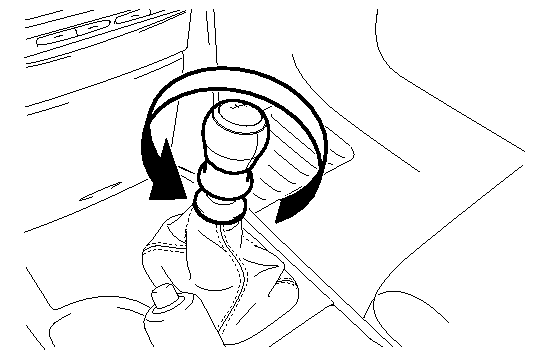

      Fig 15: Shift Lever Knob Counterclockwise
      GTY172326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
    1. Disengage the 2 clips and remove the No. 1 instrument cluster finish panel garnish.
      Fig 16: Identifying No. 1 Instrument Cluster Finish Panel Garnish Clips
      GTY196703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
    1. Disengage the 2 clips and remove the No. 2 instrument cluster finish panel garnish.
      Fig 17: Identifying No. 2 Instrument Cluster Finish Panel Garnish Clips
      GTY196704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for Automatic Transaxle)
    1. Disengage the 6 claws and the 3 clips, and then remove the floor shift position indicator housing sub-assembly.
      Fig 18: Identifying Floor Shift Position Indicator Housing Sub-Assembly Claws And Clips
      GTY196705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. with Seat Heater System:
      1. Disconnect each connector.
  31. REMOVE UPPER CONSOLE PANEL (for Manual Transaxle)
    1. Open the lid of the upper console panel.

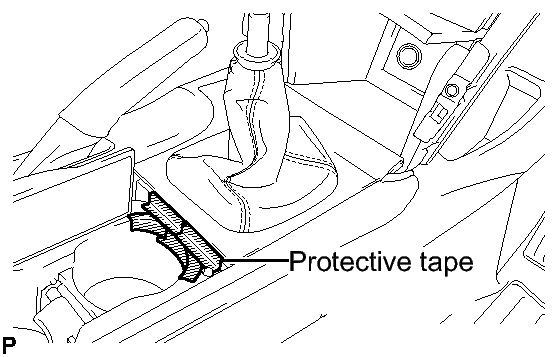

      Fig 19: Applying Protective Tape To Upper Console Panel
      GTY197193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply protective tape to the area shown in the illustration.
    3. Using a molding remover, disengage the 2 claws and the 5 clips, and then remove the upper console panel as shown in the illustration.

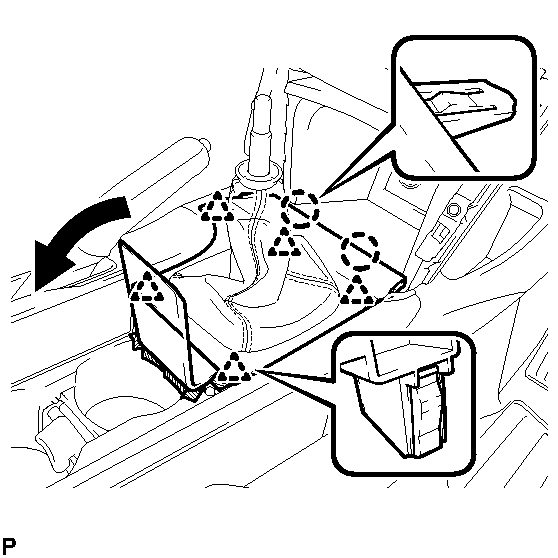

      Fig 20: Removing Upper Console Panel
      GTY197194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Automatic Transaxle)
    1. Disengage the 3 claws and the 5 clips.
      Fig 21: Identifying Upper Console Rear Panel Sub-Assembly Claws And Clips (For Automatic Transaxle)
      GTY185010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the upper console rear panel sub-assembly.
  33. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Manual Transaxle)
    1. Disengage the 3 claws and the 5 clips.
      Fig 22: Identifying Upper Console Rear Panel Sub-Assembly Claws And Clips (For Manual Transaxle)
      GTY197196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the upper console rear panel sub-assembly.
  34. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMC Made)
    1. Remove the 2 screws <F>.
      Fig 23: Locating Upper Console Panel Sub-Assembly Claws And Screws (For TMC Made)
      GTY196706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws.
    3. Disconnect each connector and remove the upper console panel sub-assembly.

      HINT:

      Set the shift lever in the D position.

  35. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMMK Made)
    1. Remove the 2 screws <O>.
      Fig 24: Locating Upper Console Panel Sub-Assembly Claws And Screws (For TMMK Made)
      GTY196707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws.
    3. Disconnect each connector and remove the upper console panel sub-assembly.

      HINT:

      Set the shift lever in the D position.

  36. REMOVE INSTRUMENT PANEL NO. 2 REGISTER ASSEMBLY
    1. Apply protective tape to the areas shown in the illustration.

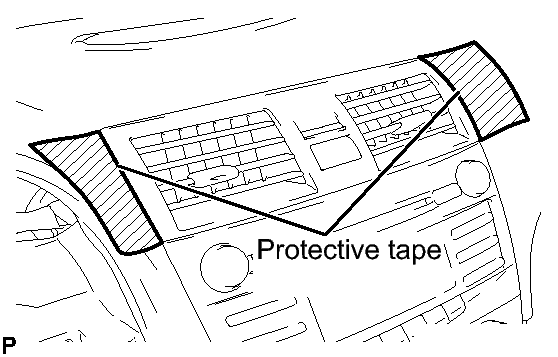

      Fig 25: Applying Protective Tape To Instrument Panel No. 2 Register Assembly
      GTY196708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a molding remover, disengage the 3 clips.

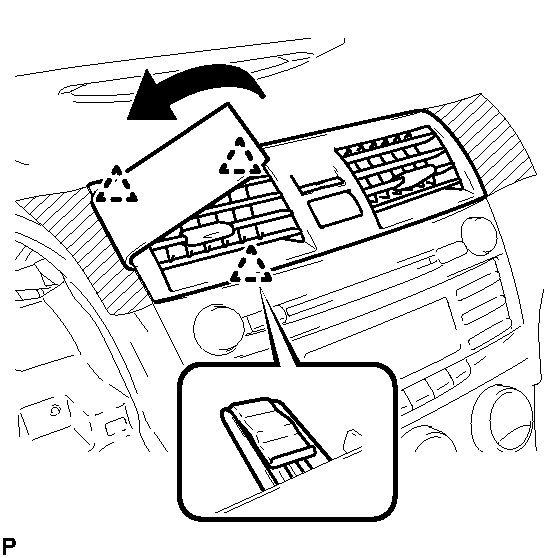

      Fig 26: Disengaging Instrument Panel No. 2 Register Assembly Clips
      GTY196709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a molding remover, disengage the 4 clips.

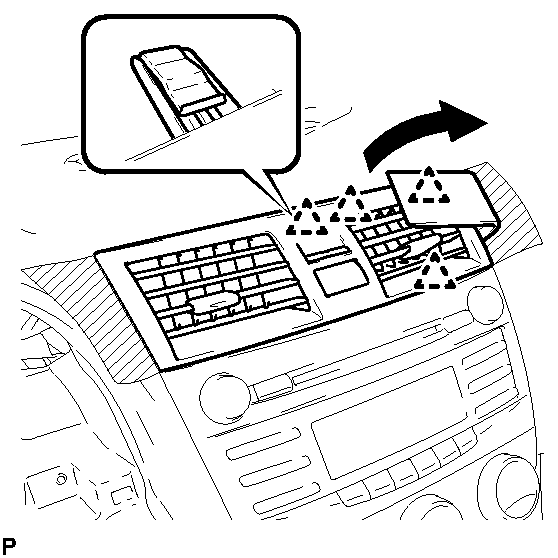

      Fig 27: Removing Instrument Panel No. 2 Register Assembly Clips
      GTY176569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the connector and remove the instrument panel No. 2 register assembly.
  37. REMOVE RADIO RECEIVER WITH HEATER CONTROL PANEL ASSEMBLY (w/o Navigation System)  . Refer to REMOVAL - Step 11
  38. REMOVE NAVIGATION RECEIVER WITH HEATER CONTROL PANEL ASSEMBLY (w/ Navigation System)  . Refer to REMOVAL - Step 12
  39. REMOVE CONSOLE BOX POCKET
    1. Remove the console box pocket.
  40. REMOVE CONSOLE BOX CARPET
    1. Remove the console box carpet.
      Fig 28: Identifying Console Box Carpet
      GTY196715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE CONSOLE BOX ASSEMBLY (for TMC Made)
    1. Remove the 2 screws <F>.
      Fig 29: Locating Console Box Assembly Screws
      GTY196713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
      Fig 30: Locating Console Box Assembly Bolts
      GTY197669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts <G> and the console box assembly.
  42. REMOVE CONSOLE BOX ASSEMBLY (for TMMK Made)
    1. Remove the 2 screws <O>.
      Fig 31: Locating Console Box Assembly Screws
      GTY196714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
      Fig 32: Locating Console Box Assembly Bolts
      GTY182682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts <S> or <T> and the console box assembly.
  43. REMOVE NO. 2 CONSOLE BOX INSERT FRONT (for TMC Made)
    1. Remove the 3 screws <F>.
      Fig 33: Identifying No. 2 Console Box Insert Front Clip And Screws (For TMC Made)
      GTY196716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clip and remove the No. 2 console box insert front.
  44. REMOVE NO. 2 CONSOLE BOX INSERT FRONT (for TMMK Made)
    1. Remove the 3 screws <O>.
      Fig 34: Identifying No. 2 Console Box Insert Front Clip And Screws (For TMMK Made)
      GTY196717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clip and remove the No. 2 console box insert front.
  45. REMOVE NO. 1 CONSOLE BOX INSERT FRONT (for TMC Made)
    1. Remove the 3 screws <F>.
      Fig 35: Identifying No. 1 Console Box Insert Front Clip And Screws (For TMC Made)
      GTY196718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clip and remove the No. 1 console box insert front.
  46. REMOVE NO. 1 CONSOLE BOX INSERT FRONT (for TMMK Made)
    1. Remove the 3 screws <O>.
      Fig 36: Identifying No. 1 Console Box Insert Front Clip And Screws (For TMMK Made)
      GTY196719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clip and remove the No. 1 console box insert front.
  47. REMOVE FRONT PILLAR GARNISH LH  . Refer to REMOVAL - Step 56
  48. REMOVE INSTRUMENT PANEL NO. 1 REGISTER ASSEMBLY
    1. Disengage the 4 clips and remove the instrument panel No. 1 register assembly.
      Fig 37: Identifying Instrument Panel No. 1 Register Assembly Clips
      GTY167918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE INSTRUMENT PANEL NO. 1 SPEAKER PANEL SUB-ASSEMBLY
    1. Disengage the 6 claws and the 2 clips.
      Fig 38: Identifying Instrument Panel No. 1 Speaker Panel Sub-Assembly Claws And Clips
      GTY196720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides and remove the instrument panel No. 1 speaker panel sub-assembly.
  50. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)  . Refer to REMOVAL - Step 10
  51. REMOVE FRONT PILLAR GARNISH RH  . Refer to REMOVAL - Step 57
  52. REMOVE INSTRUMENT PANEL NO. 3 REGISTER ASSEMBLY
    1. Disengage the 4 clips and remove the instrument panel No. 3 register assembly.
      Fig 39: Identifying Instrument Panel No. 3 Register Assembly Clips
      GTY167785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. REMOVE INSTRUMENT PANEL NO. 2 SPEAKER PANEL SUB-ASSEMBLY
    1. Disengage the 6 claws and the 2 clips.
      Fig 40: Identifying Instrument Panel No 2 Speaker Panel Claws And Clips
      GTY196721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides and remove the instrument panel No. 2 speaker panel sub-assembly.
  54. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)

    HINT:

    Use the same procedures for the RH side and the LH side. Refer to REMOVAL - Step 10 .

  55. REMOVE NO. 1 DEFROSTER NOZZLE GARNISH
    1. Disengage the 8 clips and the 4 guides.
      Fig 41: Identifying No. 1 Defroster Nozzle Garnish Clips And Guides
      GTY196722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect each connector and remove the No. 1 defroster nozzle garnish.
  56. DISCONNECT INSTRUMENT PANEL WIRE ASSEMBLY  . Refer to REMOVAL - Step 57
  57. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY (for TMC Made)
    1. Disengage each clamp.
    2. Disconnect each connector.
    3. Remove the bolt <J>.
    4. Remove the 2 passenger airbag bolts <K>.
    5. with Plasmacluster:
      1. Disconnect the connector.
        Fig 42: Locating Instrument Panel Safety Pad Assembly Connectors (For TMC Made)
        GTY196723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 2 bolts <C> or <H>.
    7. Remove the 2 nuts <Z>.
    8. Disengage the 5 claws and remove the instrument panel safety pad assembly.
      Fig 43: Identifying 2 Bolts, 2 Nuts & 5 Claws
      GTY168170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  58. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY (for TMMK Made)
    1. Disengage each clamp.
    2. Disconnect each connector.
    3. Remove the bolt <Y>.
    4. Remove the 2 passenger airbag bolts <V>.
    5. with Plasmacluster:
      1. Disconnect the connector.
        Fig 44: Identifying Instrument Panel Safety Pad Assembly Connectors (For TMMK Made)
        GTY196724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 2 bolts <I>, <N> or <a>.
    7. Remove the 2 nuts <U>.
    8. Disengage the 5 claws and remove the instrument panel safety pad assembly.
      Fig 45: Identifying 2 Bolts <I>, <N> Or <A>, 2 Nuts <U> & 5 Claws
      GTY167134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  59. REMOVE NO. 3 INSTRUMENT PANEL STAY
    1. Disengage the claw and remove the 5 No. 3 instrument panel stays.
      Fig 46: Identifying Instrument Panel Stay Claws
      GTY196728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
