Front Passenger Airbag Assembly: Removal: Removal

  1. TABLE OF BOLT, SCREW AND NUT

    HINT:

    Refer to PRECAUTION

  2. PRECAUTION
    WARNING:

    Be sure to read "PRECAUTION" thoroughly before servicing. Refer to PRECAUTION for TMC made. Refer to PRECAUTION except TMC made).

  3. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  4. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

  5. REMOVE LOWER NO. 3 STEERING WHEEL COVER  See step  3
  6. REMOVE LOWER NO. 2 STEERING WHEEL COVER  See step  4
  7. REMOVE STEERING PAD  See step  5
  8. REMOVE STEERING WHEEL ASSEMBLY  . Refer to REMOVAL - Step 13
  9. REMOVE FRONT DOOR SCUFF PLATE LH  . Refer to REMOVAL - Step 40
  10. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH  . Refer to REMOVAL - Step 41
  11. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made)  . Refer to REMOVAL - Step 10
  12. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made)  . Refer to REMOVAL - Step 11
  13. REMOVE STEERING COLUMN COVER (for TMC Made)  . Refer to REMOVAL - Step 12
  14. REMOVE STEERING COLUMN COVER (for TMMK Made)  . Refer to REMOVAL - Step 13
  15. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  . Refer to REMOVAL - Step 15
  16. REMOVE NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 15
  17. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL (w/o Smart Key System)  . Refer to REMOVAL - Step 16
  18. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL (w/ Smart Key System)  . Refer to REMOVAL - Step 17
  19. REMOVE INSTRUMENT CLUSTER FINISH PANEL  . Refer to REMOVAL - Step 18
  20. REMOVE COMBINATION METER ASSEMBLY (for TMC Made)  . Refer to REMOVAL - Step 19
  21. REMOVE COMBINATION METER ASSEMBLY (for TMMK Made)  . Refer to REMOVAL - Step 20
  22. REMOVE FRONT DOOR SCUFF PLATE RH  . Refer to REMOVAL - Step 47
  23. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH  . Refer to REMOVAL - Step 48
  24. REMOVE INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 23
  25. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMC Made)  . Refer to REMOVAL - Step 24
  26. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMMK Made)  . Refer to REMOVAL - Step 25
  27. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  . Refer to REMOVAL - Step 26
  28. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  . Refer to REMOVAL - Step 27
  29. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH  . Refer to REMOVAL - Step 28
  30. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH  . Refer to REMOVAL - Step 29
  31. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for Automatic Transaxle)  . Refer to REMOVAL - Step 30
  32. REMOVE UPPER CONSOLE PANEL (for Manual Transaxle)  . Refer to REMOVAL - Step 31
  33. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Automatic Transaxle)  . Refer to REMOVAL - Step 32
  34. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Manual Transaxle)  . Refer to REMOVAL - Step 33
  35. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMC Made)  . Refer to REMOVAL - Step 34
  36. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMMK Made)  . Refer to REMOVAL - Step 35
  37. REMOVE INSTRUMENT PANEL NO. 2 REGISTER ASSEMBLY  . Refer to REMOVAL - Step 36
  38. REMOVE RADIO RECEIVER WITH HEATER CONTROL PANEL ASSEMBLY (w/o Navigation System)  . Refer to REMOVAL - Step 11
  39. REMOVE NAVIGATION RECEIVER WITH HEATER CONTROL PANEL ASSEMBLY (w/ Navigation System)  . Refer to REMOVAL - Step 12
  40. REMOVE CONSOLE BOX POCKET  . Refer to REMOVAL - Step 12
  41. REMOVE CONSOLE BOX CARPET  . Refer to REMOVAL - Step 40
  42. REMOVE CONSOLE BOX ASSEMBLY (for TMC Made)  . Refer to REMOVAL - Step 41
  43. REMOVE CONSOLE BOX ASSEMBLY (for TMMK Made)  . Refer to REMOVAL - Step 42
  44. REMOVE NO. 2 CONSOLE BOX INSERT FRONT (for TMC Made)  . Refer to REMOVAL - Step 43
  45. REMOVE NO. 2 CONSOLE BOX INSERT FRONT (for TMMK Made)  . Refer to REMOVAL - Step 44
  46. REMOVE NO. 1 CONSOLE BOX INSERT FRONT (for TMC Made)  . Refer to REMOVAL - Step 45
  47. REMOVE NO. 1 CONSOLE BOX INSERT FRONT (for TMMK Made)  . Refer to REMOVAL - Step 46
  48. REMOVE FRONT PILLAR GARNISH LH  . Refer to REMOVAL - Step 56
  49. REMOVE INSTRUMENT PANEL NO. 1 REGISTER ASSEMBLY  . Refer to REMOVAL - Step 48
  50. REMOVE INSTRUMENT PANEL NO. 1 SPEAKER PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 49
  51. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)  . Refer to REMOVAL - Step 7
  52. REMOVE FRONT PILLAR GARNISH RH  . Refer to REMOVAL - Step 57
  53. REMOVE INSTRUMENT PANEL NO. 3 REGISTER ASSEMBLY  . Refer to REMOVAL - Step 52
  54. REMOVE INSTRUMENT PANEL NO. 2 SPEAKER PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 53
  55. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)  . Refer to REMOVAL - Step 10
  56. REMOVE NO. 1 DEFROSTER NOZZLE GARNISH  . Refer to REMOVAL - Step 55
  57. DISCONNECT INSTRUMENT PANEL WIRE ASSEMBLY

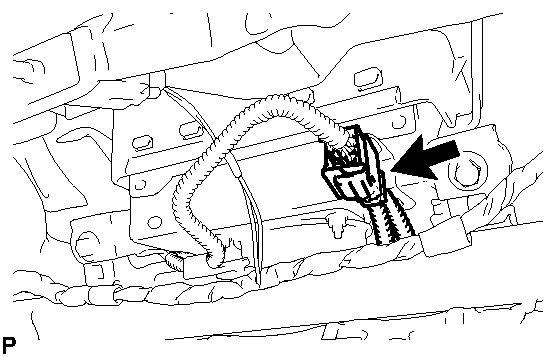

    1. Disconnect the connector.
      Fig 1: Locating Airbag Connector
      GTY170404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  58. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY (for TMC Made)  . Refer to REMOVAL - Step 57
  59. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY (for TMMK Made)  . Refer to REMOVAL - Step 58
  60. REMOVE NO. 3 INSTRUMENT PANEL STAY  . Refer to REMOVAL - Step 59
  61. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY

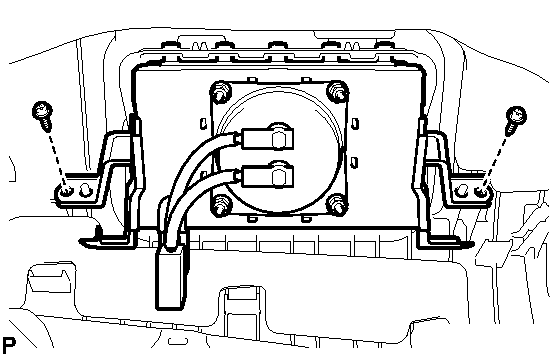

    1. Remove the 2 screws.
      Fig 2: Identifying Front Passenger Airbag Assembly Component Screws
      GTY187201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

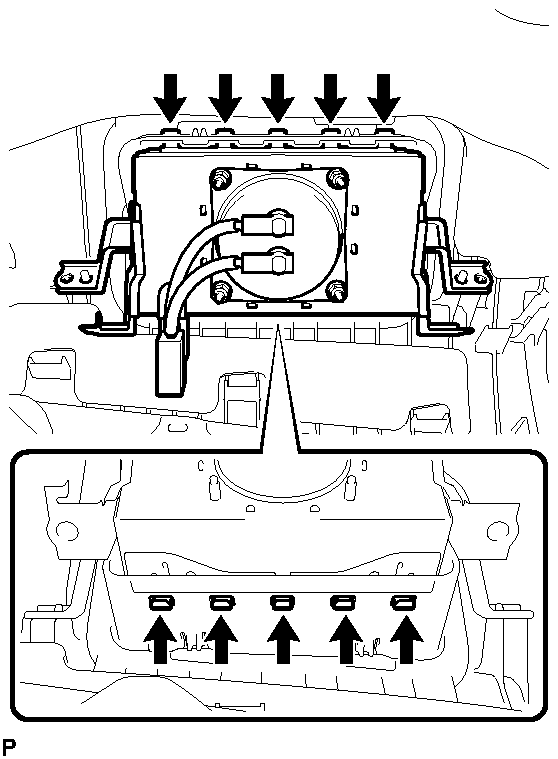

    2. Disengage the 10 hooks and remove the front passenger airbag assembly from the instrument panel.
      Fig 3: Locating Front Passenger Airbag Assembly Component Hooks
      GTY170115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  62. REMOVE INSTRUMENT PANEL WIRE ASSEMBLY

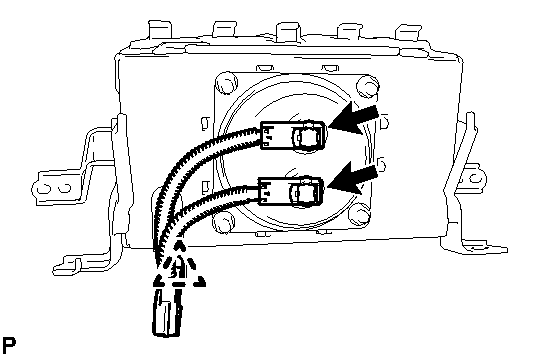

    1. Disconnect the 2 connectors.
      Fig 4: Locating Instrument Panel Wire Assembly Connectors
      GTY201846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clamp and the instrument panel wire assembly from the front passenger airbag assembly.
      NOTE:

      When handling the airbag connector, take care not to damage the airbag wire harness.
