Removal (To 12/2010): Removal

REMOVE CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL . Refer to REMOVAL - Step 10
REMOVE INTEGRATION CONTROL AND PANEL WITH RADIO RECEIVER ASSEMBLY
1. Apply protective tape as shown in the illustration.

  Fig 1: Identifying Protective Tape Application Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Protective Tape
2. Remove the 4 bolts.

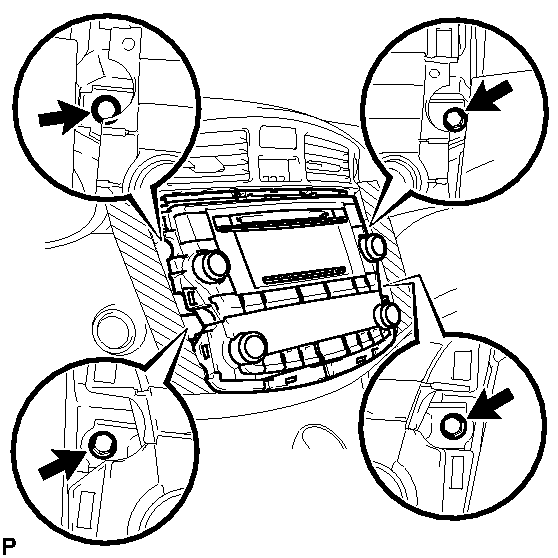

  Fig 2: Locating Integration Control And Panel With Radio Receiver Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disengage the 4 clips.

  Fig 3: Locating Integration Control And Panel With Radio Receiver Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect each connector and remove the integration control and panel with radio receiver assembly.

REMOVE NO. 1 RADIO BRACKET

Remove the 4 bolts and 2 screws to remove the No. 1 radio bracket.

Fig 4: Locating No. 1 Radio Bracket Fasteners

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Bolt
*2	Screw

REMOVE NO. 2 RADIO BRACKET

Remove the 4 bolts and 2 screws to remove the No. 2 radio bracket.

Fig 5: Locating No. 2 Radio Bracket Fasteners

TEXT IN ILLUSTRATION

*1	Bolt
*2	Screw

REMOVE RADIO RECEIVER ASSEMBLY
1. Slide the radio receiver assembly in the direction shown by the arrow to remove the radio receiver assembly.

  Fig 6: Removing Radio Receiver Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
