Air Conditioning Amplifier: Installation

  1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY
    1. Install the air conditioning amplifier assembly as shown in the illustration.

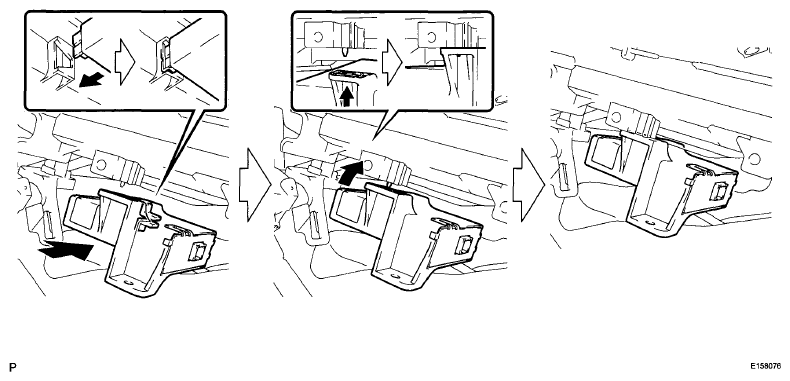

      Fig 1: Identifying Air Conditioning Amplifier Assembly
      G06037769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the screw.
    3. Connect the connector.
  2. INSTALL FRONT NO. 1 CONSOLE BOX INSERT  (See INSTALLATION )
    Fig 2: Locating Air Conditioning Amplifier Assembly Connector And Screw
    G06037767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
