Rear Crankshaft Oil Seal: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
HINT:

See REMOVAL .
REMOVE MANUAL TRANSAXLE ASSEMBLY (for Manual Transaxle)
HINT:

See REMOVAL for C59.
REMOVE AUTOMATIC TRANSAXLE ASSEMBLY (for Automatic Transaxle)
HINT:

See REMOVAL for U341E.
REMOVE CLUTCH COVER ASSEMBLY (for Manual Transaxle) (See REMOVAL )
REMOVE CLUTCH DISC ASSEMBLY (for Manual Transaxle) (See REMOVAL )
REMOVE FLYWHEEL SUB-ASSEMBLY (for Manual Transaxle)

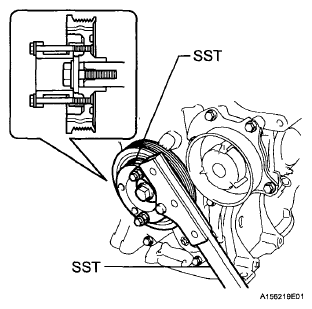

1. Using SST, hold the crankshaft.
  SST 09213-58013, 09330-00021

  NOTE: Check the SST installation positions when installing them to prevent the SST fixing bolts from coming into contact with the timing chain cover sub-assembly.

  Fig 1: Removing Flywheel Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 8 bolts and flywheel.
Fig 2: Locating Flywheel Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY (for Automatic Transaxle)
1. Using SST, hold the crankshaft.
  SST 09213-58013, 09330-00021

  NOTE: Check the SST installation positions when installing them to prevent the SST fixing bolts from coming into contact with the timing chain cover sub-assembly.

  Fig 3: Removing Flywheel Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 8 bolts, rear spacer, drive plate and front spacer.
Fig 4: Locating Drive Plate Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR ENGINE OIL SEAL
1. Using a knife, cut off the lip of the oil seal.
2. Using a screwdriver with its tip wrapped with tape, pry out the oil seal.
NOTE: After removing, check the crankshaft for damage. If damaged, smooth the surface with 400-grit sandpaper.

Fig 5: Removing Rear Engine Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
