Front Crankshaft Oil Seal: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE FRONT WHEEL RH
REMOVE ENGINE UNDER COVER RH
REMOVE NO. 2 CYLINDER HEAD COVER (See REMOVAL )
REMOVE V-RIBBED BELT (See REMOVAL )
REMOVE CRANKSHAFT PULLEY
1. Using SST, hold the pulley in place and loosen the pulley bolt.
  SST 09213-58013, 09330-00021

  NOTE: Check the SST installation positions when installing them to prevent the SST fixing bolts from coming into contact with the timing chain cover sub-assembly.

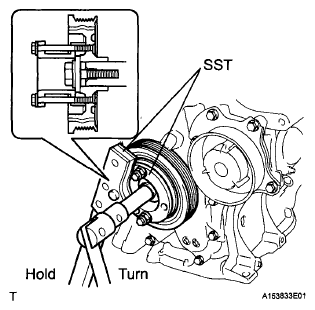

  Fig 1: Removing Crankshaft Pulley
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the crankshaft pulley and pulley bolt.
  SST 09950-50013(09951-05010, 09952-05010, 09953-05020, 09954-05021)

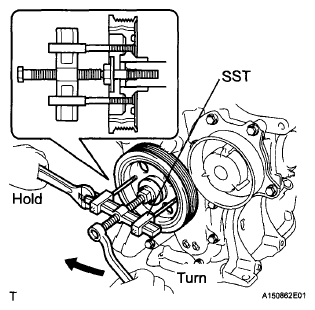

  Fig 2: Removing Crankshaft Pulley And Pulley Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TIMING CHAIN COVER OIL SEAL
1. Using a knife, cut off the lip of the oil seal.
2. Using a screwdriver with its tip wrapped with tape, pry out the oil seal.
NOTE: After removing, check the crankshaft for damage. If damaged, smooth the surface with 400-grit sandpaper.
