Front Crankshaft Oil Seal: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL TIMING CHAIN COVER OIL SEAL
    1. Apply MP grease to the lip of a new oil seal.
      NOTE: Keep the lip free of foreign matter.
      Fig 1: Identifying Timing Chain Cover Oil Seal
      G04974111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a hammer, tap in the oil seal until its surface is flush with the rear oil seal retainer edge.

      SST 09223-22010

      NOTE: Wipe off extra grease from the crankshaft.
      Fig 2: Tapping Oil Seal
      G06008746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CRANKSHAFT PULLEY
    1. Align the pulley set key with the key groove of the pulley.
    2. Using SST, hold the pulley in place and tighten the bolt.

      SST 09213-58013, 09330-00021

      Torque: 190 N*m (1940 kgf*cm, 140 ft.*lbf)

      NOTE: Check the SST installation positions when installing them to prevent the SST fixing bolts from coming into contact with the timing chain cover sub-assembly.

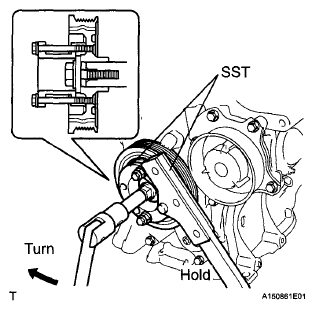

      Fig 3: Tightening Pulley Bolt
      G06008747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL V-RIBBED BELT  (See INSTALLATION  )
  4. ADJUST V-RIBBED BELT  (See INSTALLATION  )
  5. INSPECT V-RIBBED BELT  (See ON-VEHICLE INSPECTION )
  6. ADD ENGINE OIL  (See REPLACEMENT )
  7. INSPECT FOR ENGINE OIL LEAK
  8. INSTALL NO. 2 CYLINDER HEAD COVER  (See INSTALLATION )
  9. INSTALL ENGINE UNDER COVER RH
  10. INSTALL FRONT WHEEL RH
