Cylinder Head Gasket: Installation
WARNING: This page is about a different variant/trim than selected.
- INSTALL CYLINDER HEAD GASKET
- Place a new gasket on the cylinder block surface with the Lot No. stamp facing upward.
NOTE:- Remove any oil from the contact surface.
- Make sure that the gasket is installed in the correct direction.
- INSTALL CYLINDER HEAD SUB-ASSEMBLY
HINT:
The cylinder head bolts are tightened in 2 progressive steps.
- Apply a light coat of engine oil to the bolt threads and the area beneath the bolt heads that come in contact with the washers.
- Install the bolts and plate washers to the cylinder head.NOTE: Do not drop the washers into the cylinder head.
- Using several steps, uniformly install and tighten the 10 cylinder head bolts and 10 plate washers with a 10 mm bi-hexagon wrench in the order shown in the illustration.
Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)
- Mark the front side of the cylinder head bolts with paint.
- Retighten the cylinder head bolts an additional 90°, then once more 45° as shown in the illustration.
- Check that the paint mark is now at a 135° angle to the front.
- INSTALL VALVE LASH ADJUSTER ASSEMBLY (See REASSEMBLY )
- INSTALL NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY (See REASSEMBLY )
- INSTALL NO. 1 CAMSHAFT BEARING (See INSTALLATION )
- INSTALL NO. 2 CAMSHAFT BEARING (See INSTALLATION )
- INSTALL NO. 2 CAMSHAFT (See INSTALLATION )
- INSTALL CAMSHAFT (See INSTALLATION )
- INSTALL CAMSHAFT BEARING CAP (See INSTALLATION )
- INSTALL CAMSHAFT HOUSING SUB-ASSEMBLY (See INSTALLATION )
- INSTALL CAMSHAFT TIMING GEAR ASSEMBLY (See INSTALLATION )
- INSTALL CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY (See INSTALLATION )
- INSTALL NO. 1 CHAIN VIBRATION DAMPER
- Install the No. 1 chain vibration damper with the 2 bolts.
Torque: 21 N*m (214 kgf*cm, 16 ft.*lbf)
- Install the No. 1 chain vibration damper with the 2 bolts.
- INSTALL NO. 2 CHAIN VIBRATION DAMPER (See INSTALLATION )
- INSTALL CHAIN SUB-ASSEMBLY
- Check the No. 1 cylinder TDC/compression.
- Temporarily tighten the crankshaft pulley bolt.
- Turn the crankshaft counterclockwise to position the timing gear key to the top.
- Remove the crankshaft pulley bolt.
- Check the timing marks on each camshaft timing gear.
- Align the mark plate (orange) with the timing mark of the No. 2 camshaft as shown in the illustration and install the chain.
HINT:
- Be sure to position the mark plate at the front of the engine.
- The mark plate on the camshaft side is colored orange.
- Do not pass the chain around the sprocket of the camshaft timing gear assembly. Only place it on the sprocket.
- Pass the chain through the No. 1 vibration damper.
- Place the chain on the crankshaft without passing it around the shaft.
- Hold the hexagonal portion of the camshaft with a wrench and turn the camshaft timing gear assembly counterclockwise to align the mark plate (orange) and timing mark.
HINT:
- Be sure to position the mark plate at the front of the engine.
- The mark plate on the camshaft side is colored orange.

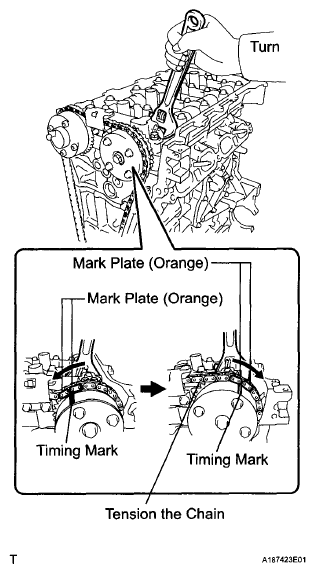

- Hold the hexagonal portion of the camshaft with a wrench and turn the camshaft timing gear assembly clockwise.
HINT:
To tension the chain, slowly turn the camshaft timing gear assembly clockwise to prevent the chain from being misaligned.
- Align the mark plate (yellow) and timing mark and install the chain to the crankshaft timing gear.
HINT:
The mark plate on the crankshaft side is colored yellow.
- Recheck each timing mark at TDC/compression.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Check the No. 1 cylinder TDC/compression.
- INSTALL CHAIN TENSIONER SLIPPER
- Install the chain tensioner slipper.
- INSTALL TIMING CHAIN COVER OIL SEAL (See REASSEMBLY )
- INSTALL TIMING CHAIN COVER SUB-ASSEMBLY (See INSTALLATION )
- INSTALL CRANKSHAFT PULLEY (See INSTALLATION )
- INSTALL NO. 1 CHAIN TENSIONER ASSEMBLY (See REASSEMBLY )
- INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY (See REASSEMBLY )
- INSTALL RADIO SETTING CONDENSER (See INSTALLATION )
- INSTALL THERMOSTAT (See INSTALLATION )
- INSTALL WATER INLET (See INSTALLATION )
- INSTALL WATER INLET HOSE (See INSTALLATION )
- INSTALL WATER BY-PASS HOSE (See INSTALLATION )
- INSTALL NO. 1 WATER BY-PASS PIPE (See INSTALLATION )
- CONNECT NO. 3 WATER BY-PASS HOSE (See INSTALLATION )
- INSTALL VENTILATION HOSE (See INSTALLATION )
- INSPECT EXHAUST MANIFOLD (See INSPECTION )
- INSTALL EXHAUST MANIFOLD (See INSTALLATION )
- INSTALL MANIFOLD STAY (See INSTALLATION )
- INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR (See INSTALLATION )
- INSTALL OIL LEVEL DIPSTICK SUB-ASSEMBLY (See INSTALLATION )
- INSTALL IGNITION COIL ASSEMBLY (See INSTALLATION )
- INSTALL FUEL INJECTOR ASSEMBLY (See INSTALLATION )
- INSTALL NO. 1 DELIVERY PIPE SPACER (See INSTALLATION )
- INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY (See INSTALLATION )
- INSTALL FUEL TUBE SUB-ASSEMBLY (See INSTALLATION )
- INSTALL INTAKE MANIFOLD (See INSTALLATION )
- REMOVE ENGINE STAND (See INSTALLATION )
- INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
HINT:
See INSTALLATION .
