Upper Instrument Panel: Reassembly

  1. INSTALL NO. 1 INSTRUMENT PANEL CUSHION
    1. Remove the release paper on the No. 1 instrument panel cushion (when using a new cushion).
    2. Align the No. 1 instrument panel cushion with the scribed line and install the No. 1 instrument panel cushion.
    Fig 1: Aligning No. 1 Instrument Panel Cushion With Scribed Line
    G06037832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (for 7 Speakers)
    1. Engage the 7 claws and install the No. 1 instrument panel speaker panel sub-assembly.

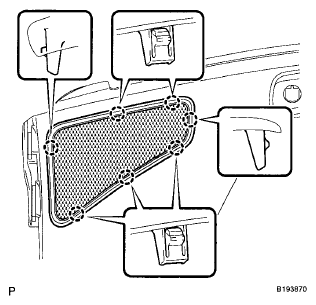

    Fig 2: Identifying No. 1 Instrument Panel Speaker Panel Sub-Assembly And Claws
    G06037833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (for 7 Speakers)
    1. Engage the 7 claws and install the No. 2 instrument panel speaker panel sub-assembly.

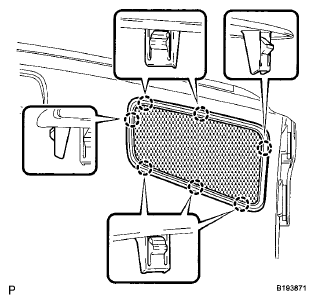

    Fig 3: Identifying No. 2 Instrument Panel Speaker Panel Sub-Assembly And Claws
    G06037834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL AUTOMATIC LIGHT CONTROL SENSOR
    1. Engage the 2 claws and install the automatic light control sensor.
    Fig 4: Installing Automatic Light Control Sensor
    G06037835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY LH
    1. Engage the 3 claws and install the No. 1 instrument panel register assembly LH.
    Fig 5: Identifying No. 1 Instrument Panel Register Assembly LH And Claws
    G06037836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY RH
    1. Engage the 3 claws and install the No. 1 instrument panel register assembly RH.
  7. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY  (See INSTALLATION )
  8. INSTALL FRONT NO. 3 SPEAKER ASSEMBLY LH (for 7 Speakers)  (See INSTALLATION )
    Fig 6: Identifying No. 1 Instrument Panel Register Assembly RH And Claws
    G06037837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL FRONT NO. 3 SPEAKER ASSEMBLY RH (for 7 Speakers)

    HINT:

    Use the same procedure for the RH side and LH side.

  10. INSTALL NAVIGATION ANTENNA ASSEMBLY (w/ Navigation System)  (See INSTALLATION )
  11. INSTALL NO. 2 INSTRUMENT PANEL WIRE (for 4 Speakers)
    1. Engage the clamp and install the No. 2 instrument panel wire.
    2. Connect the connector.
    Fig 7: Locating No. 2 Instrument Panel Wire And Connector With Clamp
    G06037838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL NO. 2 INSTRUMENT PANEL WIRE (for 6 Speakers)
    1. Engage the clamp and install the No. 2 instrument panel wire.
    2. Connect the connector.
    Fig 8: Locating No. 2 Instrument Panel Wire And Connector With Clamp
    G06037839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL NO. 2 INSTRUMENT PANEL WIRE (for 7 Speakers)
    1. Engage the clamp and install the No. 2 instrument panel wire.
    2. Connect each connector.
  14. INSTALL NO. 3 INSTRUMENT PANEL CUSHION
    1. Remove the release paper on the No. 3 instrument panel cushion (when using a new cushion).
    2. Install the No. 3 instrument panel cushion.
    Fig 9: Locating No. 2 Instrument Panel Wire And Connector With Clamp
    G06037840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL NO. 2 INSTRUMENT PANEL CUSHION
    1. Remove the release paper on the No. 2 instrument panel cushion (when using a new cushion).
      Fig 10: Identifying No. 3 Instrument Panel Cushion
      G06037841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the No. 2 instrument panel cushion.
    Fig 11: Identifying No. 2 Instrument Panel Cushion
    G06037842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL HEATER TO REGISTER DUCT ASSEMBLY
    1. Engage the 2 guides.
    2. Install the heater to register duct assembly with the 2 screws <B>.
    Fig 12: Identifying Register Duct Assembly And Guides
    G06037843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL DEFROSTER NOZZLE ASSEMBLY
    1. Engage the 4 guides.
    2. Install the defroster nozzle assembly with the 3 screws <B>.
    Fig 13: Identifying Defroster Nozzle Assembly And Guides
    G06037844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
