FRONT STABILIZER BAR (for 1AR-FE): Installation

1. Install the 2 No. 1 front stabilizer bar bushings to the front stabilizer bar as shown in the illustration.
   NOTE: When installing the No. 1 front stabilizer bar bushings, make sure that the cutout faces the rear of the vehicle.

Fig 1: Installing No. 1 Front Stabilizer Bar Bushings To Front Stabilizer Bar

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the No. 2 front stabilizer bracket LH to the No. 1 front stabilizer bar bushing.

HINT:

Perform the same procedure as the LH side.

Fig 2: Identifying No. 2 Front Stabilizer Bracket

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the front stabilizer bar by inserting it from the left side of the vehicle.

Fig 3: Identifying Front Stabilizer Bar By Inserting From Left Side Of Vehicle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the front stabilizer link assembly LH with the 2 nuts.

   Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

   HINT:

   If the ball joint turns together with the nut, use a hexagon wrench (6 mm) to hold the stud bolt.

HINT:

Perform the same procedure as the LH side.

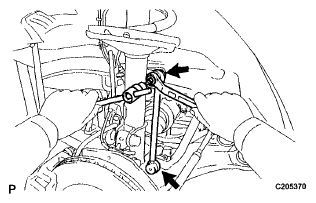

Fig 4: Tightening Front Stabilizer Link Assembly LH With Nuts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Refer to the procedure from Install Power Steering Link Assembly (See INSTALLATION ).
