Front Crankshaft Oil Seal: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE FRONT WHEEL RH
REMOVE NO. 1 ENGINE UNDER COVER
REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY RH (See ON-VEHICLE INSPECTION )
REMOVE FRONT FENDER LINER RH (See REMOVAL )
REMOVE FRONT FENDER APRON SEAL RH (See REMOVAL )
REMOVE V-RIBBED BELT (See INSTALLATION )
REMOVE CRANKSHAFT PULLEY
1. Using SST, hold the crankshaft pulley and loosen the pulley bolt. Further loosen the bolt until 2 or 3 threads are screwed into the crankshaft.
  SST 09213-54015, 09330-00021, 91551 -80650

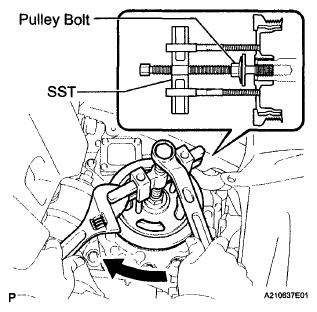

  Fig 1: Loosening Pulley Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and the pulley bolt, remove the crankshaft pulley.
  SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05011)

  HINT:

  Apply a lubricant to the threads and end of SST.

  Fig 2: Removing Crankshaft Pulley Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TIMING CHAIN COVER OIL SEAL
1. Using a screwdriver, pry out the oil seal.
  HINT:

  Tape the screwdriver tip before use.

  NOTE: Do not damage the surface of the oil seal press fit hole or the crankshaft.

  Fig 3: Prying Out Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
