Section 4 (Engine Mechanical (1AR-FE)): Camshaft: Removal

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE TIMING CHAIN COVER SUB-ASSEMBLY
    1. Remove the timing chain cover (See REMOVAL ).
  2. SET NO. 1 CYLINDER TO TDC/COMPRESSION
    1. Temporarily install the crankshaft pulley bolt.

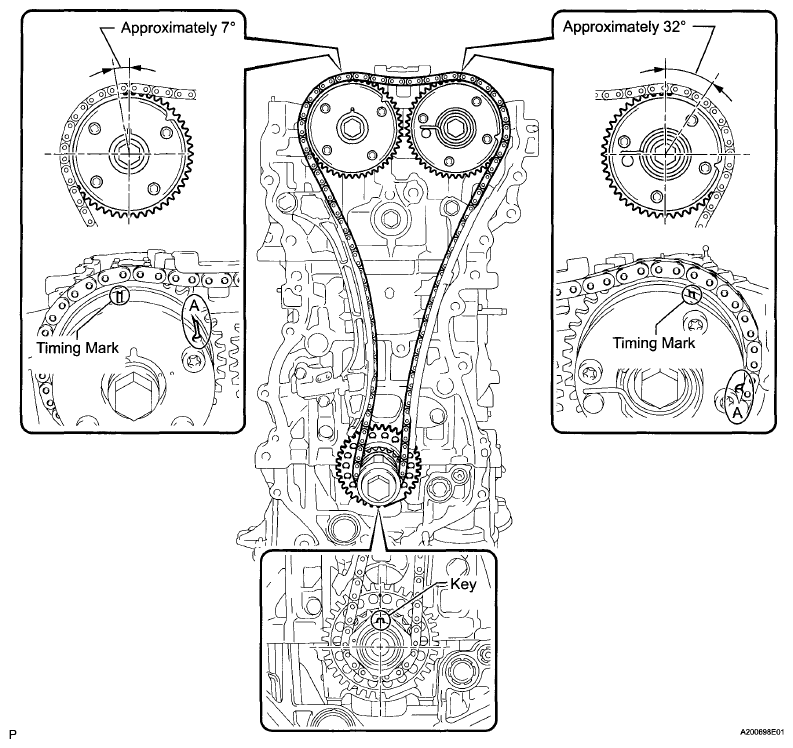

      Fig 1: Identifying Timing Marks On Crankshaft Timing Gear And Camshaft Timing Gears
      G05997735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      "A" is not a timing mark.

    2. Rotate the crankshaft clockwise so that the timing marks on the crankshaft timing gear and camshaft timing gears are as shown in the illustration.

      HINT:

      If the timing marks do not align, rotate the crankshaft clockwise again and align the timing marks.

    3. Remove the crankshaft pulley bolt.
  3. REMOVE TIMING CHAIN GUIDE
    1. Remove the bolt and timing chain guide.
    Fig 2: Locating Timing Chain Guide Bolt
    G05997693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 1 CHAIN TENSIONER ASSEMBLY
    1. Allow the plunger to extend slightly, and then rotate the stopper plate counterclockwise to release the lock. Once the lock is released, push the plunger into the tensioner.
      Fig 3: Pushing Plunger Into Tensioner
      G05997694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Move the stopper plate clockwise to set the lock, and insert a pin into the stopper plate hole.
      Fig 4: Inserting Pin Into Stopper Plate Hole
      G05997695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts, chain tensioner and gasket.
    Fig 5: Locating Chain Tensioner Bolts
    G05997696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE CHAIN TENSIONER SLIPPER
    1. Remove the bolt and chain tensioner slipper.
  6. REMOVE CHAIN SUB-ASSEMBLY
    Fig 6: Locating Chain Tensioner Slipper Bolt
    G05997732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 1 CHAIN VIBRATION DAMPER
    1. Remove the 2 bolts and chain vibration damper.
    Fig 7: Locating Chain Vibration Damper Bolts
    G05997698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE CAMSHAFT TIMING GEAR ASSEMBLY
    1. Hold the hexagonal portion of the camshaft with a wrench and remove the bolt and camshaft timing gear.
    NOTE:
    • Be careful not to damage the cylinder head or spark plug tube with the wrench.
    • Do not disassemble the camshaft timing gear.
    Fig 8: Removing Camshaft Timing Gear Assembly
    G05997699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY
    1. Hold the hexagonal portion of the camshaft with a wrench and remove the bolt and camshaft timing exhaust gear.
    NOTE:
    • Be careful not to damage the cylinder head or spark plug tube with the wrench.
    • Do not disassemble the camshaft timing exhaust gear.
    Fig 9: Removing Camshaft Timing Exhaust Gear Assembly
    G05997700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE CAMSHAFT HOUSING SUB-ASSEMBLY
    1. Uniformly loosen and remove the 20 bearing cap bolts in the sequence shown in the illustration.
      Fig 10: Identifying Bearing Cap Bolts Loosening Sequence
      G05997701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the camshaft housing by prying between the cylinder head and camshaft housing with a screwdriver.

      HINT:

      Tape the screwdriver tip before use.

      NOTE: Be careful not to damage the contact surfaces of the cylinder head and camshaft housing.

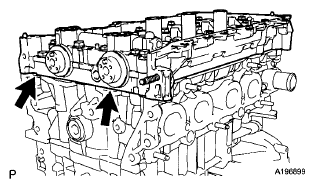

    Fig 11: Locating Contact Surfaces Of Cylinder Head And Camshaft Housing
    G05997702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE CAMSHAFT BEARING CAP
    1. Remove the 11 bearing cap bolts in the sequence shown in the illustration.
    2. Remove the 5 bearing caps.

      HINT:

      Arrange the removed parts in the correct order.

  12. REMOVE OIL CONTROL VALVE FILTER  (See INSPECTION )
  13. REMOVE NO. 1 CAMSHAFT BEARING  (See INSPECTION )
    Fig 12: Identifying Bearing Cap Bolts Loosening Sequence
    G05997703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE CAMSHAFT
    1. Remove the No. 1 and No. 2 camshafts.
  15. REMOVE NO. 2 CAMSHAFT BEARING  (See INSPECTION )
  16. REMOVE NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
    1. Remove the 16 valve rocker arms from the cylinder head.

      HINT:

      Arrange the removed parts in the correct order.

  17. REMOVE VALVE LASH ADJUSTER ASSEMBLY
    1. Remove the 16 valve lash adjusters from the cylinder head.

      HINT:

      Arrange the removed parts in the correct order.
