Heated Oxygen Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE FRONT FLOOR COVER LH (See REMOVAL )
REMOVE HEATED OXYGEN SENSOR
1. Disconnect the heated oxygen sensor connector.
2. Separate the 2 wire harness clamps.

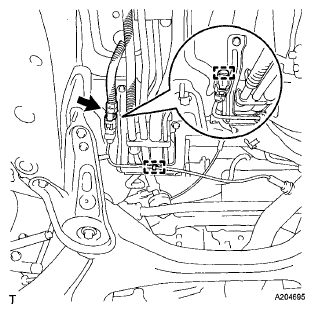

  Fig 1: Locating Heated Oxygen Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, remove the heated oxygen sensor from the front exhaust pipe.
  SST 09224-00010

  Fig 2: Removing Heated Oxygen Sensor From Front Exhaust Pipe
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
