Intake Manifold: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL INTAKE AIR CONTROL VALVE ACTUATOR (for TCV) (See INSTALLATION )
INSTALL ENGINE MOUNTING DAMPER
1. Install the engine mounting damper with the 3 bolts.
  Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
Fig 1: Locating Engine Mounting Damper And Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL WIRING HARNESS CLAMP BRACKET
1. Install the bracket with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
Fig 2: Identifying Bracket And Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CHECK VALVE
1. Connect the 2 vacuum hoses to the intake manifold to install the check valve.

  Fig 3: Locating Vacuum Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that the check valve is installed as shown in the illustration.
Fig 4: Identifying Check Valve
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE MANIFOLD
1. Close the tumble control valves.
  NOTE: The valves may be damaged if they are not closed before installing the intake manifold.

  HINT:

  Connect the battery to the terminals of the actuator and operate the motor to close the valves (See INTAKE MANIFOLD ).

  Fig 5: Identifying Tumble Control Valves Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install a new gasket to the intake manifold.

  Fig 6: Locating Gasket And Intake Manifold
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the intake manifold by tightening the 6 bolts in the sequence shown in the illustration.
  Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  Fig 7: Locating Intake Manifold And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the intake air control actuator connector.
5. Attach the 2 clamps to the intake manifold and bracket.
6. Install the wire harness with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  Fig 8: Locating Wire Harness With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Install the wire harness bracket with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
8. Connect the fuel vapor feed hose, vacuum hose, clamp and connector.

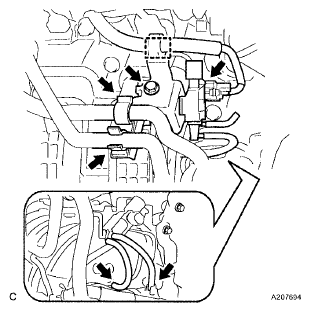

  Fig 9: Locating Fuel Vapor Feed Hose, Vacuum Hose, Clamp And Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Install the 2 wire harness brackets with the 2 bolts.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  Fig 10: Locating Wire Harness Brackets And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. Connect the 4 clamps and wire harness.
INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY (See INSTALLATION )
INSTALL NO. 1 VACUUM SWITCHING VALVE ASSEMBLY (See INSTALLATION )

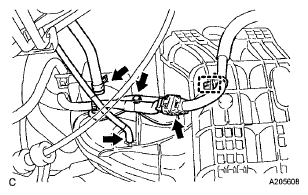

Fig 11: Identifying Clamps And Wire Harness
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT UNION TO CONNECTOR TUBE HOSE
1. Connect the union to connector tube hose to the intake manifold.
Fig 12: Locating Connector Tube Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT NO. 2 VENTILATION HOSE
1. Connect the No. 2 ventilation hose to the intake manifold.
Fig 13: Locating No. 2 Ventilation Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VACUUM SWITCHING VALVE ASSEMBLY (for ACIS)
1. Install the vacuum switching valve (for ACIS) with the bolt.
  Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
2. Connect the 2 vacuum hoses, 2 union to connector tube hoses, clamp and connector.
Fig 14: Locating Vacuum Hoses, Connector Tube Hoses, Clamp And Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT OUTLET HEATER WATER HOSE (See INSTALLATION )
CONNECT INLET HEATER WATER HOSE (See INSTALLATION )
INSTALL THROTTLE BODY ASSEMBLY
1. Install the throttle body assembly (See INSPECTION ).
CONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
INSPECT FOR FUEL LEAK
HINT:

(See FUEL SYSTEM ).
