VACUUM SWITCHING VALVE (for 1AR-FE): Installation

INSTALL NO. 1 VACUUM SWITCHING VALVE ASSEMBLY
1. Install the No. 1 vacuum switching valve assembly with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
2. Connect the connector and 2 vacuum hoses, and slide the 2 clips.
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY (See INSTALLATION )

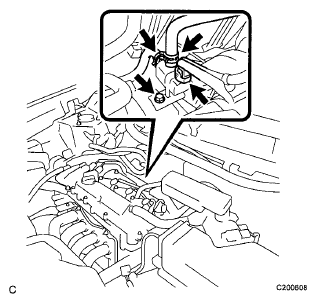

Fig 1: Locating No. 1 Vacuum Switching Valve With Bolt
