Tire And Wheel System: Inspection

INSPECT TIRE

Check the tires for wear and proper inflation pressure.

Cold tire inflation pressure for USA, CANADA

COLD TIRE INFLATION PRESSURE SPECIFICATION - USA, CANADA

Tire size	Front kPa (kgf/cm² , psi)	Rear kPa (kgf/cm² , psi)
P245/55R19 103S P245/65R17 105S	210 (2.1,30)	210 (2.1,30)
P245/55R19 103S P245/65R17 105S	210 (2.1, 30)	210 (2.1,30)

Cold tire inflation pressure for MEXICO

COLD TIRE INFLATION PRESSURE SPECIFICATION - MEXICO

Tire size		Front kPa (kgf/cm² , psi)	Rear kPa (kgf/cm² , psi)
P245/55R19 103S P245/65R17 105S	4 passengers or less	210 (2.1, 30)	210 (2.1, 30)
P245/55R19 103S P245/65R17 105S	5 passengers or more	210 (2.1,30)	230 (2.3, 33)

Using a dial indicator, check the runout of the tires.

Tire runout:

1.4 mm (0.055 in.) or less

Fig 1: Checking Runout Of Tires

ROTATE TIRES
1. Rotate the tires as shown in the illustration (A). If the vehicle is equipped with a grand spare tire, rotate the tires as shown in the illustration (B).
INSPECT WHEEL BALANCE
1. Check and adjust the off-the-car balance.
Fig 2: Tires Rotation Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

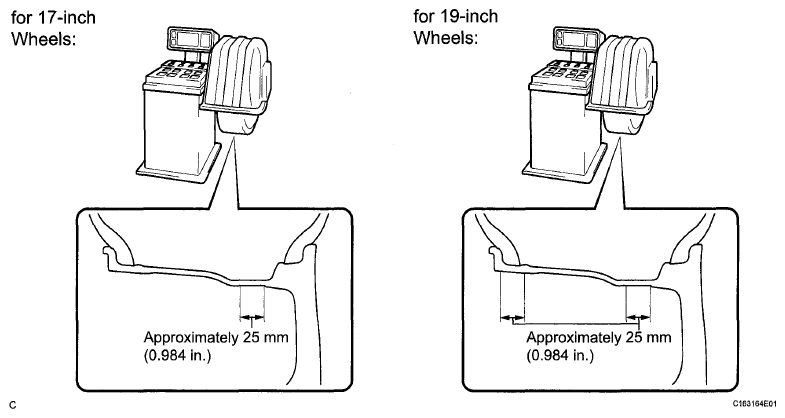

Fig 3: Inspecting Wheel Balance
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Imbalance after adjustment:

8.0 g (0.018 1b) or less
NOTE:
- Remove dirt, oil, and water from the surface where the balance weight is to be adhered with a cleaning detergent.
- Do not touch the sticking surface of the tape.
- Adhere the sticking type balance weight to the flat position shown in the illustration.
- Push the balance weight securely with a finger to adhere it to the indicated position.
- Do not reuse balance weights.
HINT:
- For 19-inch wheels both inner side and outer side balance weight are sticking type.
- For 17-inch wheels the inner side balance weight should be installed by clipping it to the rim.
- If necessary, check and adjust wheel balance using an on-the-car balancer.
INSPECT FRONT AXLE HUB BEARING LOOSENESS
HINT:

See ON-VEHICLE INSPECTION .
INSPECT REAR AXLE HUB BEARING LOOSENESS (for 2WD)
HINT:

See ON-VEHICLE INSPECTION .
INSPECT REAR AXLE HUB BEARING LOOSENESS (for 4WD)
HINT:

See ON-VEHICLE INSPECTION .
INSPECT FRONT AXLE HUB RUNOUT
HINT:

See ON-VEHICLE INSPECTION .
INSPECT REAR AXLE HUB RUNOUT (for 2WD)
HINT:

See ON-VEHICLE INSPECTION .
INSPECT REAR AXLE HUB RUNOUT (for 4WD)
HINT:

See ON-VEHICLE INSPECTION .
