FRONT SEATBACK HEATER (for Power Seat): Removal

  1. REMOVE FRONT SEAT HEADREST ASSEMBLY  (See REMOVAL )
  2. REMOVE FRONT OUTER SEAT TRACK COVER  (See REMOVAL )
  3. REMOVE FRONT INNER SEAT TRACK COVER  (See REMOVAL )
  4. REMOVE REAR OUTER SEAT TRACK COVER  (See REMOVAL )
  5. REMOVE REAR INNER SEAT TRACK COVER  (See REMOVAL )
  6. REMOVE FRONT SEAT ASSEMBLY  (See REMOVAL )
  7. REMOVE RECLINING POWER SEAT SWITCH KNOB  (See REMOVAL )
  8. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB  (See REMOVAL )
  9. REMOVE FRONT SEAT CUSHION SHIELD ASSEMBLY  (See REMOVAL )
  10. REMOVE FRONT SEAT INNER BELT ASSEMBLY  (See REMOVAL )
  11. REMOVE FRONT SEAT CUSHION INNER SHIELD  (See DISASSEMBLY )
  12. REMOVE FRONT SEATBACK COVER WITH PAD  (See DISASSEMBLY )
  13. REMOVE SEPARATE TYPE FRONT SEATBACK COVER
    1. Remove the 7 hog rings and the separate type front seatback cover.

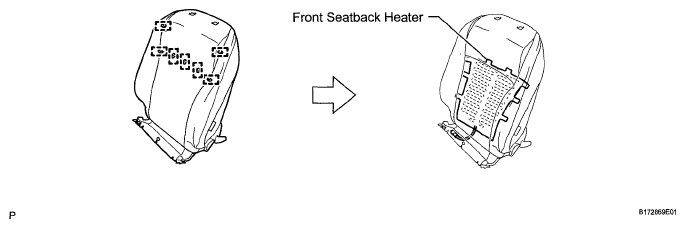

      Fig 1: Identifying Front Seatback Cover And Claws
      G05421948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
