FRONT SEAT CUSHION HEATER (for Power Seat): Removal

  1. REMOVE FRONT SEAT HEADREST ASSEMBLY  (See REMOVAL )
  2. REMOVE FRONT OUTER SEAT TRACK COVER  (See REMOVAL )
  3. REMOVE FRONT INNER SEAT TRACK COVER  (See REMOVAL )
  4. REMOVE REAR OUTER SEAT TRACK COVER  (See REMOVAL )
  5. REMOVE REAR INNER SEAT TRACK COVER  (See REMOVAL )
  6. REMOVE FRONT SEAT ASSEMBLY  (See REMOVAL )
  7. REMOVE RECLINING POWER SEAT SWITCH KNOB  (See REMOVAL )
  8. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB  (See REMOVAL )
  9. REMOVE FRONT SEAT CUSHION SHIELD ASSEMBLY  (See REMOVAL )
  10. REMOVE FRONT SEAT INNER BELT ASSEMBLY  (See REMOVAL )
  11. REMOVE FRONT SEAT CUSHION INNER SHIELD  (See DISASSEMBLY )
  12. REMOVE FRONT SEAT CUSHION COVER WITH PAD (w/o Seat Cushion Front Edge Adjustment Function)  (See DISASSEMBLY )
  13. REMOVE FRONT SEAT CUSHION COVER WITH PAD (w/ Seat Cushion Front Edge Adjustment Function)
  14. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER (w/o Seat Cushion Front Edge Adjustment Function)
    1. Remove the 6 hog rings.
      Fig 1: Identifying Separate Type Front Seat Cushion Cover And Hog Rings
      G05421465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 11 hog rings and the separate type front seat cushion cover.

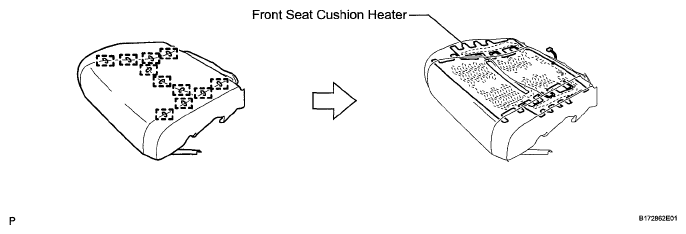

    Fig 2: Identifying Front Seat Cushion Heater
    G05421994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER (w/ Seat Cushion Front Edge Adjustment Function)
    1. Remove the 2 hog rings.
    2. Remove the 15 hog rings and the separate type front seat cushion cover.
    Fig 3: Identifying Front Seat Cushion Cover Hog Rings
    G05421546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

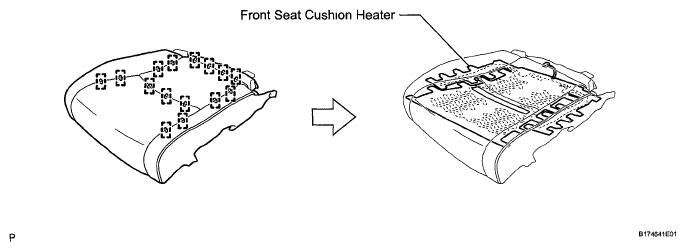

    Fig 4: Identifying Front Seat Cushion Heater
    G05421996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
