Engine Unit: Removal

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY  (See REMOVAL )
  2. REMOVE FUEL INJECTOR ASSEMBLY  (See INSPECTION )
  3. REMOVE INTAKE MANIFOLD  (See REMOVAL )
  4. REMOVE NO. 1 INTAKE MANIFOLD INSULATOR
    1. Remove the No. 1 intake manifold insulator.
  5. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR  (See REMOVAL )
  6. REMOVE MANIFOLD STAY  (See REMOVAL )
  7. REMOVE NO. 2 MANIFOLD STAY  (See REMOVAL )
  8. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY  (See REMOVAL )

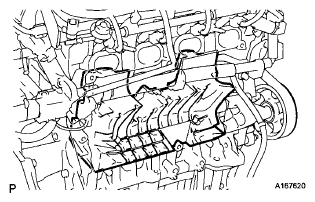

    Fig 1: Identifying No. 1 Intake Manifold Insulator
    G06008436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE INLET WATER  (See INSPECTION )
  10. REMOVE THERMOSTAT  (See INSPECTION )
  11. REMOVE ENGINE OIL LEVEL DIPSTICK
  12. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE  (See REMOVAL )
  13. REMOVE NO. 1 WATER BY-PASS PIPE
    1. Remove the bolt and 2 nuts, then remove the No. 1 water by-pass pipe.
    2. Remove the gasket.
  14. REMOVE IGNITION COIL ASSEMBLY  (See REMOVAL )
  15. REMOVE KNOCK SENSOR  (See INSPECTION )
  16. REMOVE OIL PRESSURE SWITCH  (See OIL PRESSURE SWITCH )
  17. REMOVE ENGINE COOLANT TEMPERATURE SENSOR  (See REMOVAL )
    Fig 2: Locating No. 1 Water By-Pass Pipe
    G05387363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE RADIO SETTING CONDENSER
    1. Remove the bolt and radio setting condenser.
    Fig 3: Locating Bolt And Radio Setting Condenser
    G04974190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
