Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL OIL PUMP ASSEMBLY
    1. Install a new gasket and the oil pump with the 3 bolts.

      Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

      Fig 1: Locating Oil Pump Bolts
      G05134689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 CHAIN SUB-ASSEMBLY  (See INSTALLATION )
  3. INSTALL CRANKSHAFT TIMING GEAR OR SPROCKET  (See INSTALLATION )
  4. INSTALL NO. 1 CHAIN VIBRATION DAMPER  (See INSTALLATION )
  5. INSTALL CHAIN SUB-ASSEMBLY  (See INSTALLATION )
  6. INSTALL CHAIN TENSIONER SLIPPER  (See INSTALLATION )
  7. INSTALL TIMING CHAIN GUIDE  (See INSTALLATION )
  8. INSTALL NO. 1 CRANKSHAFT POSITION SENSOR PLATE  (See INSTALLATION )
  9. INSTALL TIMING CHAIN COVER OIL SEAL
    1. Using SST, tap in a new oil seal until its surface is flush with the timing chain cover edge.

      SST 09223-22010

      NOTE:
      • Keep the lip free from foreign matter.
      • Do not tap the oil seal at an angle.
    2. Apply MP grease to the lip of the oil seal.
    Fig 2: Tapping Timing Chain Cover Oil Seal
    G06009456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL TIMING CHAIN OR BELT COVER SUB-ASSEMBLY
    1. Remove any old packing material and be careful not to drop any oil on the contact surfaces of the timing chain cover, cylinder head and cylinder block.
    2. Apply seal packing (Diameter 4.0 to 4.5 mm (0.157 to 0.177 in.)) as shown in the illustration.

      Seal packing:

      Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

      NOTE:
      • Remove any oil from the contact surfaces.
      • Install the chain cover within 3 minutes of applying seal packing.
      • Do not add engine oil for at least 2 hours after installing the chain cover.
      Fig 3: Identifying Seal Packing Applying Area
      G06009457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

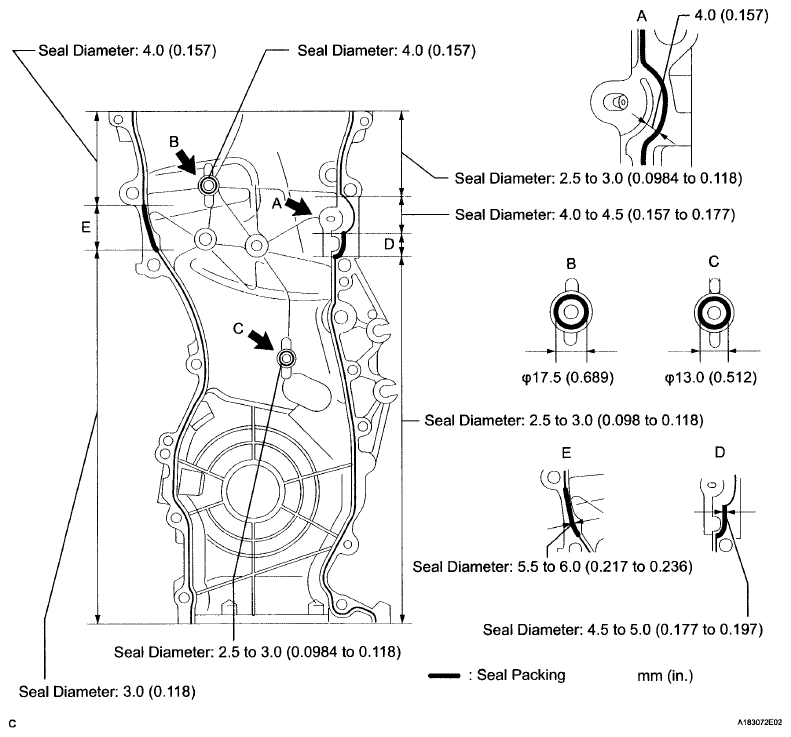

    3. Apply a continuous bead of seal packing as shown in the illustration.
      Fig 4: Applying Continuous Bead Of Seal Packing In Illustration
      G06009458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Seal packing:

      Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

      NOTE:
      • Remove any oil from the contact surface.
      • Install the chain cover within 3 minutes of applying seal packing.
      • Do not add engine oil for at least 2 hours after installing the chain cover.
    4. Apply adhesive to the threads of the bolt A.

      Seal packing:

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

    5. Temporarily install the timing chain cover with the 12 bolts and 2 nuts.

      Bolt length

      BOLT LENGTH REFERENCE

      Item Length
      Bolt A 30 mm (1.18 in.) length for 10 mm head
      Bolt B 30 mm (1.18 in.) length for 12 mm head
      Bolt C 40 mm (1.57 in.) length for 14 mm head
      Fig 5: Locating Timing Chain Cover With Bolts And Nuts
      G06009459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Temporarily install the engine transverse engine mounting bracket with the 3 bolts.
    7. Fully tighten the timing chain cover with the 15 bolts and 2 nuts as shown in the illustration.
      Fig 6: Installing Engine Mounting Bracket
      G05387105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 7: Locating Timing Chain Cover With Bolts
      G06009461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: Bolt A

      9.0 N*m (92 kgf*cm, 80 in.*lbf)

      Bolt B

      25 N*m (255 kgf*cm, 18 ft.*lbf)

      Bolt C

      55 N*m (561 kgf*cm, 41 ft.*lbf)

      Nut

      11 N*m (112 kgf*cm, 8 ft.*lbf)

    8. Using an E10 "TORX" socket, install the stud bolt for the V-ribbed belt tensioner.

    Torque: 22 N*m (220 kgf*cm, 16 ft.*lbf)

    Fig 8: Identifying Stud Bolt For V-Ribbed Belt Tensioner
    G06009437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL NO. 1 CHAIN TENSIONER ASSEMBLY  (See INSTALLATION )
  12. INSTALL V-RIBBED BELT TENSIONER ASSEMBLY  (See INSTALLATION )
  13. INSTALL CRANKSHAFT PULLEY  (See INSTALLATION )
  14. INSTALL OIL PAN SUB-ASSEMBLY  (See INSTALLATION )
  15. INSTALL CRANKSHAFT POSITION SENSOR  (See INSTALLATION )
  16. INSTALL IDLER PULLEY SUB-ASSEMBLY  (See INSTALLATION )
  17. INSTALL ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH  (See INSTALLATION )
  18. INSTALL EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY  (See INSTALLATION )
  19. INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR  (See INSTALLATION )
  20. INSTALL NO. 2 MANIFOLD STAY  (See INSTALLATION )
  21. INSTALL MANIFOLD STAY  (See INSTALLATION )
  22. INSTALL NO. 1 INTAKE MANIFOLD INSULATOR  (See INSTALLATION )
  23. INSTALL INTAKE MANIFOLD  (See INSTALLATION )
  24. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY  (See INSPECTION )
  25. INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY  (See INSTALLATION )
  26. CONNECT FUEL MAIN TUBE  (See INSTALLATION )
  27. INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE  (See INSTALLATION )
  28. INSTALL ENGINE OIL LEVEL DIPSTICK
  29. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY  (See INSTALLATION )
  30. INSTALL SPARK PLUG  (See INSTALLATION )
  31. INSTALL IGNITION COIL ASSEMBLY  (See INSTALLATION )
  32. INSTALL THROTTLE BODY ASSEMBLY  (See INSTALLATION )
  33. INSTALL AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE  (See INSTALLATION )
  34. INSTALL RADIATOR RESERVE TANK ASSEMBLY  (See INSTALLATION )
  35. CONNECT INLET HEATER WATER HOSE  (See INSTALLATION )
  36. CONNECT OUTLET HEATER WATER HOSE  (See INSTALLATION )
  37. INSTALL NO. 1 RADIATOR HOSE  (See INSTALLATION )
  38. INSTALL GENERATOR ASSEMBLY  (See INSTALLATION )
  39. INSTALL V-RIBBED BELT  (See ON-VEHICLE INSPECTION )
  40. INSTALL FRONT EXHAUST PIPE ASSEMBLY  (See INSTALLATION )
  41. INSTALL CENTER EXHAUST PIPE ASSEMBLY  (See INSTALLATION )
  42. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  43. ADD ENGINE OIL  (See REPLACEMENT )
  44. ADD ENGINE COOLANT  (See COOLANT )
  45. INSPECT FUEL LEAK  (See ON-VEHICLE INSPECTION )
  46. INSPECT COOLANT LEAK  (See COOLING SYSTEM )
  47. INSPECT OIL LEAK
  48. INSPECT EXHAUST GAS LEAK
  49. INSPECT IGNITION TIMING  (See ENGINE )
  50. INSPECT ENGINE IDLE SPEED  (See ON-VEHICLE INSPECTION )
  51. INSPECT COMPRESSION  (See ON-VEHICLE INSPECTION )
  52. INSPECT CO/HC  (See ON-VEHICLE INSPECTION )
  53. INSTALL SUSPENSION TOWER DAMPER ASSEMBLY (w/ Front Strut Bar)  (See DISPOSAL )
  54. INSTALL OUTER COWL TOP PANEL  (See INSTALLATION )
  55. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY  (See INSTALLATION )
  56. INSTALL COWL TOP VENTILATOR LOUVER LH  (See INSTALLATION )
  57. INSTALL CENTER NO. 1 COWL TOP VENTILATOR LOUVER  (See INSTALLATION )
  58. INSTALL HOOD TO COWL TOP SEAL  (See INSTALLATION )
  59. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH  (See INSTALLATION )
  60. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH  (See INSTALLATION )
  61. INSTALL FRONT WIPER ARM HEAD CAP  (See INSTALLATION )
  62. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY  (See INSTALLATION )
  63. INSTALL ENGINE UNDER COVER LH
  64. INSTALL ENGINE UNDER COVER RH
  65. INSTALL FRONT WHEEL RH

    Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
