Washer Level Warning Switch: Removal

1. REMOVE RADIATOR GRILLE PROTECTOR  (See REMOVAL )
2. REMOVE NO. 4 ENGINE UNDER COVER (for 2AZ-FE)  (See REMOVAL )
3. REMOVE FRONT BUMPER ASSEMBLY  (See REMOVAL )
4. DRAIN WASHER FLUID  (See REMOVAL )
5. REMOVE LEVEL WARNING SWITCH ASSEMBLY
   1. Disconnect the connector.
   2. Remove the level warning switch assembly.

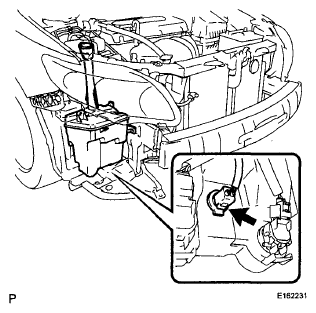

Fig 1: Locating Level Warning Switch Assembly Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
