Washer Motor: Removal

  1. REMOVE RADIATOR GRILLE PROTECTOR  (See REMOVAL )
  2. REMOVE NO. 4 ENGINE UNDER COVER (for 2AZ-FE)  (See REMOVAL )
  3. REMOVE FRONT BUMPER ASSEMBLY  (See REMOVAL )
  4. DRAIN WASHER FLUID
    1. Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the washer fluid.

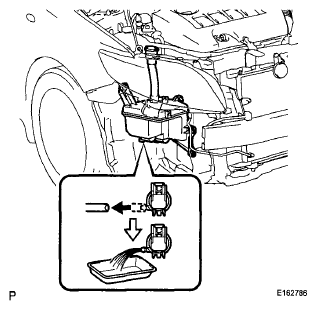

    Fig 1: Disconnecting Washer Hose
    G06016639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
    1. Disconnect the connector.
    2. Remove the windshield washer motor and pump assembly.
