Rear Bumper: Removal

  1. REMOVE REAR QUARTER PANEL MUDGUARD LH  (See REMOVAL  )
  2. REMOVE REAR QUARTER PANEL MUDGUARD RH  (See REMOVAL  )
  3. REMOVE REAR NO. 1 BUMPER PLATE
    1. Put protective tape around the bumper plate.
    2. Detach the 20 claws and remove the bumper plate.
    Fig 1: Identifying Protective Tape Around Bumper Plate
    G05632420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR BUMPER COVER
    1. Put protective tape around the bumper cover.

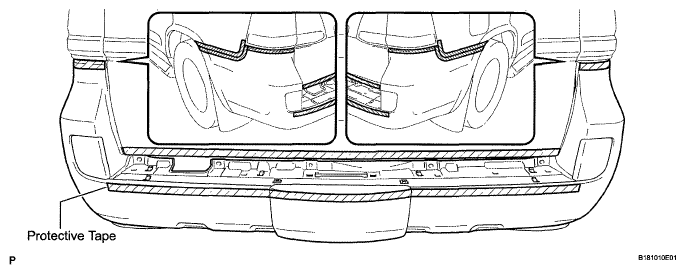

      Fig 2: Identifying Protective Tape Around Bumper Cover
      G05632421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Open the tail gate and remove the 4 clips.

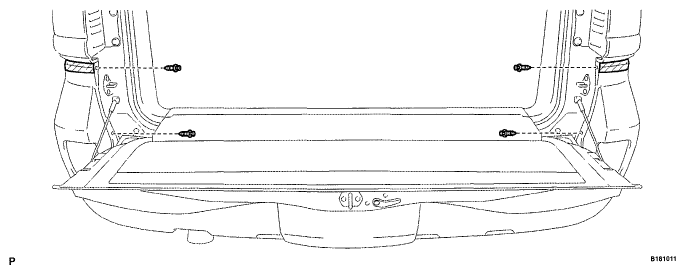

      Fig 3: Identifying Tail Gate And Clips
      G05632422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Close the tail gate.
    4. Remove the 7 bolts, 6 screws and 2 clips.
    5. Detach the 14 claws and remove the bumper cover.

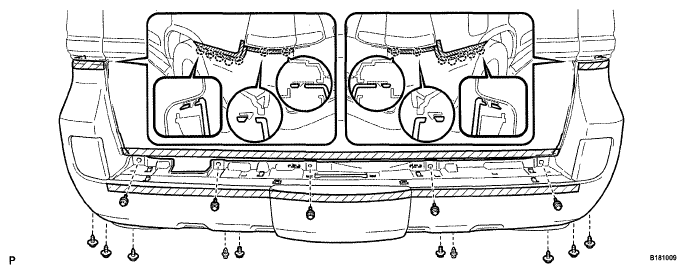

      Fig 4: Identifying Bolts, Screws And Clips
      G05632423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. W/ Intuitive Parking Assist System:

      Disconnect the No. 2 frame wire connector and remove the bumper cover.

  5. REMOVE REAR COMBINATION LIGHT ASSEMBLY LH  (See REMOVAL )
  6. REMOVE REAR COMBINATION LIGHT ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  7. REMOVE REAR UPPER BUMPER RETAINER LH
    1. Detach the 2 clips and remove the bumper retainer.
  8. REMOVE REAR UPPER BUMPER RETAINER RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 5: Identifying Rear Upper Bumper Clips
    G05632424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR BUMPER SIDE SUPPORT LH
    1. Remove the 3 screws.
    2. Detach the 6 claws and remove the bumper side support.
  10. REMOVE REAR BUMPER SIDE SUPPORT RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 6: Identifying Rear Bumper Side Support Screws
    G05632425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR NO. 2 BUMPER REINFORCEMENT
    1. Remove the 2 bolts and bumper reinforcement.
    Fig 7: Identifying Rear No. 2 Bumper Reinforcement Bolts
    G05632426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR BUMPER ARM BRACKET

    HINT:

    Use the same procedure to remove the bumper arm bracket on the other side.

    1. Remove the bolt and bumper arm bracket.
    Fig 8: Identifying Rear Bumper Arm Bracket Bolt
    G05632427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR BUMPER ARM BRACKET LH
    1. Disconnect the connector.
    2. Remove the 2 bolts and bumper arm bracket.
    Fig 9: Locating Rear Bumper Arm Bracket
    G05632428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 2 LUGGAGE COMPARTMENT SIDE COVER PROTECTOR
    1. Remove the 2 screws, 2 grommets and protector.
  15. REMOVE NO. 1 LUGGAGE COMPARTMENT SIDE COVER PROTECTOR

    HINT:

    Use the same procedures described for the LH side.

    Fig 10: Identifying No. 1 Luggage Compartment Side Cover Protector
    G05632429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
