Front Bumper: Removal

REMOVE FRONT FENDER SPLASH SHIELD SUBASSEMBLY LH
1. Remove the 3 bolts and screw.
2. Turn the clip indicated by the arrow in Fig 1 to remove the fender splash shield.
Fig 1: Identifying Fender Splash Shield Bolts And Screw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT FENDER SPLASH SHIELD SUBASSEMBLY RH
HINT:

Use the same procedures described for the LH side.
REMOVE UPPER RADIATOR SUPPORT SEAL (See REMOVAL )
REMOVE RADIATOR GRILLE ASSEMBLY (See DISASSEMBLY )
REMOVE FRONT BUMPER COVER
1. Put protective tape around the bumper cover.

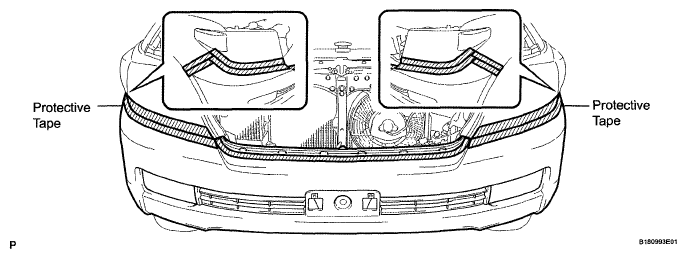

  Fig 2: Identifying Protective Tape Around Bumper Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a T30 "TORX" socket, remove the 6 screws.

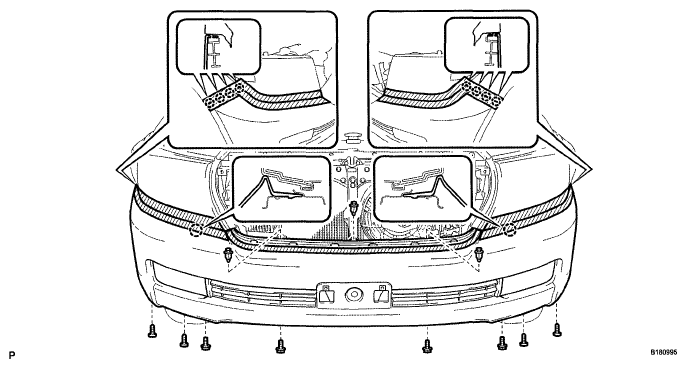

  Fig 3: Identifying Bumper Clips, Screws And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 3 clips, 4 screws and 4 bolts.
4. Detach the 10 claws, disconnect the No. 4 engine room wire connector and remove the bumper cover.

  Fig 4: Identifying Protective Tape Around Bumper Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. W/ Headlight Cleaner System:
  Disconnect the headlight cleaner hose and remove the bumper cover.

  Fig 5: Identifying Headlight Cleaner Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT BUMPER ENERGY ABSORBER
1. Remove the energy absorber.
Fig 6: Identifying Front Bumper Energy Absorber
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT BUMPER REINFORCEMENT SUBASSEMBLY
1. Remove the 6 nuts and reinforcement.
Fig 7: Identifying Front Bumper Reinforcement Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT NO. 2 BUMPER EXTENSION SUBASSEMBLY LH
1. Remove the 4 nuts and bumper extension.
REMOVE FRONT NO. 2 BUMPER EXTENSION SUBASSEMBLY RH
HINT:

Use the same procedures described for the LH side.

Fig 8: Identifying Front No. 2 Bumper Extension Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT BUMPER SIDE SUPPORT LH
1. Remove the 2 screws.
2. Detach the 3 clips and remove the side support.
REMOVE FRONT BUMPER SIDE SUPPORT RH
HINT:

Use the same procedures described for the LH side.

Fig 9: Identifying Front Bumper Side Support Clips And Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEADLIGHT ASSEMBLY LH (See DISASSEMBLY )
REMOVE HEADLIGHT ASSEMBLY RH
HINT:

Use the same procedures described for the LH side.
REMOVE FRONT UPPER CENTER BUMPER RETAINER
1. Remove the 3 bolts and bumper retainer.

  Fig 10: Identifying Front Upper Center Bumper Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
