Tire And Wheel System: Inspection

  1. INSPECT TIRE
    1. Check the tires for wear and proper inflation pressure.

      Cold tire inflation pressure for USA, CANADA

      TIRE PRESSURE SPECIFICATION

      Tire size Front kPa (kgf/cm2 , psi) Rear kPa (kgf/cm2 , psi)
      P245/55R19 103S
      P245/65R17 105S      		 210 (2.1, 30) 210 (2.1, 30)
      210 (2.1, 30) 210 (2.1, 30)

      When driving under the above vehicle conditions at sustained high speeds above 160 km/h (100 mph), in countries where such speeds are permitted by law, inflate the front and rear tires to 240 kPa (2.4 kgf/cm2 , 35 psi) provided that it does not exceed the maximum cold tire inflation pressure molded on the tire sidewall.

      Cold tire inflation pressure for MEXICO

      TIRE PRESSURE SPECIFICATION TABLE

      Tire size Front kPa (kgf/cm2 , psi) Rear kPa (kgf/cm2 , psi)
      P245/55R19 103S
      P245/65R17 105S      		 4 passengers or less 210 (2.1, 30) (1)
      220 (2.2, 32) (2)      		 210 (2.1, 30) (1)
      220 (2.2, 32) (2)
      5 passengers or more 210 (2.1, 30) (1)
      220 (2.2, 32) (2)      		 230 (2.3, 33) (1)
      240 (2.4, 35) (2)
      (1) For driving under 160 km/h (100 mph)

      (2) For driving at 160 km/h (100 mph) or over
    2. Using a dial indicator, check the runout of the tires.

      Tire runout: 1.4 mm (0.055 in.) or less

      Fig 1: Checking Runout Of Tires Using Dial Indicator
      G04977810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ROTATE TIRES
    1. Rotate the tires as shown below (A). If the vehicle is equipped with a grand spare tire, rotate the tires as shown below (B).
      Fig 2: Rotating Tires
      G04977811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT WHEEL BALANCE
    1. Check and adjust the off-the-car balance.

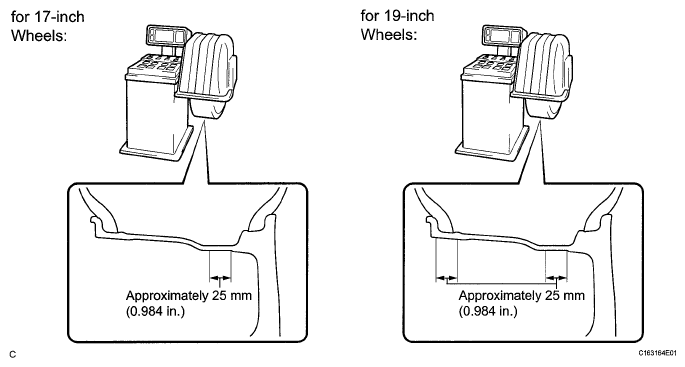

      Fig 3: Adjusting Wheel Balance
      G05417563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Imbalance after adjustment: 8.0 g (0.018 1b.) or less

    NOTE:
    • Remove dirt, oil, and water from the surface where the balance weight is to be adhered with a cleaning detergent.
    • Do not touch the sticking surface of the tape.
    • Adhere the sticking type balance weight to the flat position.
    • Push the balance weight securely with a finger to adhere it to the indicated position.
    • Do not reuse balance weights.

    HINT:

    • For 19-inch wheels both inner side and outer side balance weight are sticking type.
    • For 17-inch wheels the inner side balance weight should be installed by clipping it to the rim.
    • If necessary, check and adjust wheel balance using an on-the-car balancer.
  4. INSPECT FRONT AXLE HUB BEARING LOOSENESS

    HINT:

    See ON-VEHICLE INSPECTION .

  5. INSPECT REAR AXLE HUB BEARING LOOSENESS (for 2WD)

    HINT:

    See ON-VEHICLE INSPECTION .

  6. INSPECT REAR AXLE HUB BEARING LOOSENESS (for 4WD)

    HINT:

    See ON-VEHICLE INSPECTION .

  7. INSPECT FRONT AXLE HUB RUNOUT

    HINT:

    See ON-VEHICLE INSPECTION .

  8. INSPECT REAR AXLE HUB RUNOUT (for 2WD)

    HINT:

    See ON-VEHICLE INSPECTION .

  9. INSPECT REAR AXLE HUB RUNOUT (for 4WD)

    HINT:

    See ON-VEHICLE INSPECTION .
