Curtain Shield Airbag Assembly: Removal

HINT:

  1. PRECAUTION
    CAUTION: Be sure to read "PRECAUTION" thoroughly before servicing (See PRECAUTION  ).
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for at least 90 seconds after disconnecting the cable to prevent airbag deployment.
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  3. REMOVE REAR CENTER SEAT ASSEMBLY
  4. REMOVE REAR SEAT HEADREST ASSEMBLY (for LH Side)  (See REMOVAL )
  5. REMOVE REAR SEAT TRACK BRACKET COVER LH  (See REMOVAL )
  6. REMOVE REAR OUTER TRACK BRACKET COVER LH  (See REMOVAL )
  7. REMOVE REAR INNER TRACK BRACKET COVER LH  (See REMOVAL )
  8. REMOVE REAR SEAT LEG SIDE COVER LH  (See REMOVAL )
  9. DISCONNECT REAR NO. 1 SEAT LOCK CABLE ASSEMBLY LH (w/ Remote Folding Function)  (See REMOVAL )
  10. REMOVE REAR NO. 1 SEAT ASSEMBLY LH  (See REMOVAL )
  11. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)  (See REMOVAL )
  12. REMOVE REAR SEAT TRACK BRACKET COVER RH  (See REMOVAL )
  13. REMOVE REAR OUTER TRACK BRACKET COVER RH  (See REMOVAL )
  14. REMOVE REAR INNER TRACK BRACKET COVER RH  (See REMOVAL )
  15. REMOVE REAR SEAT LEG SIDE COVER RH  (See REMOVAL )
  16. DISCONNECT REAR NO. 1 SEAT LOCK CABLE ASSEMBLY RH (w/ Remote Folding Function)  (See REMOVAL )
  17. REMOVE REAR NO. 1 SEAT ASSEMBLY RH  (See DISASSEMBLY )
  18. REMOVE FRONT DOOR SCUFF PLATE LH  (See REMOVAL )
  19. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH  (See REMOVAL )
  20. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH  (See REMOVAL )
  21. REMOVE FRONT PILLAR GARNISH LH  (See REMOVAL )
  22. REMOVE REAR DOOR SCUFF PLATE LH  (See REMOVAL )
  23. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH  (See REMOVAL )
  24. REMOVE LOWER CENTER PILLAR GARNISH LH  (See REMOVAL )
  25. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH  (See REMOVAL )
  26. REMOVE CENTER PILLAR GARNISH LH  (See REMOVAL )
  27. REMOVE FRONT DOOR SCUFF PLATE RH  (See REMOVAL )
  28. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH  (See REMOVAL )
  29. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH  (See REMOVAL )
  30. REMOVE FRONT PILLAR GARNISH RH  (See REMOVAL )
  31. REMOVE REAR DOOR SCUFF PLATE RH  (See REMOVAL )
  32. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH  (See REMOVAL )
  33. REMOVE LOWER CENTER PILLAR GARNISH RH  (See REMOVAL )
  34. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH  (See REMOVAL )
  35. REMOVE CENTER PILLAR GARNISH RH  (See REMOVAL )
  36. REMOVE DECK BOARD ASSEMBLY  (See REMOVAL )
  37. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY  (See REMOVAL )
  38. REMOVE NO. 2 DECK BOARD SUB-ASSEMBLY  (See REMOVAL )
  39. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)  (See REMOVAL )
  40. REMOVE REAR NO. 1 FLOOR BOARD (w/o Rear No. 2 Seat)  (See REMOVAL )
  41. REMOVE REAR SEAT SIDE COVER LH (w/ Rear No. 2 Seat)  (See REMOVAL )
  42. REMOVE DECK SIDE TRIM BOX LH  (See REMOVAL )
  43. REMOVE REAR SEAT SIDE COVER RH (w/ Rear No. 2 Seat)  (See REMOVAL )
  44. REMOVE JACK CARRIER SUPPORT
  45. REMOVE JACK CARRIER CUSHION  (See REMOVAL )
  46. REMOVE JACK ASSEMBLY  (See REMOVAL )
  47. REMOVE JACK CARRIER ASSEMBLY  (See REMOVAL )
  48. REMOVE DECK SIDE TRIM BOX RH  (See REMOVAL )
  49. REMOVE DECK FLOOR BOARD ASSEMBLY (w/o Rear No. 2 Seat)  (See REMOVAL )
  50. REMOVE REAR MAT  (See REMOVAL )
  51. REMOVE DECK FLOOR BOARD ASSEMBLY (w/ Rear No. 2 Seat)  (See REMOVAL )
  52. REMOVE REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)  (See REMOVAL )
  53. REMOVE NO. 1 DECK BOARD (w/o Rear No. 2 Seat)  (See REMOVAL )
  54. REMOVE NO. 1 DECK BOARD (w/ Rear No. 2 Seat)  (See REMOVAL )
  55. REMOVE REAR NO. 2 SEAT INNER BELT ASSEMBLY (w/ Rear No. 2 Seat)  (See REMOVAL )
  56. DISCONNECT REAR SEAT LAP TYPE BELT ASSEMBLY LH (w/ Rear No. 2 Seat)  (See REMOVAL )
  57. DISCONNECT REAR SEAT LAP TYPE BELT ASSEMBLY RH (w/ Rear No. 2 Seat)  (See REMOVAL )
  58. REMOVE REAR NO. 2 SEAT ASSEMBLY (w/ Rear No. 2 Seat)  (See REMOVAL )
  59. REMOVE REAR FLOOR FINISH PLATE  (See REMOVAL )
  60. REMOVE DECK SIDE TRIM COVER LH  (See REMOVAL )
  61. REMOVE DECK SIDE TRIM LH  (See REMOVAL )
  62. REMOVE SIDE TRIM COVER LH (w/o Rear Seat Entertainment System)  (See REMOVAL )
  63. REMOVE POWER OUTLET SOCKET BEZEL (w/ Rear Seat Entertainment System)  (See REMOVAL )
  64. REMOVE REAR COMBINATION LIGHT SERVICE COVER LH  (See REMOVAL )
  65. REMOVE REAR POWER POINT SOCKET ASSEMBLY  (See REMOVAL )
  66. REMOVE REAR POWER OUTLET SOCKET COVER  (See REMOVAL )
  67. REMOVE REAR DECK TRIM COVER (w/o Remote Folding Function)  (See REMOVAL )
  68. REMOVE RECLINING REMOTE CONTROL LEVER BEZEL LH (w/ Remote Folding Function)  (See REMOVAL )
  69. REMOVE ROPE HOOK ASSEMBLY (for LH Side)  (See REMOVAL )
  70. REMOVE NO. 2 DECK SIDE TRIM HOOK  (See REMOVAL )
  71. REMOVE FRONT DECK SIDE TRIM COVER LH  (See REMOVAL )
  72. DISCONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH  (See REMOVAL )
  73. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH  (See REMOVAL )
  74. REMOVE QUARTER PILLAR GARNISH LH  (See REMOVAL )
  75. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH (w/o Power Back Door)  (See REMOVAL )
  76. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH (w/ Power Back Door)  (See REMOVAL )
  77. REMOVE REAR SEAT SIDE GARNISH CAP (w/o Rear Air Conditioning System)  (See REMOVAL )
  78. REMOVE REAR SEAT SIDE GARNISH CAP (w/ Rear Air Conditioning System)  (See REMOVAL )
  79. REMOVE DECK SIDE TRIM COVER RH  (See REMOVAL )
  80. REMOVE DECK SIDE TRIM RH  (See REMOVAL )
  81. REMOVE SIDE TRIM COVER RH (w/o Rear Automatic Air Conditioning System)  (See REMOVAL )
  82. REMOVE REAR ROOM TEMPERATURE SENSOR (w/ Rear Automatic Air Conditioning System)  (See REMOVAL )
  83. REMOVE REAR COMBINATION LIGHT SERVICE COVER RH  (See REMOVAL )
  84. REMOVE ROPE HOOK ASSEMBLY (for RH Side)  (See REMOVAL )
  85. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK  (See REMOVAL )
  86. REMOVE FRONT DECK SIDE TRIM COVER RH  (See REMOVAL )
  87. DISCONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH  (See REMOVAL )
  88. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH  (See REMOVAL )
  89. REMOVE QUARTER PILLAR GARNISH RH  (See REMOVAL )
  90. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH (w/o Rear No. 2 Seat)  (See REMOVAL )
  91. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH (w/ Rear No. 2 Seat)  (See REMOVAL )
  92. REMOVE ROOF CONSOLE BOX ASSEMBLY  (See REMOVAL )
  93. REMOVE VISOR BRACKET COVER (for LH Side)  (See REMOVAL )
  94. REMOVE VISOR ASSEMBLY LH  (See REMOVAL )
  95. REMOVE VISOR BRACKET COVER (for RH Side)  (See REMOVAL )
  96. REMOVE VISOR ASSEMBLY RH  (See REMOVAL )
  97. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/ EC Mirror)  (See REMOVAL )
  98. REMOVE NO. 1 ROOM LIGHT ASSEMBLY (for Standard)  (See REMOVAL )
  99. REMOVE NO. 1 ROOM LIGHT ASSEMBLY (for Independent Type)  (See REMOVAL )
  100. REMOVE NO. 2 ROOM LIGHT ASSEMBLY  (See REMOVAL )
  101. REMOVE TELEVISION BASE (w/ Rear Seat Entertainment System)  (See REMOVAL )
  102. REMOVE TELEVISION DISPLAY ASSEMBLY (w/ Rear Seat Entertainment System)  (See REMOVAL )
  103. REMOVE FRONT ASSIST GRIP SUB-ASSEMBLY (w/o Sliding Roof)  (See REMOVAL )
  104. REMOVE REAR ASSIST GRIP SUB-ASSEMBLY (w/o Sliding Roof)  (See REMOVAL )
  105. REMOVE ASSIST GRIP ASSEMBLY (w/ Sliding Roof)  (See REMOVAL )
  106. REMOVE ROOF HEADLINING TRIM CLIP STOPPER  (See REMOVAL )
  107. REMOVE SUN ROOF OPENING TRIM MOLDING (w/ Sliding Roof)
  108. REMOVE VISOR HOLDER  (See REMOVAL )
  109. REMOVE ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)  (See REMOVAL )
  110. REMOVE ROOF HEADLINING ASSEMBLY (w/ Sliding Roof)  (See REMOVAL )
  111. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY
    1. Disconnect the curtain shield airbag connector.
      NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
    2. Remove the 11 bolts.

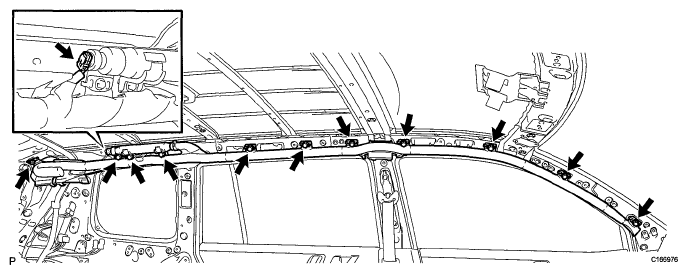

      Fig 1: Identifying Curtain Shield Airbag Connector Bolts
      G05419332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 11 hooks and remove the curtain shield airbag assembly.

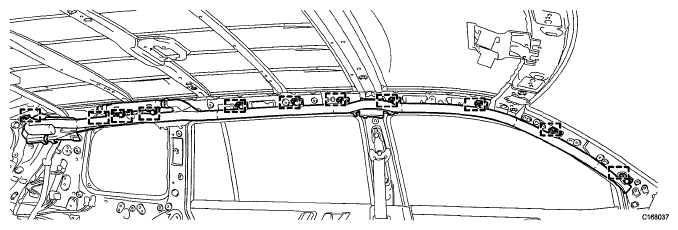

      Fig 2: Identifying Curtain Shield Airbag Assembly Hooks
      G05419333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
