REAR NO. 1 SEAT ASSEMBLY (for LH Side): Installation

INSTALL REAR NO. 1 SEAT ASSEMBLY
1. Temporarily install the 2 bolts on the front side of the seat.

  Fig 1: Identifying Bolts On Front Side Of Seat
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Temporarily install the 3 bolts on the rear side of the seat.

  Fig 2: Identifying Bolts On Rear Side Of Seat
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the rear No. 1 seat assembly with the 5 bolts.
  Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)
CONNECT REAR NO. 1 SEAT LOCK CABLE ASSEMBLY (w/ Remote Folding Function)
1. Remove the rear seat reclining control cable from the carpet hole.

  Fig 3: Connecting Rear No. 1 Seat Lock Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the rear seat reclining control cable as shown below.
3. Connect the rear No. 1 seat lock cable assembly as shown below.

  Fig 4: Connecting Rear No. 1 Seat Lock Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Engage the 2 claws and connect the rear No. 1 seat lock cable assembly as shown below.

  Fig 5: Engaging Claws & Connecting Rear No. 1 Seat Lock Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Return the seatback to the upright position.

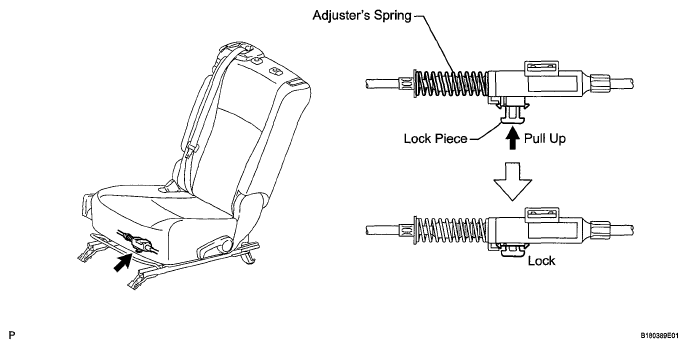

6. Pull up the adjuster's lock piece to lock it as shown below.

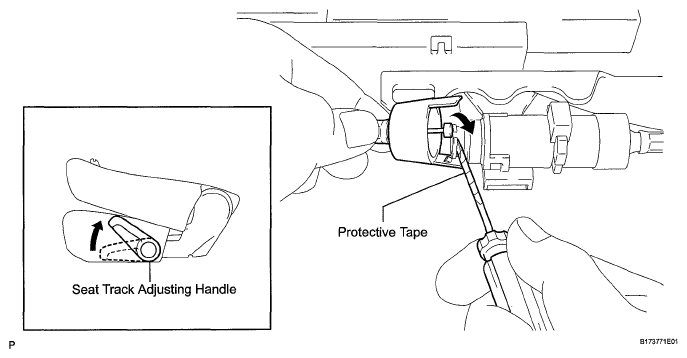

  Fig 6: Pulling Up Adjuster Lock Piece To Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: When pressing the lock piece, make sure the adjuster's spring is not compress.
INSPECT REAR SEAT SLIDE ADJUSTER LOCK
1. Check that the left and right adjusters lock simultaneously when sliding the seat.
2. If the left and right adjusters do not lock simultaneously, adjust by loosening the bolts securing the seat.
INSTALL REAR SEAT LEG SIDE COVER
1. Engage the clip.
2. Engage the 3 claws and install the rear seat leg side cover.
INSTALL REAR INNER TRACK BRACKET COVER
1. Engage the 4 claws and install the rear inner track bracket cover.

  Fig 8: Identifying Claws On Rear Inner Track Bracket Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR OUTER TRACK BRACKET COVER
1. Engage the 4 claws and install the rear outer track bracket cover.

  Fig 9: Identifying Claws On Rear Outer Track Bracket Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT TRACK BRACKET COVER
1. Engage the 8 claws and install the 2 rear seat track bracket covers.

  Fig 10: Identifying Claws On 2 Rear Seat Track Bracket Covers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT HEADREST ASSEMBLY
1. Install the rear seat headrest assembly as shown below.

  Fig 11: Identifying Rear Seat Headrest Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR CENTER SEAT ASSEMBLY
